6. Wireless Remote Control

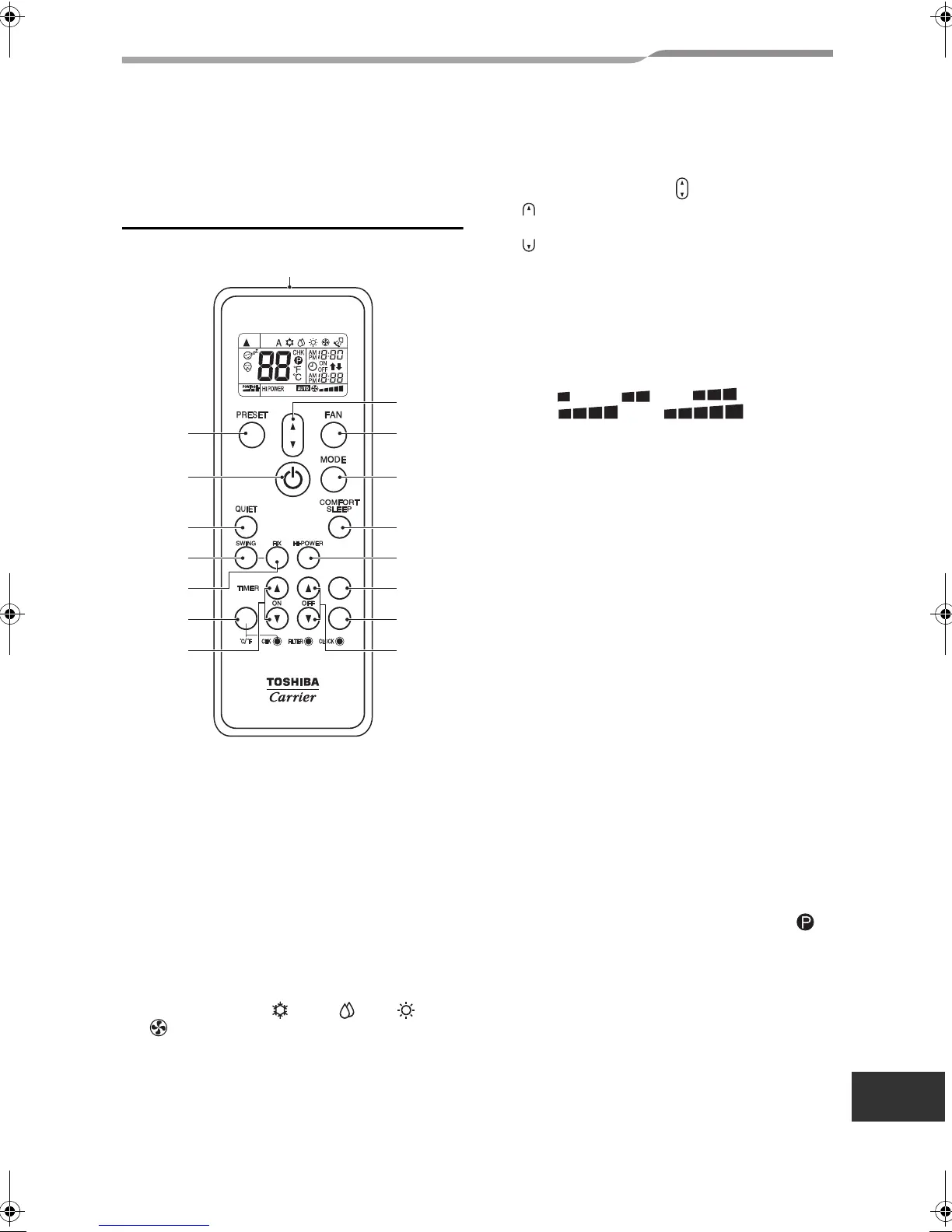

6-1. Part Names of Remote Control
Wireless remote control and its
functions
1 Infrared signal emitter
Transmits a signal to the indoor unit.
2 ON/OFF button
Press the button to start operation.
(A receiving beep is heard.)
Press the button again to stop operation.
(A receiving beep is heard.)
If no receiving sound is heard from the indoor unit,
press the button twice.
3 MODE button
Use to select desired operation mode.
Each time the button is pressed, a mode is selected
in a sequence that illuminates from A : Auto
changeover control, : Cool, : Dry, : Heat,
: Fan only, and back to A. (A receiving beep is
heard.)
4 Temperature button ( )
5 FAN button
Use to select desired fan speed. When AUTO is
selected, the fan speed is automatically adjusted
according to the room temperature.
The desired fan speed can be also manually selected
from among five settings.
(LOW , LOW
+
, MED ,
MED
+
, HIGH )
(A receiving beep is heard.)
6 SWING button
Use to select automatic swing or fixed louver
position.
7 FIX button
Use to adjust the louver direction.
(A receiving beep is heard.) While this button is kept
depressed, the receiving tone continuously sounds.
8 OFF TIMER button
Use to set the OFF timer.
9 ON TIMER button
Use to set the ON timer.
10SET button
Use to reserve time settings.
(A receiving beep is heard.)
11CLR button
Use to cancel ON timer and OFF timer. (A receiving
beep is heard.)
12Hi POWER button
Use to start the high power operation.
This function is not operated group control.
13PRESET button
Use to change the operation mode to the preferred
operation mode memorized previously. To memorize
the operation mode, press this button for at least 3
seconds during the preferred operation mode. is
displayed and the operation mode is memorized.
CLR
SLEEP
SET
TEMP
13
14
9
6
16
2
7
5
4
3
15
12
11
8
1
1
.........
...
The set temperature is increased up to 86
°F (30 °C).
.........
...
The set temperature is dropped down to 62
°F (17 °C). (A receiving beep is heard.)
TEMP
TEMP
TEMP
10-EN
