18
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
A190339

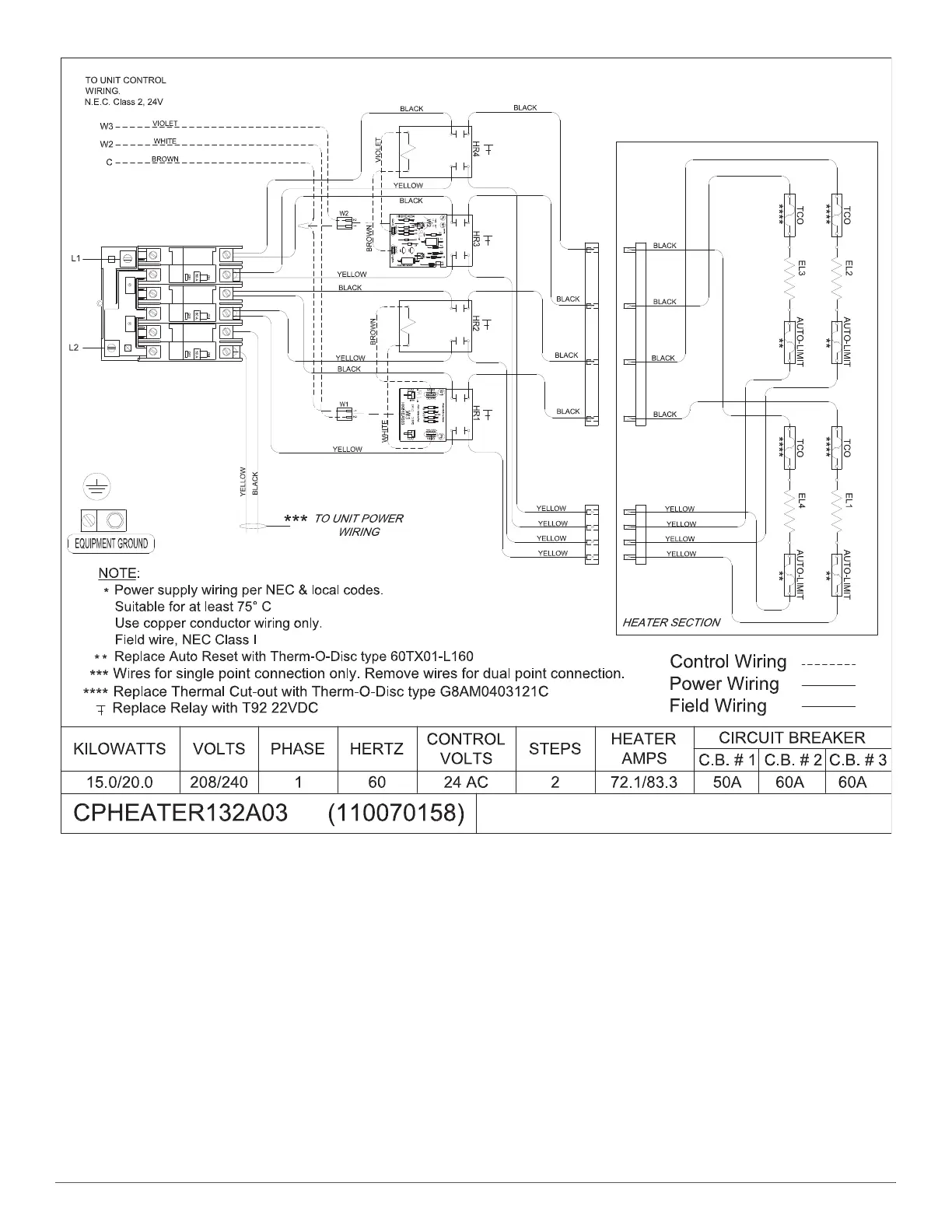

Fig. 21 – CPHEATER132A03 Wiring Diagram
