26
WIRING DIAGRAMS (cont.)
*
* C wire not needed for batteries
** Remove jumper when using split power (Indoor and Outdoor units
utilize separate transformers).
Y1
Y/Y2
**
A12238

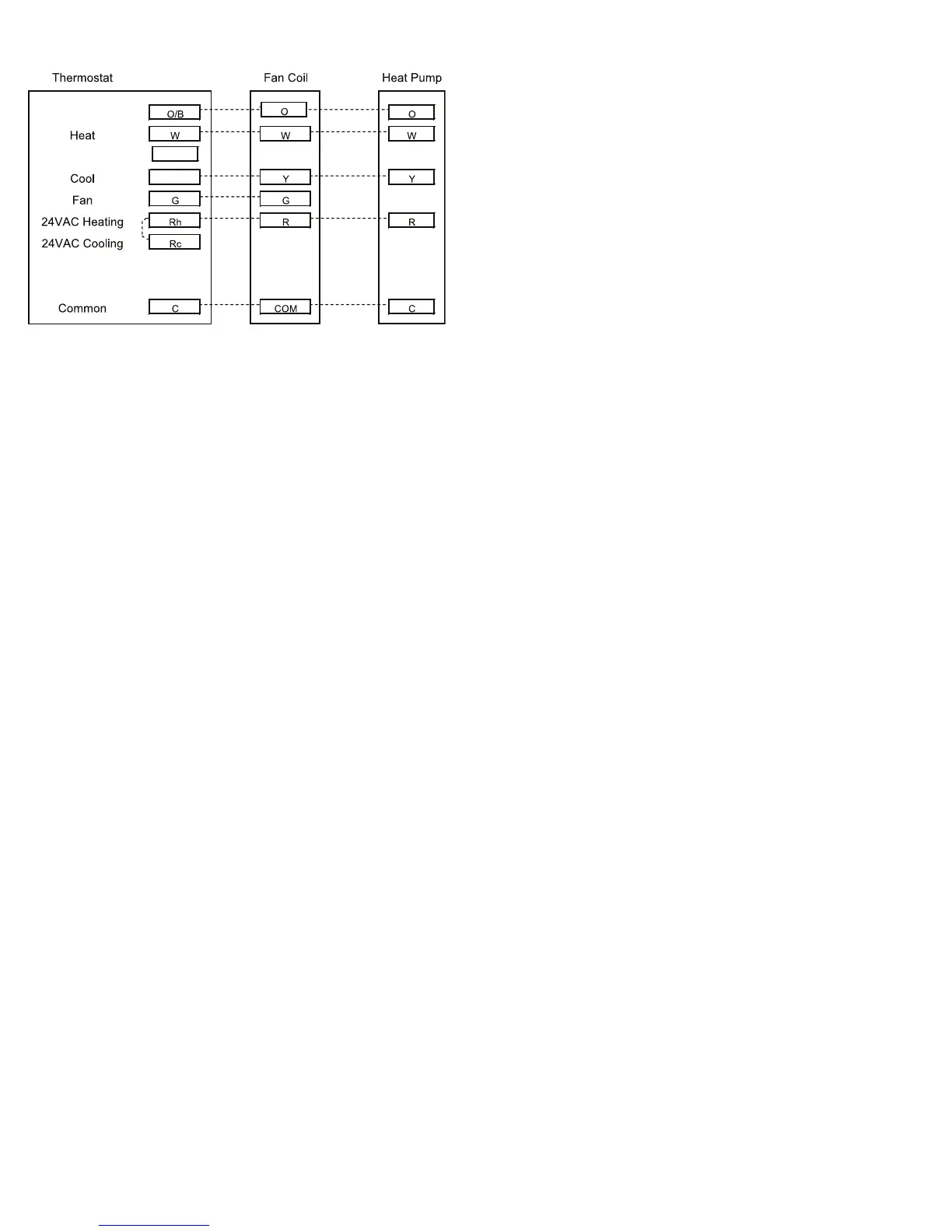

Fig. 6 -- Single Speed HP Thermostat Typical Installation
