Carrier TC-PHP - FV;FK Fan Coil W;2- - Stage Heat Pump

31
WIRING DIAGRAMS (cont.)
Fan Coil Heat Pump
OO
RVS Cooling
O/B
W1 W1
Heat Stage 3 W W2
Heat/Cool Stage 1
Y1
Y1 Y1
Heat/Cool Stage 2 Y/Y2 Y/Y2 Y/Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
24VAC Common C C C
Thermostat
*Remove jumper when using split power (Indoor and Outdoor units
utilize separate transformers).
*
A12243

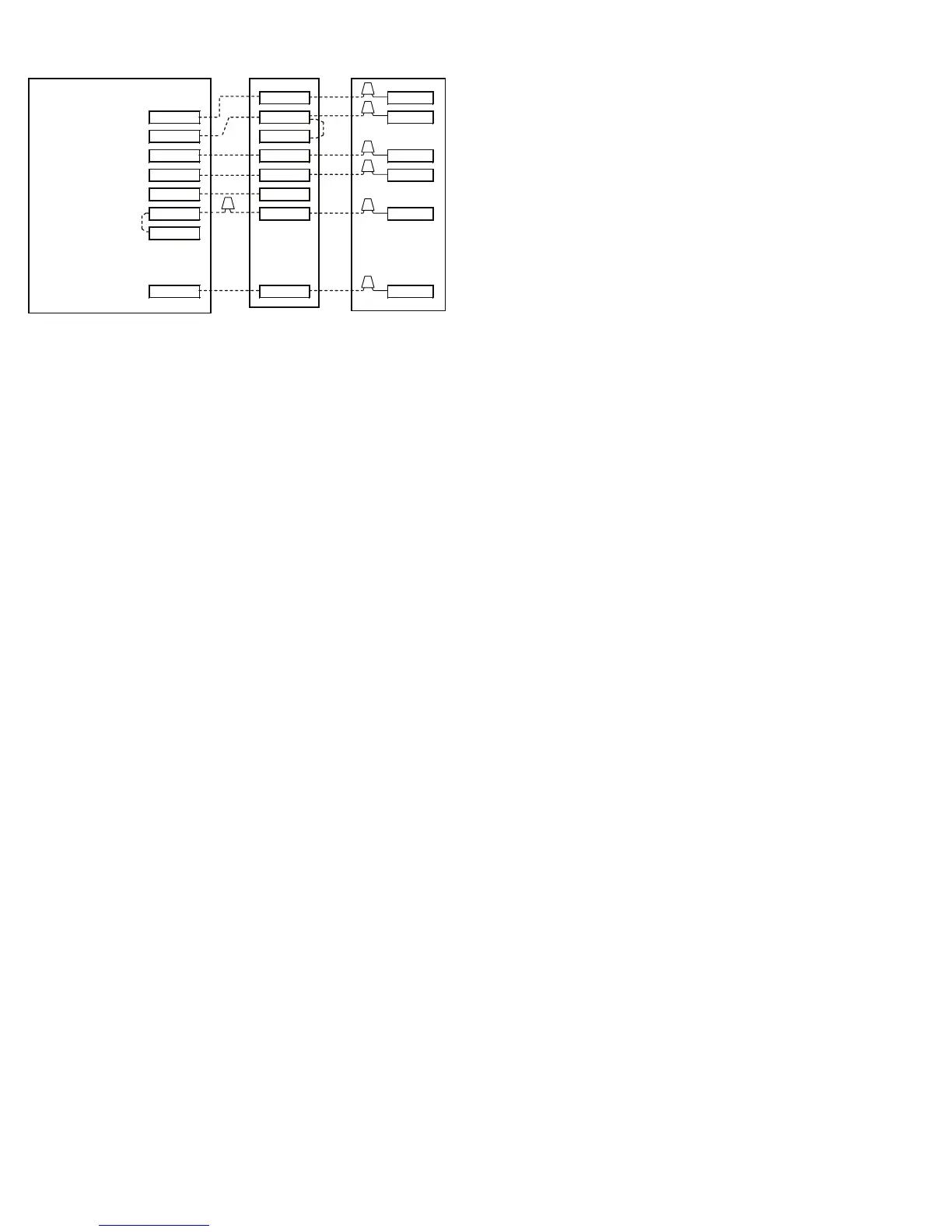

Fig. 11 -- FV/FK Fan Coil w/2--Stage Heat Pump
