Carrier Touch Pilot Control Series User Manual

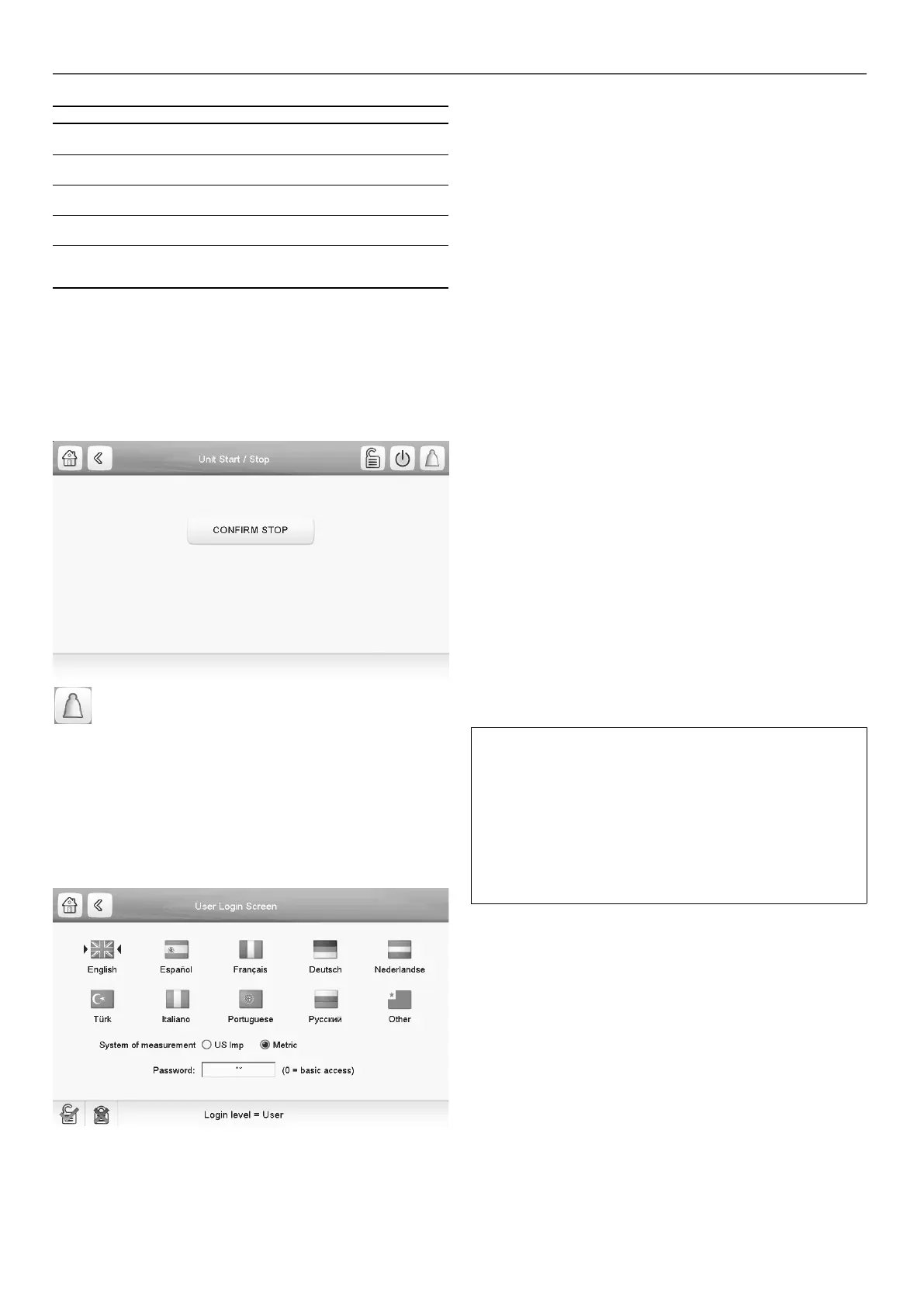

Unit start/stop screen (operating modes)
Local On
Local On: The unit is in the local control mode and
allowed to start.
Local Schedule
Local Schedule: The unit is in the local control mode
and allowed to start if the period is occupied.
Network
Network: The unit is controlled by network commands
and allowed to start if the period is occupied.
Remote
Remote: The unit is controlled by external commands
and allowed to start if the period is occupied.
Master
Master: The unit operates as the master in the master/
slave assembly and allowed to start if the period is
occupied.
To start the unit
• Press the Start/Stop button.
• Select the required Machine Mode.
• The Welcome screen will be displayed.
To stop the unit
• Press the Start/Stop button.
• Conrm the unit shutdown by pressing Conrm Stop or
cancel the unit shutdown by pressing the Back button.
The bell located in the upper-right part of the screen lights
when any fault is detected (see section 9.1).
6.5 - Display settings
The User Login screen allows the user to do any of the following:
- Select the language of the controller.
- Change the system of measurement (imperial or metric).
- Gain access to more control options.
To access the User Login screen, press the Login button in the
upper-right corner of the Synoptic screen.
Legend
1. Cursor indicating the selected language
2. Logged-in button
3. Logged-off button
4. Password dialog box
5. System of measurement: Metric/Imperial
6.6 - Display language
Display language can be modied in the User Login Screen on
the user interface.
To change a display language
• Press the Login button to open User Login Screen.
• Select the new language of the display.
• Press the Logged-in button to save your changes or the
Logged-off button to exit the screen without making
modications.
The control system allows users to add new languages to the
control. To learn more about language customization, please
contact your local service representative.
6.7 - System of measurement
The control offers the possibility of selecting the system of
measurement displayed on the user interface (metric / imperial).
To change a system of measurement
• Press the Login button to open User Login Screen.
• Select the system of measurement (metric or imperial).
• Press the Logged-in button to save your changes or the
Logged-off button to exit the screen without making
modications.
6.8 - User login
Only logged-in users can access congurable unit parameters.
By default, user password is “11”.
To log in as user
• Press the Login button to open User Login Screen.
• Press the Password box. A dialog box appears.
• Provide the password (11) and press OK.
• The User Login screen appears.
• Press the Logged-in button to save your changes or the
Logged-off button to exit the screen without making
modications.
NOTE: You may also leave the User Login screen by pressing
the Back button. Your changes will be saved.
Security access settings
- User-level security ensures that only authorised users
are allowed to modify critical unit parameters.
- Only logged-in users are allowed to access the
Conguration menu.
- It is strongly recommended to change the default
password of the user interface to exclude the possibility
of changing any parameters by an unqualied person.
- Only people qualied to manage the unit should be
familiarized with the password.
6.9 - Password change
User password can be modied in the User Conguration menu.
To change your password
• Go to the Main Menu.
• Navigate to the Conguration menu (logged-in users only)
and select User Conguration (USERCONF).
• Select the User Password box and provide the new
password.
• Press OK. The User Conguration screen appears.
• Press the Save button to save your changes or the Cancel
button to exit the screen without making modications.
B
C
D
E
F
6 - SETTING UP TOUCH PILOT CONTROL
12
