Installing the UPC Open
UPC Open Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Integration Guide All rights reserved
11
The following is a list of wireless supported devices:
• Standard
• Plus
• Adapter
• Motion/Lux Sensor
• Window/Door Sensor
To configure the control program for the desired user interaction with the sensor, see the Wireless Sensors
Application Guide. For detailed instructions, see the Wireless Sensors Installation Guide.
To install the Wireless Adapter for wireless sensors
WARNING Do not apply line voltage (mains voltage) to the Wireless Adapter.
To wire, power, and mount the Wireless Adapter
NOTES
• The Wireless Adapter requires a 24 Vac or 24 Vdc power supply. It is not powered by the Rnet.
• If the Wireless Adapter will be:
○ Daisy-chained on the Rnet with ZS sensors or an Equipment Touch, use the standard 4-conductor Rnet
wiring.
○ The only device on the Rnet, you can use a 3-conductor cable instead of the standard 4-conductor Rnet
cable.
1 Turn off the power to the controller that the Wireless Adapter will be wired to.

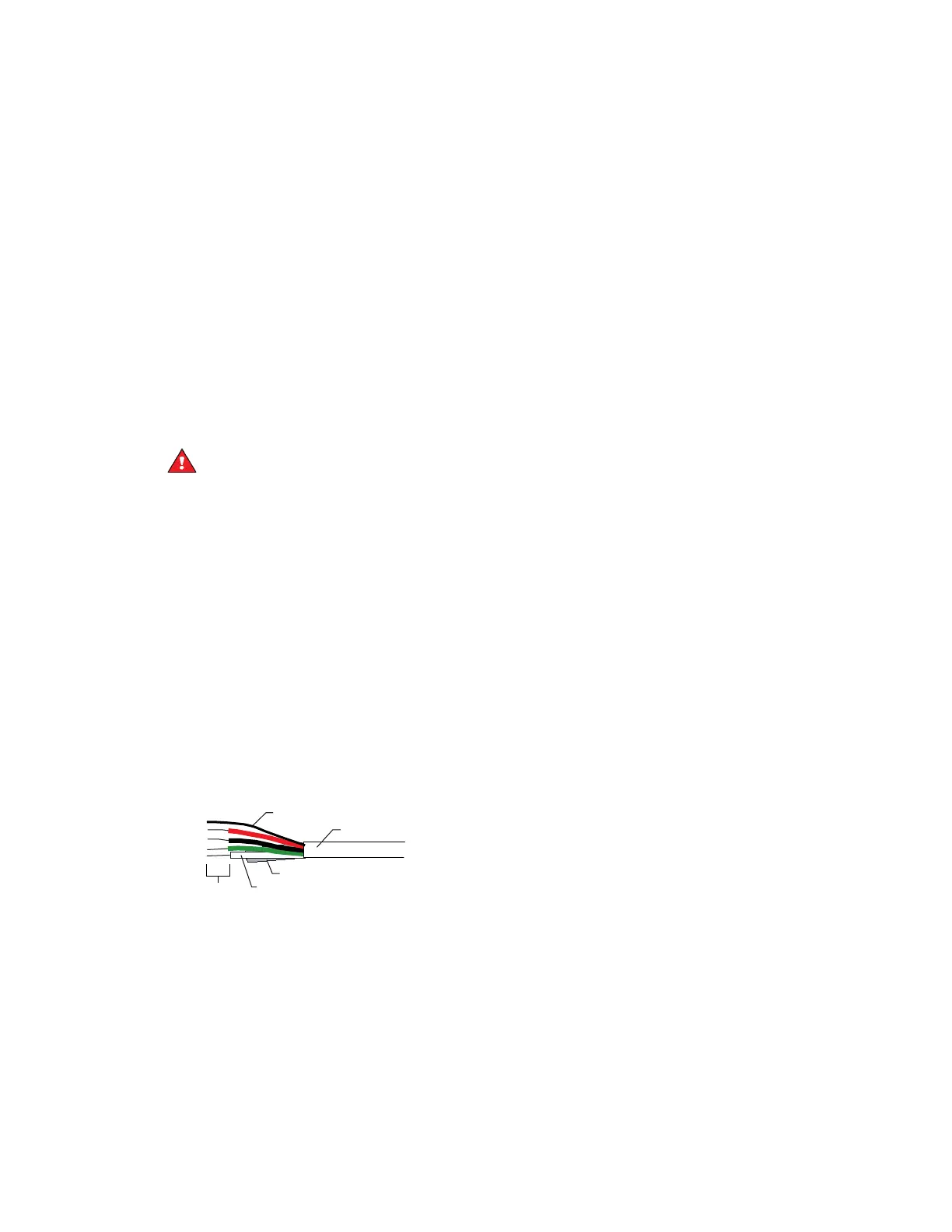

2 Partially cut, then bend and pull off the outer jacket of the Rnet cable(s). Do not nick the inner insulation.
