Single Point Linkage
The UPC Open receives data from other Open controllers when they are installed as part of an i-Vu® Control
System. The data transfer may take the form of Single Point Linkage (SPL), which is automatic, or Device Address
Binding, which you must configure.
Currently, the UPC Open implements Single Point Linkage (SPL) for 3 variables:
• System Cool Demand Level
•
System Heat Demand Level
• System Outside Air Temperature
Network Points for which SPL has been implemented are displayed in Field Assistant and the i
-Vu® interface on
the Properties page > Network Points tab.
The following example involves outside air temperature. System Heat & Cool Demand Level behaves similarly,
except that their usage involves a specific application loaded on a Universal Controller Open. See UC Open
Installation Guide for additional information. In either case, note that the BACnet type and instance numbers
specified in the Address field of these variables have been predefined.

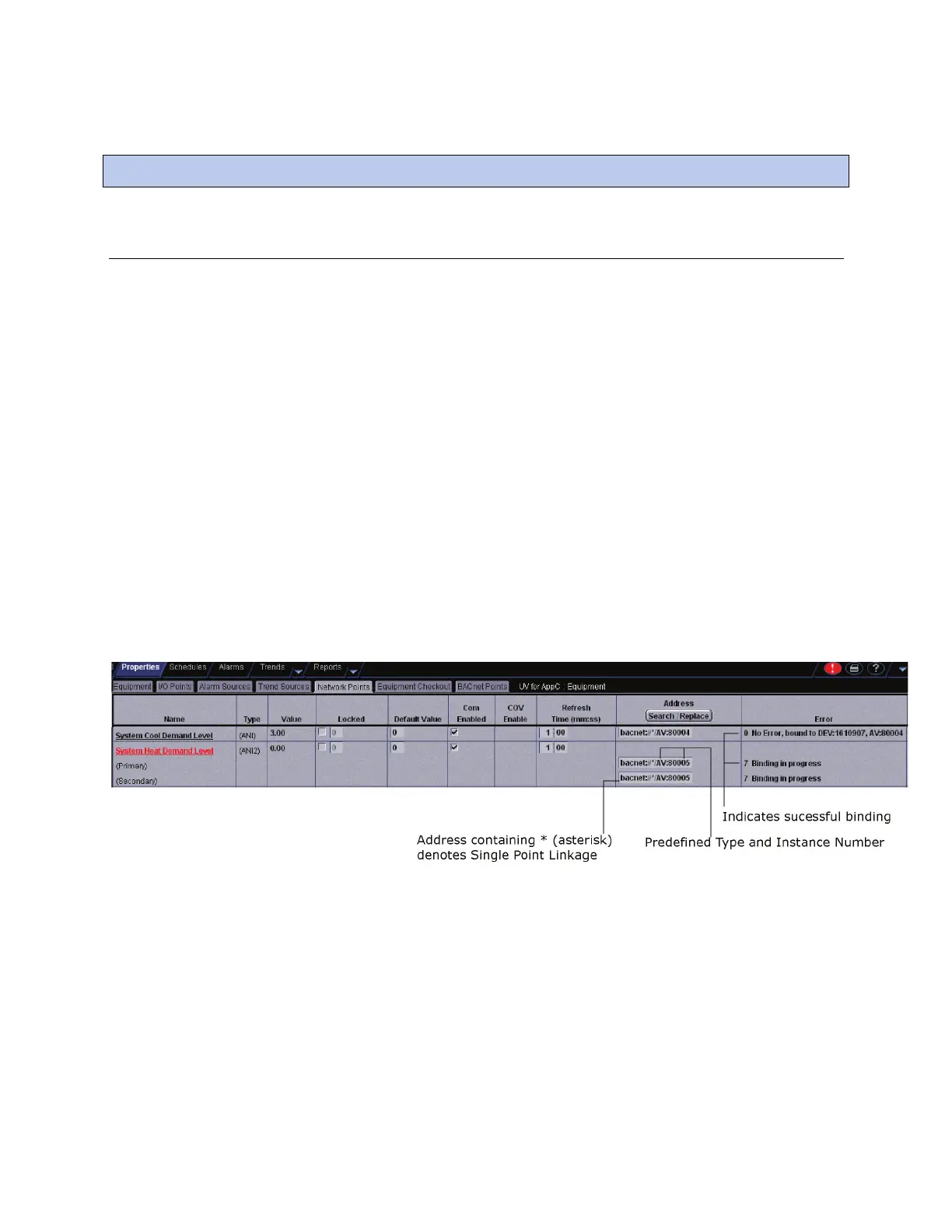

Network variables for which SPL is used are easily identified on the Properties page > Network Points tab. The
asterisk in the BACnet address invokes the SPL function. These addresses cause the controller to issue a BACnet
“who has” command for this variable. The controller binds to the closest of the first 5 devices from which it
receives a valid response.
