Carver Pump GH - Exploded View - Frame Mounted (Shown with Mechanical Seal)

I-120
GH Pump 120 – 16.02.EN
29

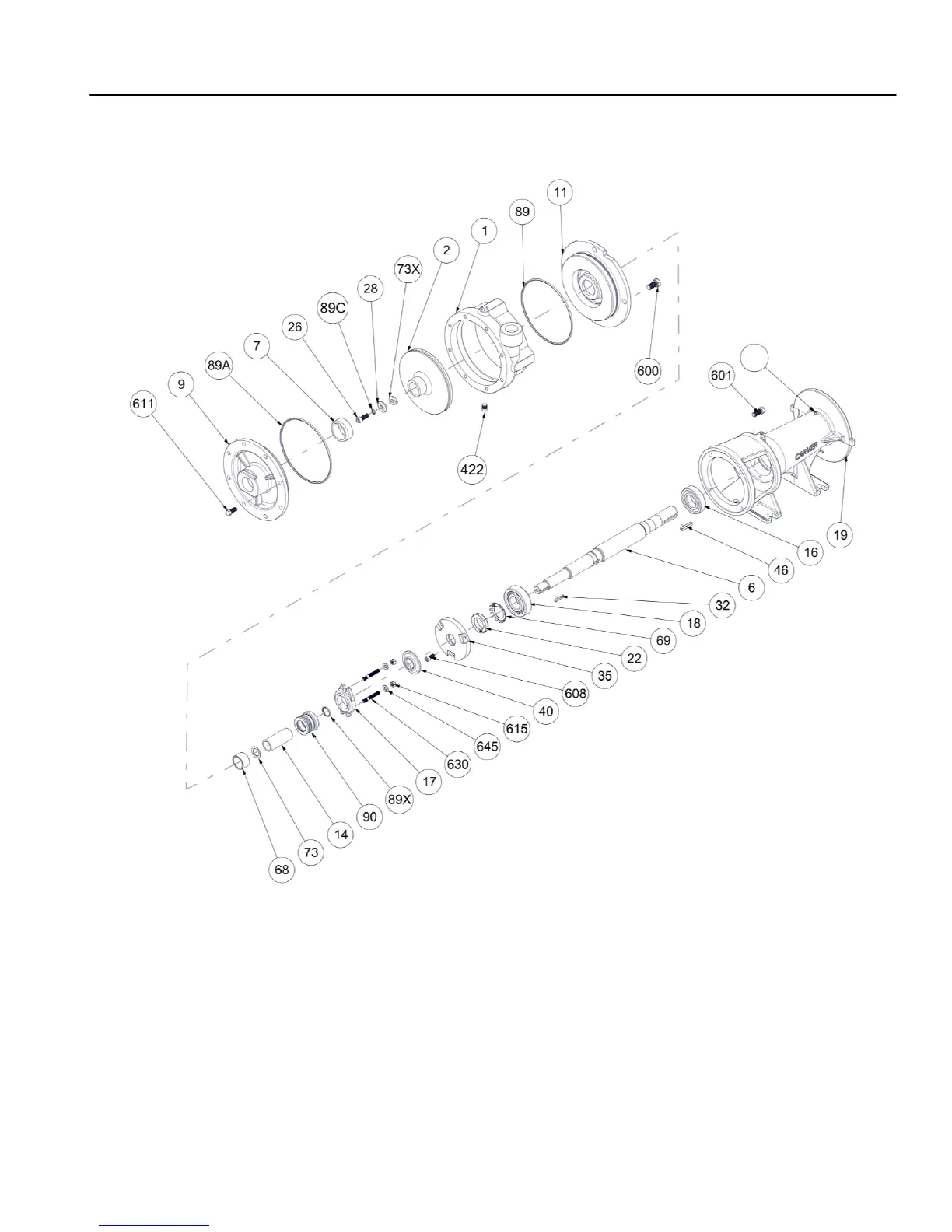

Figure 9. Exploded View – Frame Mounted (Shown with Mechanical Seal)
NOTE
The following items are not shown:
42 Coupling
131 Coupling Guard
131A Splash Guard, Bearing Frame
200 Motor
