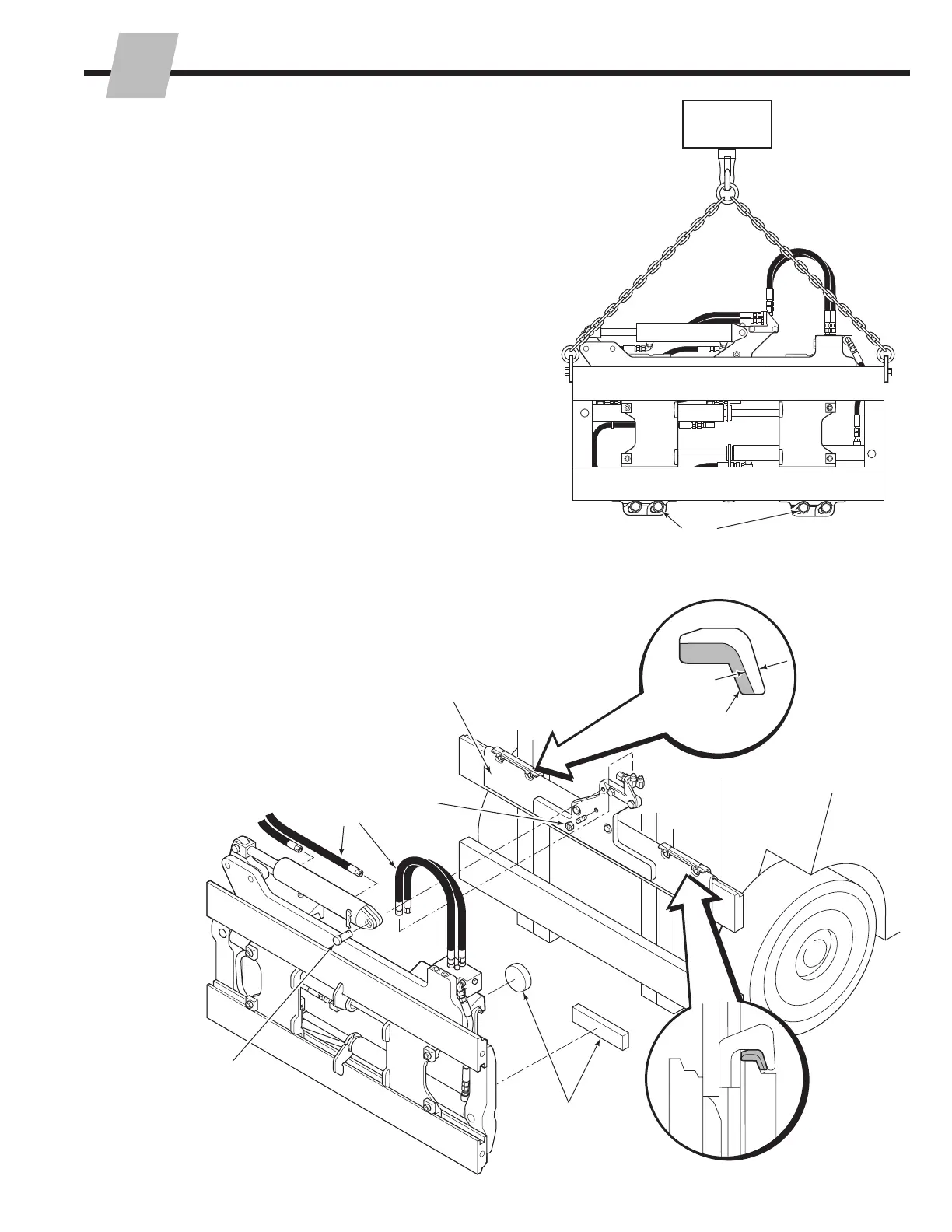

5.2-3 Carriage Bearing Service
1 Remove the forks from the attachment.
2 Remove the clevis pin from the base end of the sideshift
cylinder.
3 Disconnect the hose ends from the sideshift cyinder
and anchor plate fittings. Tag hoses for reassembly.
4 Remove the setscrew from the anchor plate.
5 Remove the lower mounting hooks.
6 Attach a suitable overhead hoist to the fork positioner
carriage. Remove the carriage from the truck. The
anchor bracket will remain on the truck carriage.
7 Measure the exposed thickness of the upper and lower
bearings. If the thickness is less than 1/16 in. (1.5 mm),
replace as required.
8 For reassembly, reverse the above procedures except
for the following special instructions:
• Clean the upper hook and lower bearing pockets of
any built-up grease.
• Clean all parts prior to reassembly.
• Install the lower mounting hooks as described in
section 5.1 step 6.
• After the fork positioner is reassembled and mounted
on the truck, apply chassis grease to the bearing
grease fittings. See section 5.2-1.
