Case IH 91 Series - Install the Left and Right Steering Hoses

Chapter 3
12 Case IH 91xx, 92xx and 93xx Series SmarTrax™ Installation Manual
Install the Left and Right Steering Hoses

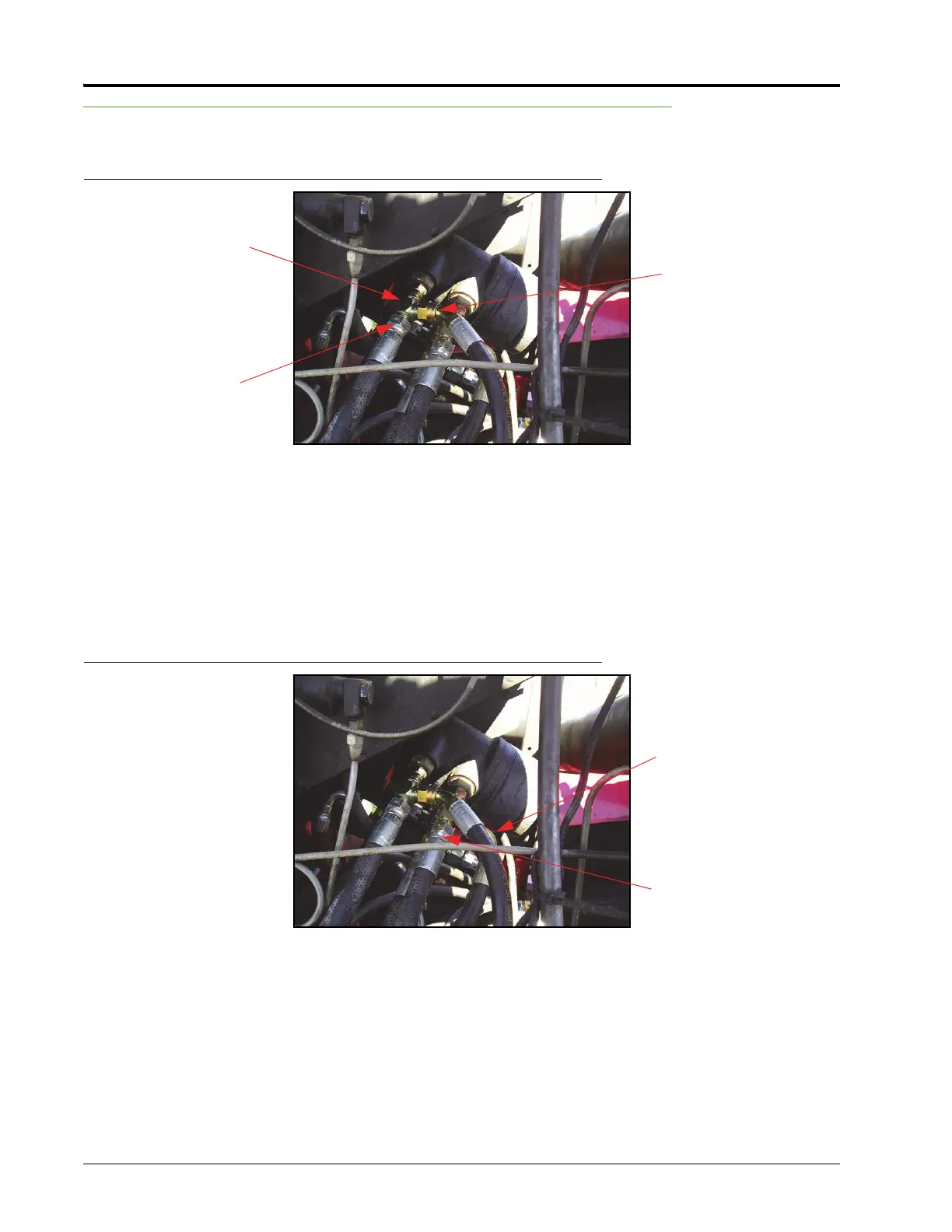

FIGURE 4. Left Steering Hoses Installed
1. Disconnect the existing left steer hose from the steering orbital.
2. Install a 10 JIC M/M/F run tee adapter fitting (P/N 333-0012-113) on the open port.
3. Connect the machine’s left steering hose to the straight end of the installed tee fitting.
4. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-900) on the 90° end of the installed tee
fitting.
5. Connect the straight end of the installed hydraulic hose to the fitting installed in Port A of the SmarTrax
valve.
FIGURE 5. Right Steering Hoses Installed
6. Disconnect the existing right steer hose from the steering orbital.
7. Install a M/M/F swivel run tee adapter fitting (P/N 333-0012-113) on the open port.
8. Connect the machine’s right steering hose to the straight end of the installed tee fitting.
9. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-900) on the 90° end of the installed tee
fitting.
10. Connect the straight end of the installed hydraulic hose to the fitting installed in Port B of the SmarTrax
valve.
Machine’s Existing
Left Steer Hose
Supplied Hose
(P/N 214-1000-900)
Supplied Tee Adapter
(P/N 333-0012-113)
Supplied Hose
(P/N 214-1000-900)
(Obscured From
View)
Machine’s Existing
Right Steer Hose
