Case IH 91 Series - Install the Load Sense Hoses

Chapter 3
14 Case IH 91xx, 92xx and 93xx Series SmarTrax™ Installation Manual
4. Install -12 JIC female to -10 JIC male reducer (P/N 333-0012-371) to 90 degree port on installed tee fitting.
5. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-900) on the installed reducer fitting.
6. Connect the straight end of the installed hydraulic hose to the fitting installed in Port T of the SmarTrax
valve.
Install the Load Sense Hoses

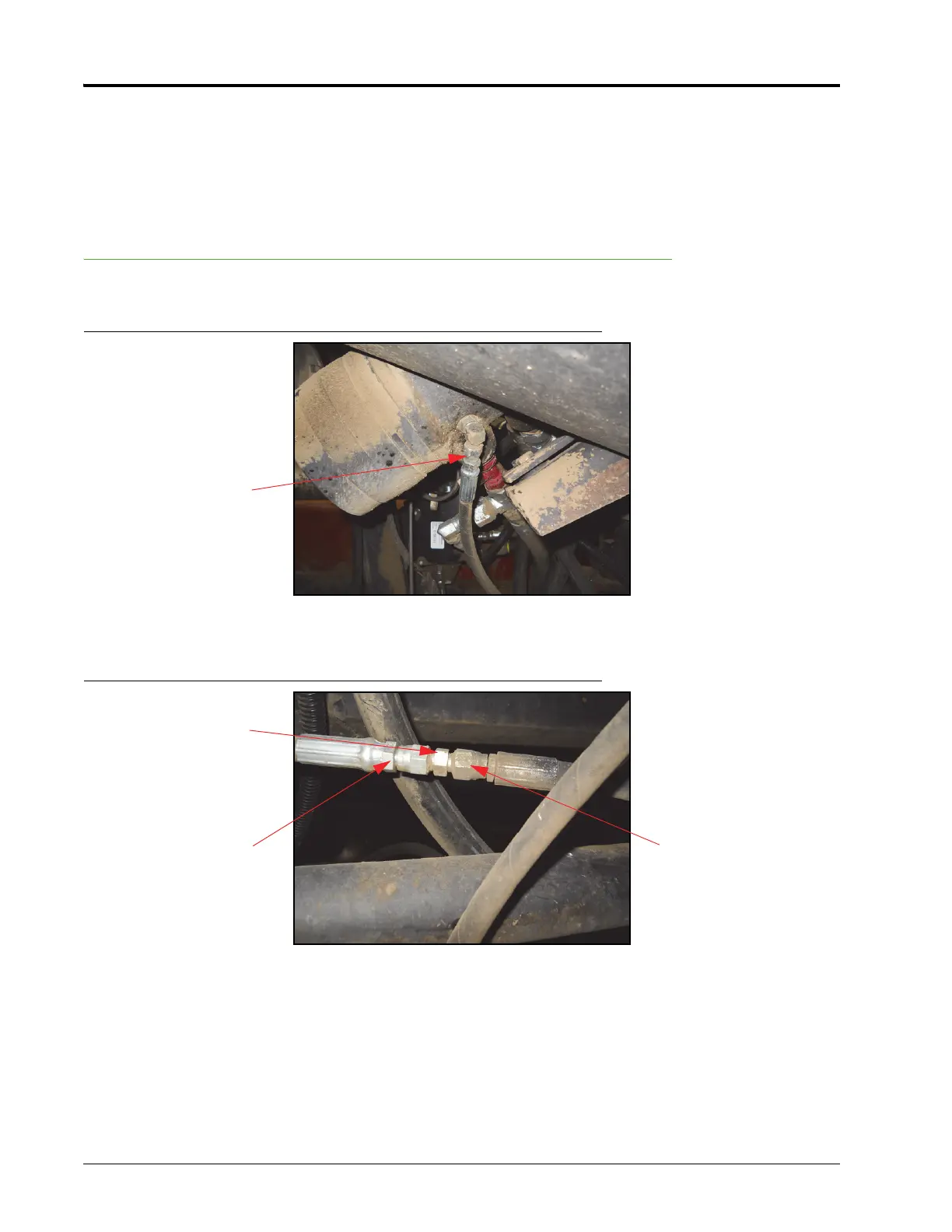

FIGURE 8. Load Sense Port on the Steering Orbital
1. Disconnect the original load sense hose from the steering orbital.
FIGURE 9. Load Sense Hoses Installed
2. Install the supplied fitting (P/N 333-0012-041) to the end of the hose that was just removed from the
steering orbital.
3. Connect the supplied hose (P/N 214-1000-192) to the installed fitting.
4. Connect the other end of the supplied hydraulic hose to the fitting installed in Port LSPV of the SmarTrax
valve.
5. Connect the supplied hose (P/N 214-1001-192) to the open steering orbital port.
6. Connect the opposite end of the supplied hydraulic hose to the fitting installed in Port LS STEER of the
SmarTrax valve.
Load Sense Hose
Supplied Hose
(P/N 214-1000-192)
Original Load Sense Hose
Supplied Fitting
(P/N 333-0012-041)
