4 - INSTRUMENTS/CONTROLS
60

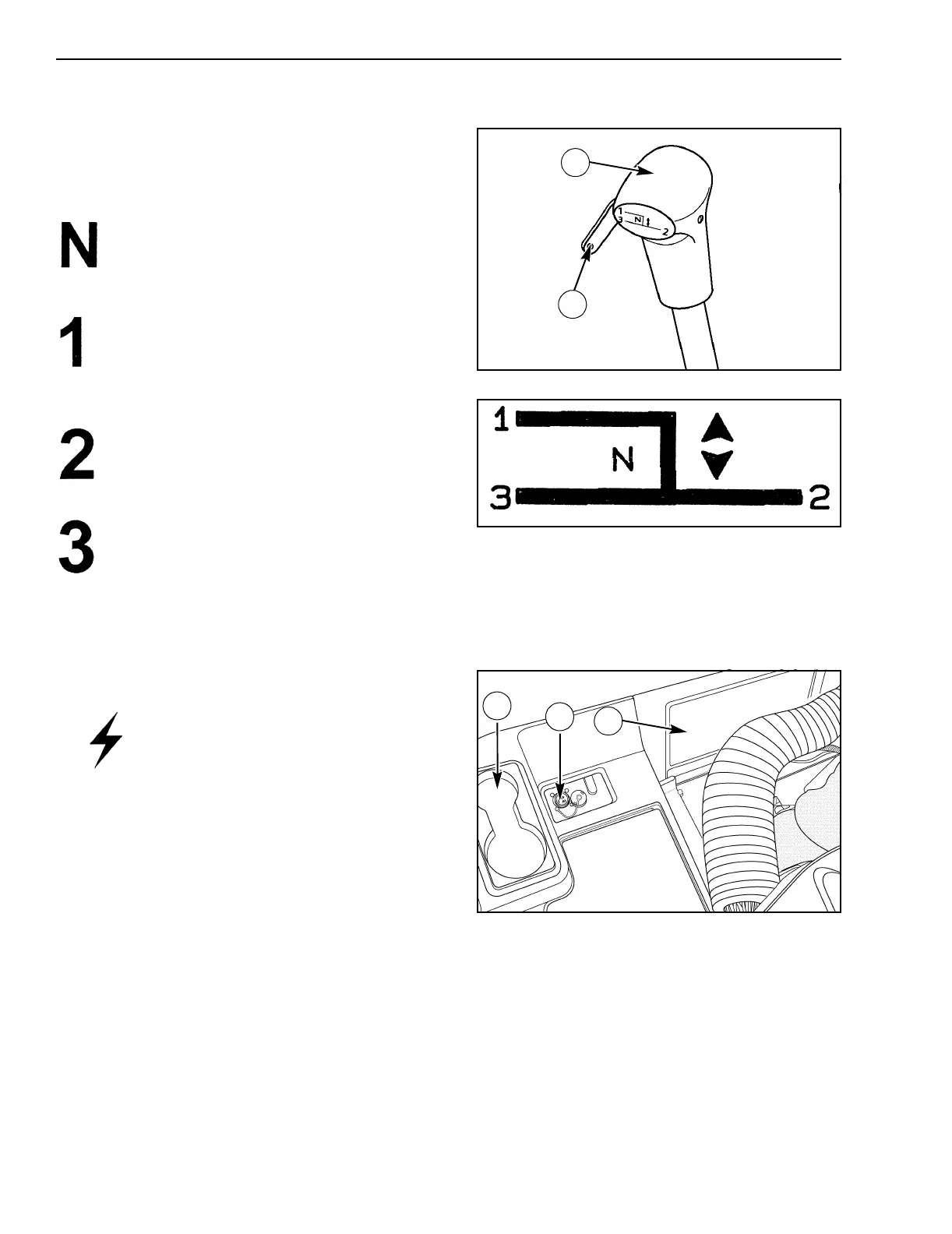

Right Panel
1. TRANSMISSION GEAR SHIFT LEVER - Use
this lever (1) to shift the gears in the
transmission. The engine must be running to
move the gear shift lever.
NEUTRAL - The NEUTRAL (N) position is
the center position. The GEAR SHIFT
HANDLE can only be lifted when the gear
shift lever is in NEUTRAL.
To shift the Combine transmission into First
Gear (1) put the gear shift lever in the
NEUTRAL position and pull up on the GEAR
SHIFT HANDLE. Move the gear shift lever
fully forward.
To shift the Combine transmission into
Second Gear (2) return the shift lever to the
NEUTRAL position, pull the gear shift lever
to the rear.
To shift the Combine transmission into Third
Gear (3) move the shift lever fully forward
from the NEUTRAL or the Second Gear
position.
2. GEAR SHIFT HANDLE (2) - used ONLY to shift
into First Gear.
3. BEVERAGE HOLDER
4. AUXILIARY ELECTRICAL OUTLET - This
outlet provides for connection of a CB
radio, FM radio, etc. The outlet contains a
B+ line (key in ACC or ON position); an
unswitched B+ line and a ground line. Fuse No. 4 is
for the unswitched B+ line and fuse No. 8 is for the
switched B+ line. Auxiliary power lines can be fused
as required up to 20 amps each. Use harness
187103A1 for connecting this terminal outlet to the
CB radio, FM radio, etc.
5. CAB AIR RECIRCULATION FILTER
A24299
660L94
2
1
A24302
3
5
4
