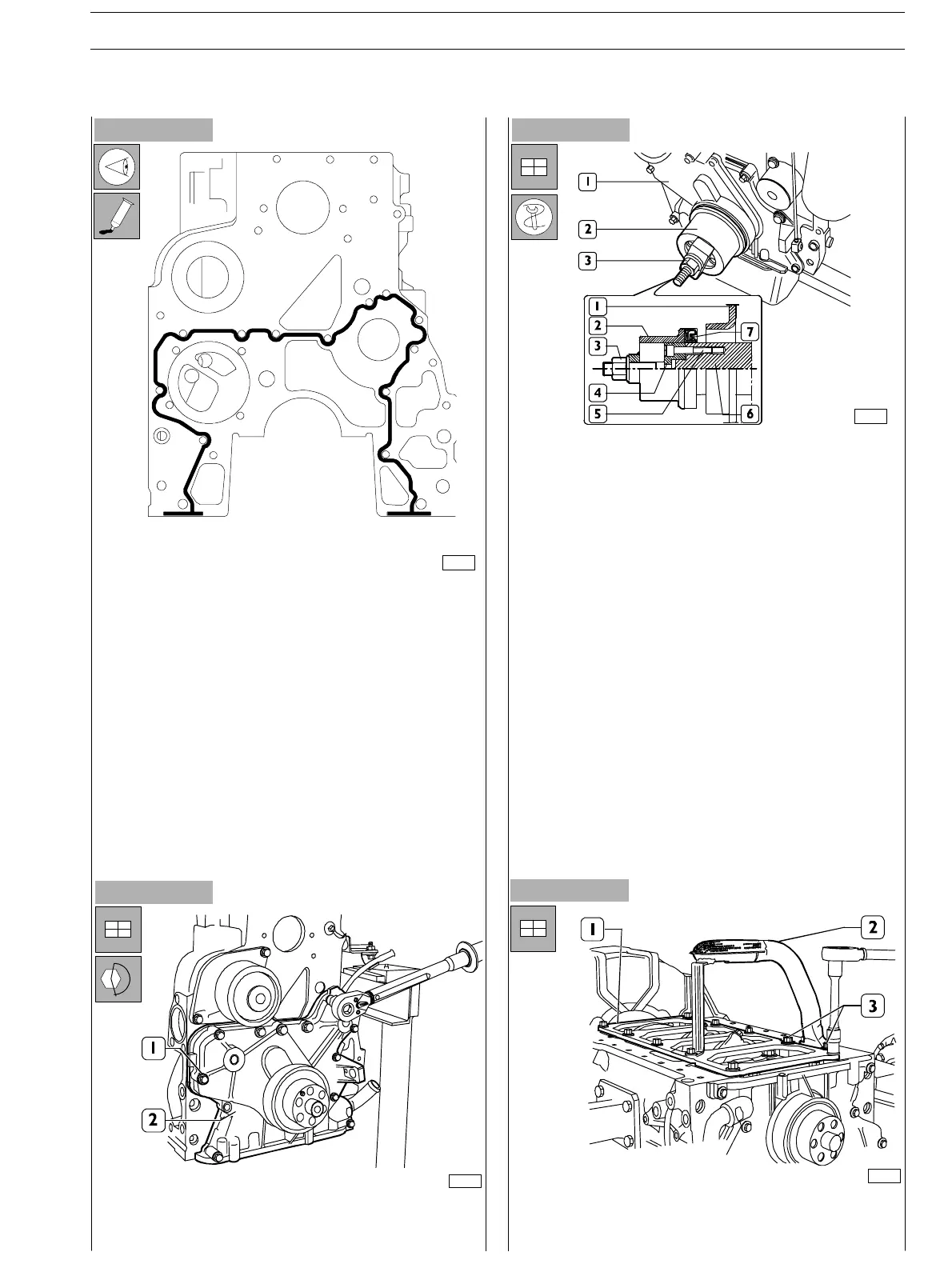

Figure 159
Figure 160
- Accur ately clean the contact surface of engine block and
apply sealing LOCTITE 5205 on it in order to form a
uniform and continuous kerbstone with no c ru mbs.
- Assemble the front cover (2) to the block and tighten the
screws (1) fixing them t o the prescribed co uple.
- Apply on engine drive shaft front tang (6) the detail (4)
of the tool 380000666, fix it with the screws (5) and key
the new holding r ing on it (7).
- Place the detail (2) on the detail (4), screw−up the
threaded nut until carrying out the complete assembly
of the holding ring (7) to the front cover.
Figure 161
Figure 162
- Assemble the plate (1), the rose pipe (2), tighten the
fixing screws (3) and fix them to the prescribed couple.
75710
75812
00902t
75813
SECTION 3 − DUTY − INDUSTRIAL APPLICATION E NG I NE S
53
ED. FEBUARY 2003
