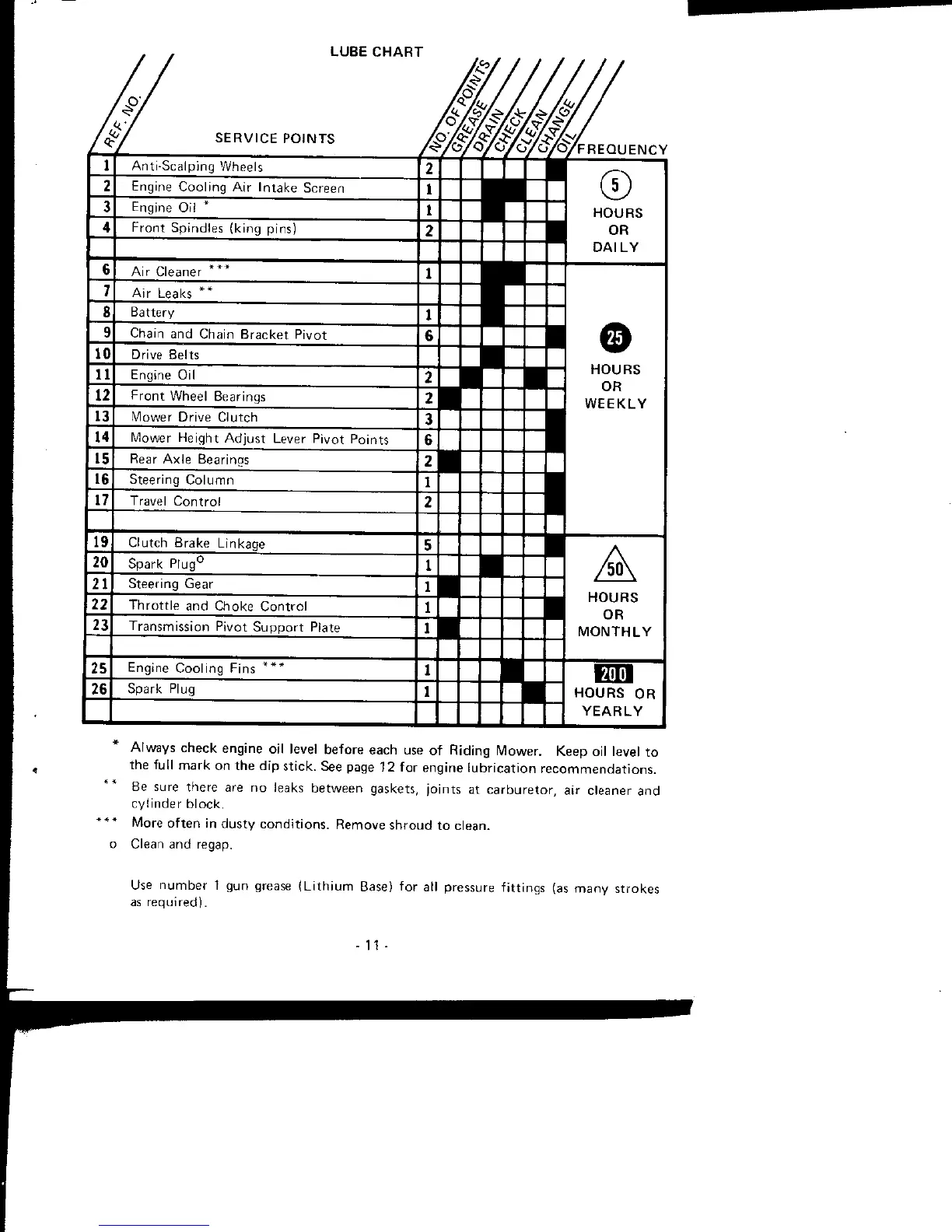

LUBE CHART
_8
10
11
12
13
14
15
16
17
19
20
21
22
23
25
26
SERVICE POINTS
Anti-Scalping Wheels
Engine Cooling Air Intake Screen
Engine Oil
Front Spindles (king pins)
Air Cleaner
Air Leaks
Battery
Chain and Chain Bracket Pivot
Drive Belts
Engine Oil
Front Wheel Bearings
Mower Drive Clutch
Mower Height Adjust Lever Pivot Points
Rear Axle Bearinas
Steering Column
Travel Control
Clutch Brake Linkage
Spark Plug°
Steering Gear
Throttle and Choke Control
Transmission Pivot Support Plate
Engine Cooling Fins
Spark Plug
FREQUENCY
HOURS
OR
MONTHLY
HOURS OR
YEARLY
Always check engine oil level before each use of Riding Mower. Keep oil level to
the full mark on the dip stick. See page 12 for engine lubrication recommendations.
'* Be sure there are no leaks between gaskets, joints at carburetor, air cleaner and
cylinder block.
More often in dusty conditions. Remove shroud to clean,
o Clean and regap.
Use number 1 gun grease (Lithium Base) for atl pressure fittings (as many strokes
as required).
