CURRENT CONDITION CHK3
Continued
SWITCH INPUT (0=OFF, 1=ON)
• Engine oil pressure switch is “ON” with low pressure or when engine is
off. CX130/CX160 ONLY.
• Coolant level switch is “ON” when coolant level is low. CX130/CX160
ONLY.
• Observe with engine running. Should be “ON”.

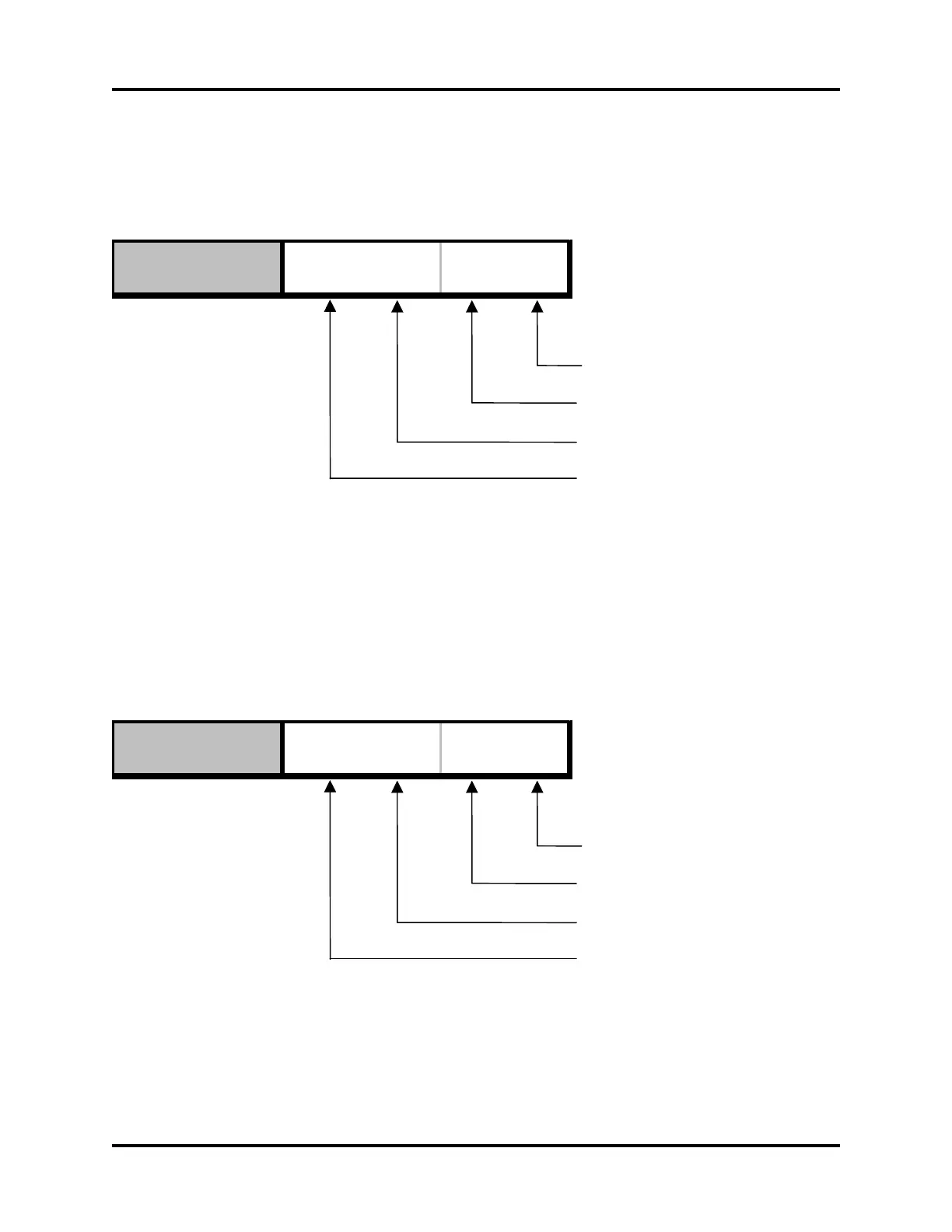

SW2 0 0 0 0
• Engine oil pressure switch
• Coolant level switch
• Not used
• Not used
SW3 0 0 0 0
• Alternator signal
• Not used
• Not used
• Not used
