CURRENT CONDITION CHK3
Continued
SWITCH INPUT (0=OFF, 1=ON)
Key Switch “ON”
• These are momentary switches. They are “ON” only while they are being
pressed.
• These are momentary switches. They are “ON” only while they are being
pressed.

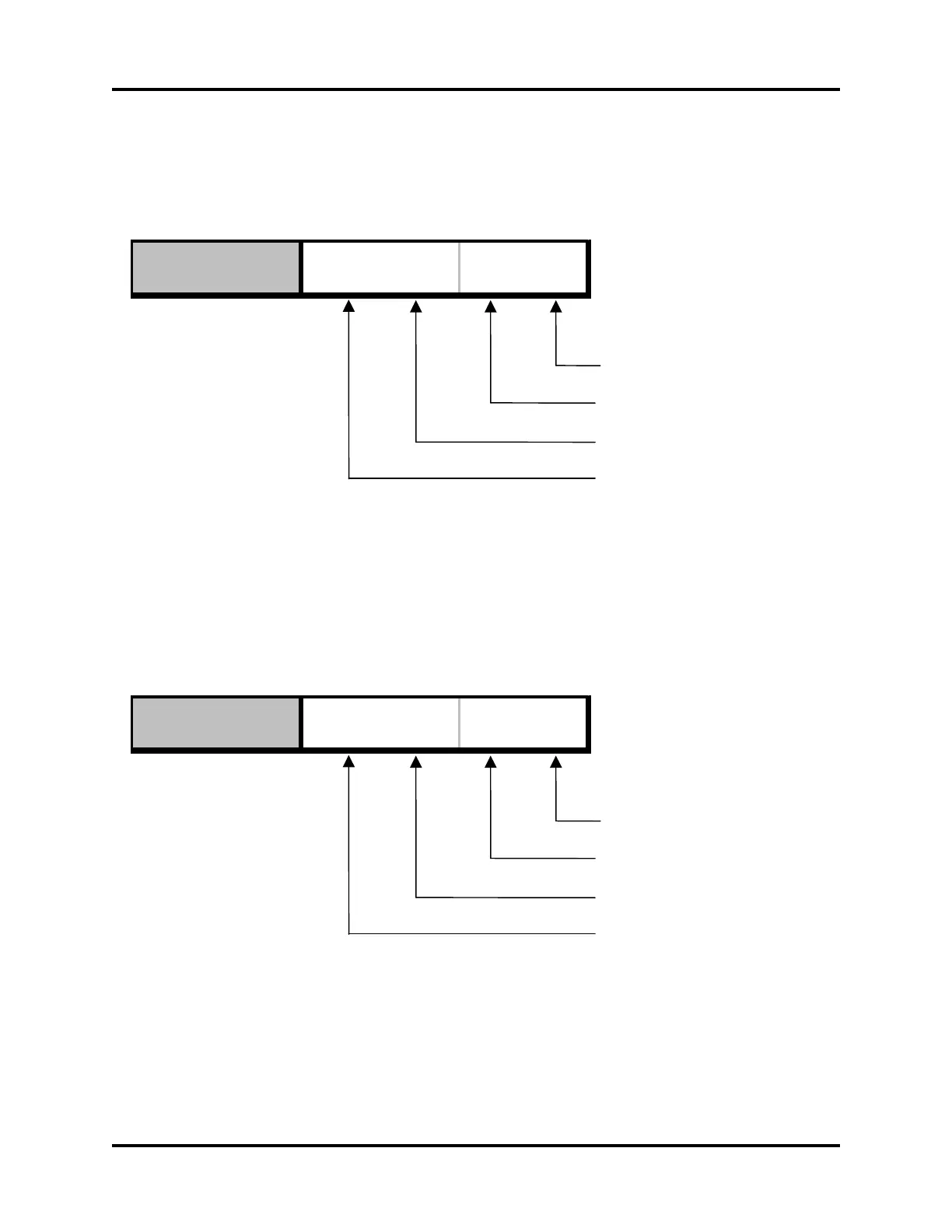

SW4 0 0 0 0
• Cushion switch (off/on)
• Free Swing switch
• Not used
• One touch idle switch
SW5 0 0 0 0
• Swing lock switch
• Emergency Stop switch
• Work light switch
• Wiper switch
