Case CX75SR TIER 3 - Page 27

Lep SC75SRCX80-1002-0NA Issued 03-08
1002-18
RST-03-01-001D
Foot control valve (for Dozer Blade)
Manufacturer ....................................................................................................................................... Nishina industrial
Operating pressure .......................................................................................................................... 3.92 MPa (569 psi)
Secondary pressure, primary short type........................................................... 0.64 to 2.45 MPa (92.82 to 355.34 psi)
Operating angle.........................................................................................................................................................10°

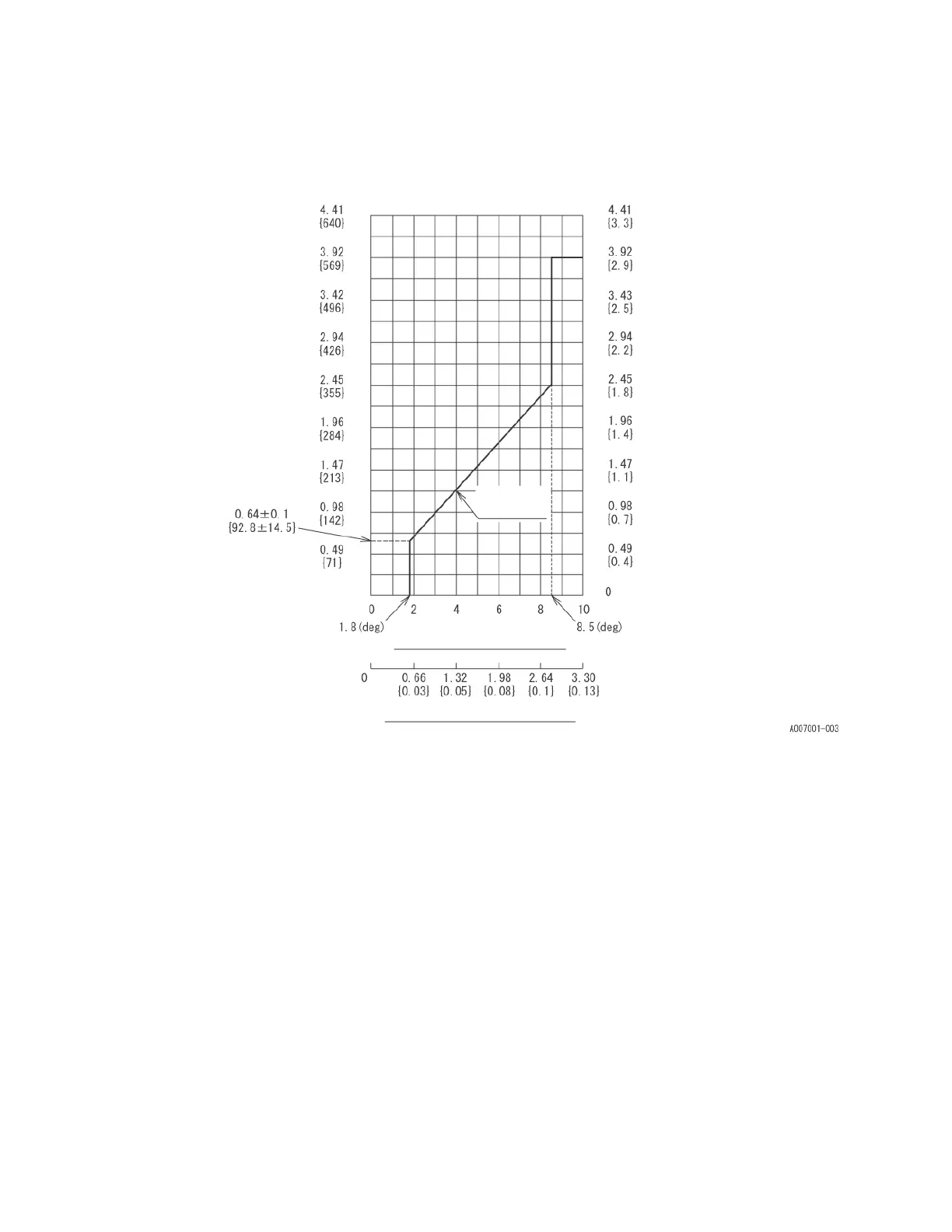

Operating torque ............................................................................................................................See the figure below
Push rod stroke (mm) (in)
Operating angle (deg.)
Secondary pressure (MPa)
Secondary
pressure
Operating torque (Nm) (lbf-ft)
