Foot control valve (for Offset Boom) (CX75SR)
Manufacturer....................................................................................................................................... Nishina industrial
Operating pressure .......................................................................................................................... 3.92 MPa (569 psi)
Secondary pressure, primary short type .......................................................... 0.64 to 2.45 MPa (92.82 to 355.34 psi)
Operating angle ..................................................................................................................................................... 12.4°

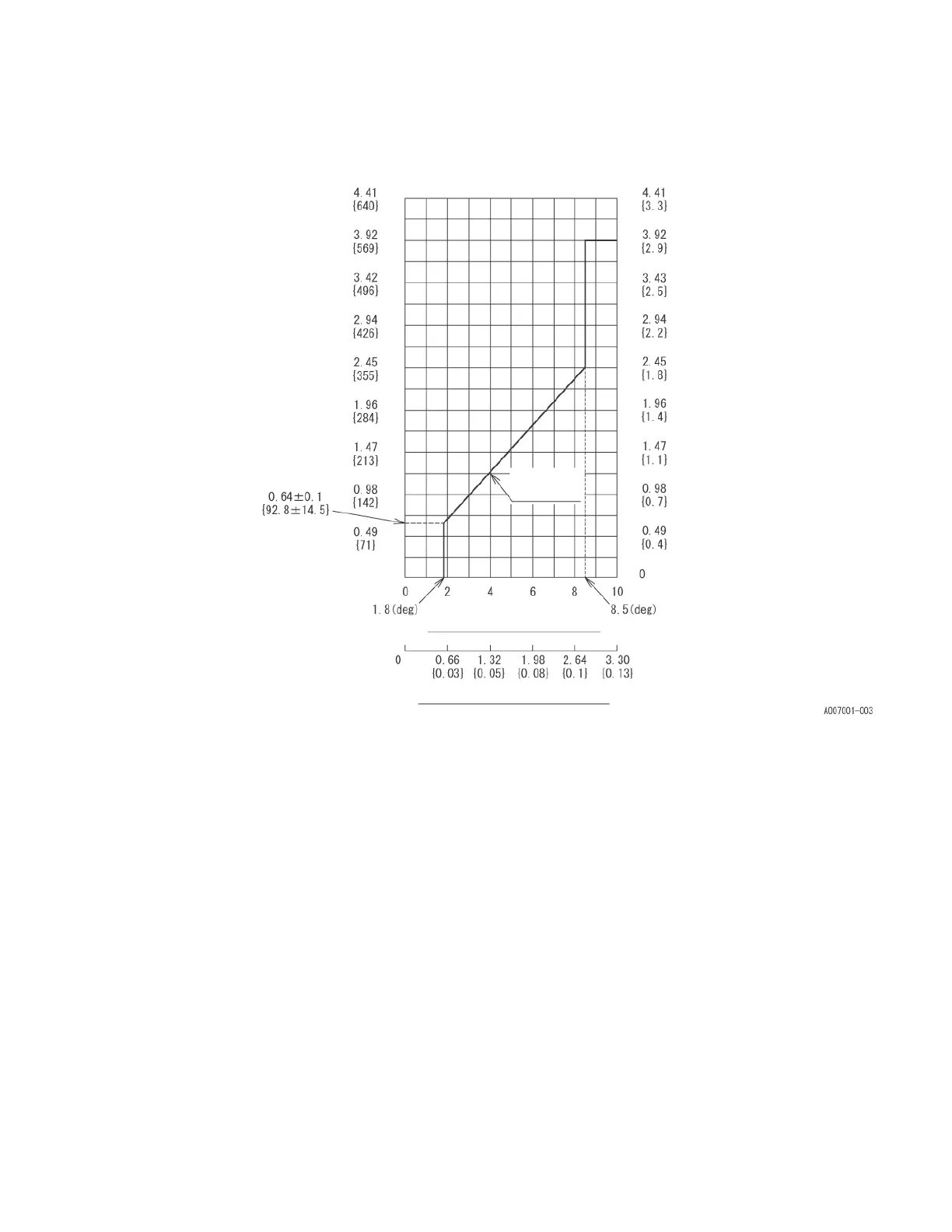

Operating torque............................................................................................................................See the figure below
Push rod stroke (mm) (in)
Operating angle (deg.)
Secondary pressure (MPa)
Secondary
pressure
Operating torque (Nm) (lbf-ft)
