Lep SC75SRCX80-1002-0NA Issued 03-08
1002-24
COMPONENT WEIGHT

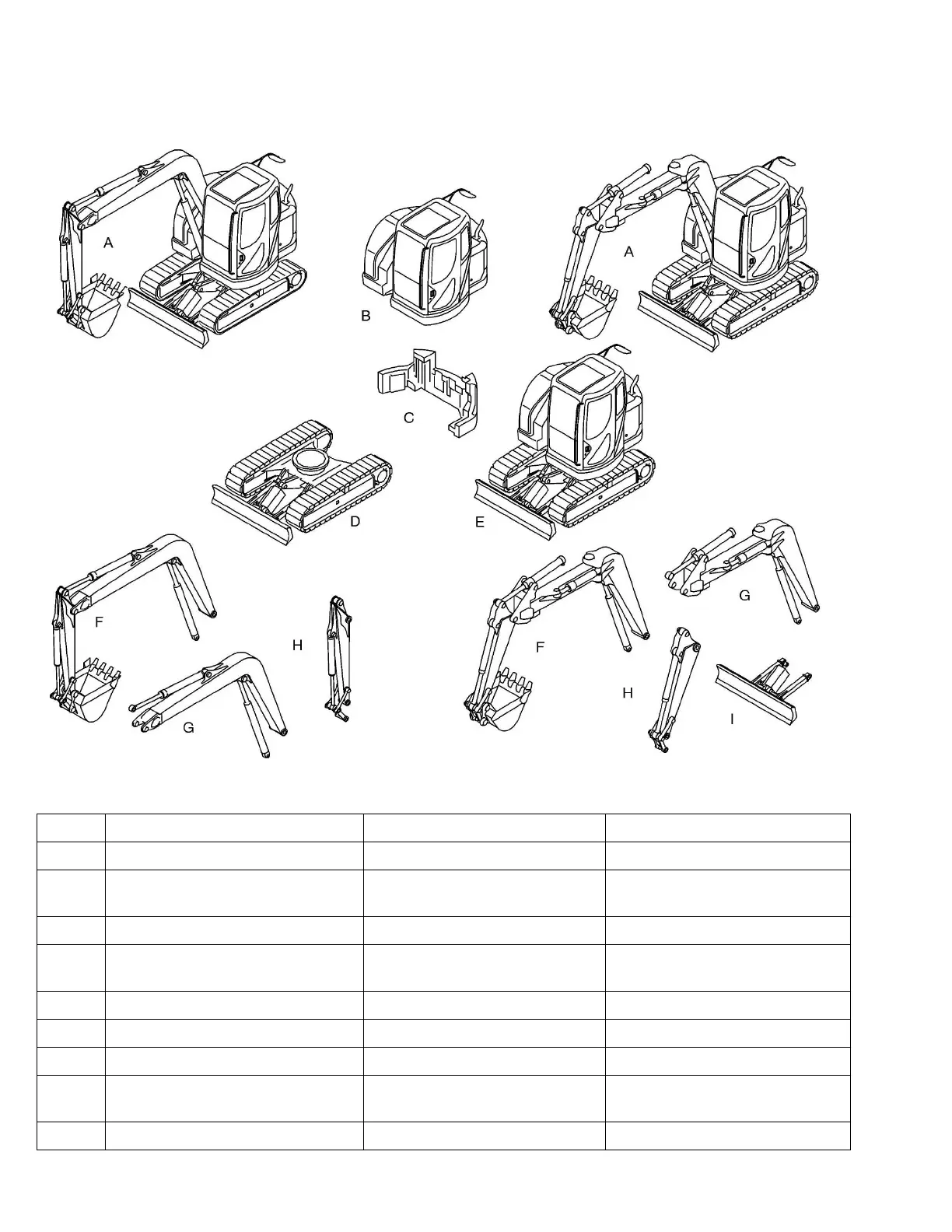

Major component weight (CX75SR)
Weight (kg) information is approximate
Symbol Component Name MONO BOOM SPEC. OFFSET BOOM SPEC.
A Operating weight 7952 (17531 lbs) 8292 (18280 lbs)
B
Upper mechanism (including coun-
terweight and turntable bearing
3892 (8580 lbs) 3892 (8580 lbs)
C Counterweight 1357 (2991 lbs) 1357 (2991 lbs)
D
Lower mechanism (with standard
grouser shoe)
2801 (6175l bs) 2801 (6175 lbs)
E Main Unit Weight 6693 (14755 lbs) 6691 (14751 lbs)
F Attachments 1176 (2592 lbs) 1518 (3346 lbs)
G Boom (including cylinders) 703 (1549 lbs) 1043 (2299 lbs)
H
Arm (dipper) (including cylinders
and linkage)
263 (579 lbs) 266 (586 lbs)
I Blade 332 (732 lbs) 332 (732 lbs)
AQ29001-001_EU
(MONO BOOM)
(OFFSET BOOM)
