Case CX75SR TIER 3 - Page 40

Lep SC75SRCX80-1002-0NA Issued 03-08
1002-31

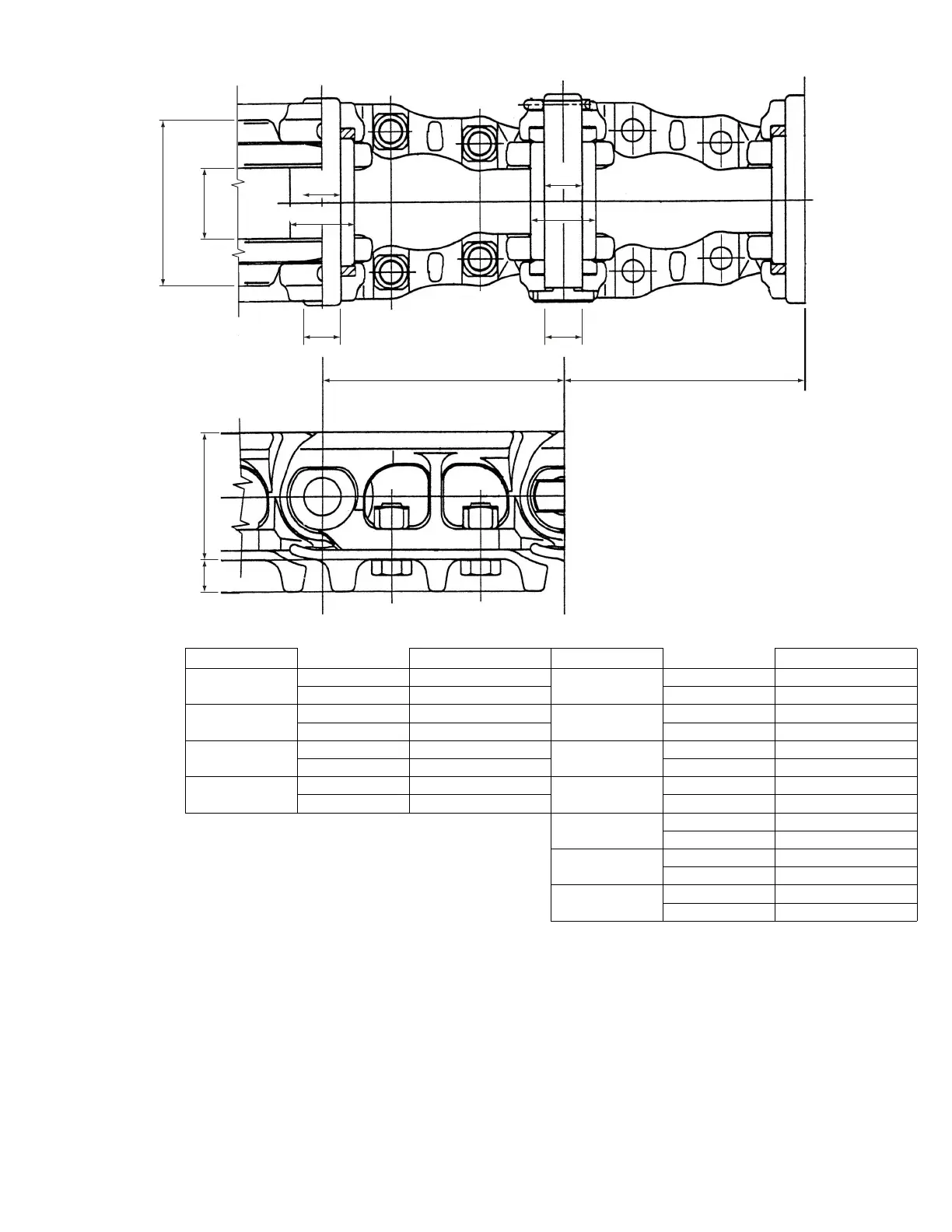

Track
AQ19002-004A
c
d
Øe'
Øf'
Øg'
Øg
Øf
Øe
hh
b
a
Mark Dimension (mm) Mark Dimension (mm)
a
Standard 26
Ø e (ring)
Standard 41.3
Limit 20 Limit 40.3
b
Standard 74
Ø f (ring)
Standard 24.5
Limit 71.5 Limit 23.8
c
Standard 45
Ø g (shaft)
Standard 23.8
Limit 50 Limit 23.2
d
Standard 105
h
Standard 154
Limit 100 Limit 150
Ø e' (bushing)
Standard 41.26
Limit 40.26
Ø f' (bushing)
Standard 24.5
Limit 25.2
Ø g' (shaft)
Standard 24
Limit 23
