8
5. OPTION CIRCUIT
Power protection battery B-6
Power protection battery B-6 os available fro CE-2350.
However, interface circuit is not mounted the machine.
When you use the B-6, mount the following parts.
Parts list for interface
Code No. Parts Name Specification Q’ty
2200 3577 Transistor 2SA1015(GR,O,Y) 1
2301 0011 Diode 1S2471 2
2310 3541 Zener diode RD12EB2 1
2600 7313 Carbon film resistor R-25-10K-J 3
2614 0552 Carbon film resistor R-25-2K-J 1
2801 7098 Electrolytic capacitor 50RE2 1
6219 4553 Connector fixing plate E311094-1 1
6236 6180 P1625-06P connector ass’y E314531B-10(#22-200) 1

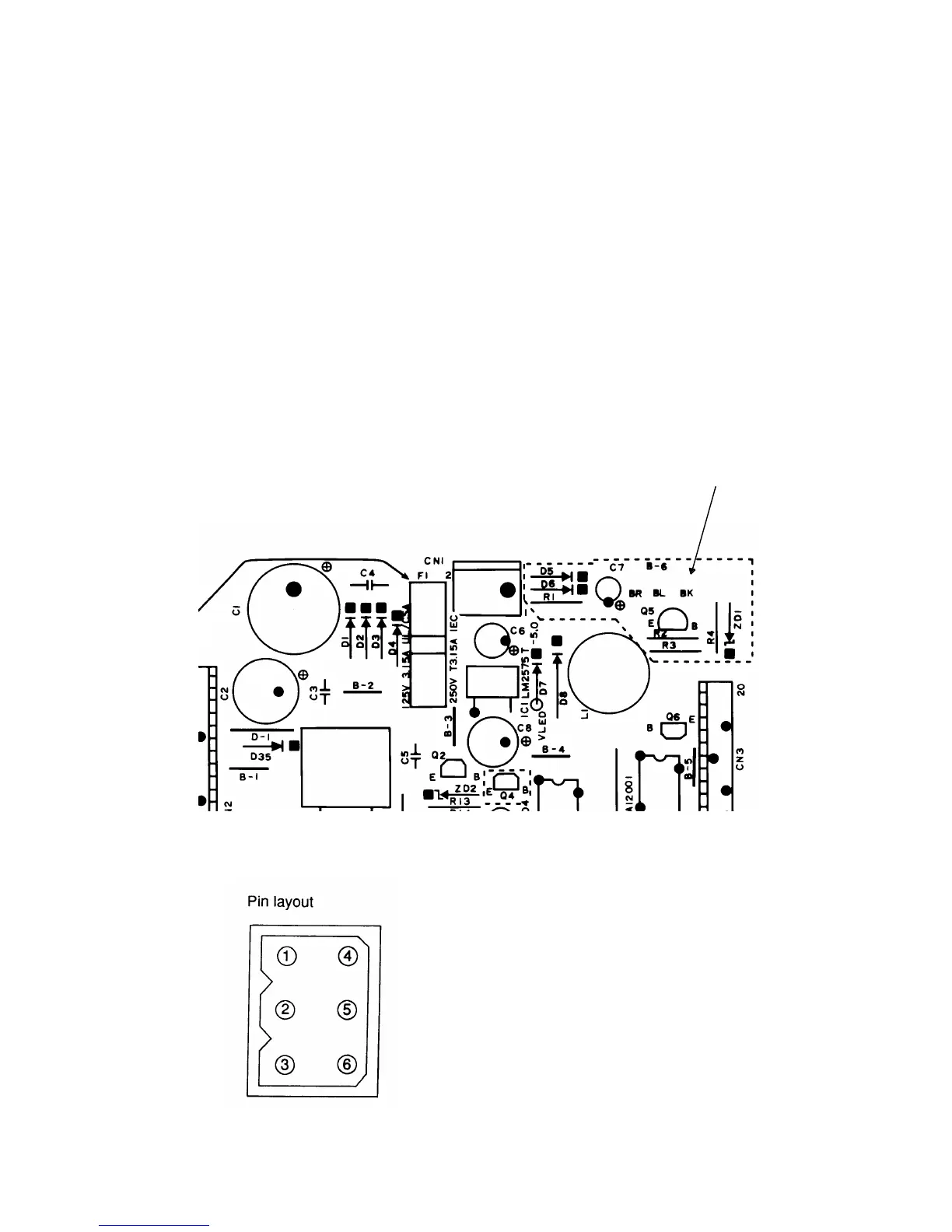

Pin assignment for B-6 connector
Pin No. Description
1 F.G. (Green)
2 Not used
3 CS (Black)
4 GND (Blue)
5 Not used
6 VP (Brown)
Interface circuit for B-6
To Next Page
