Casio CE-T300 Service Manual

- 9 -

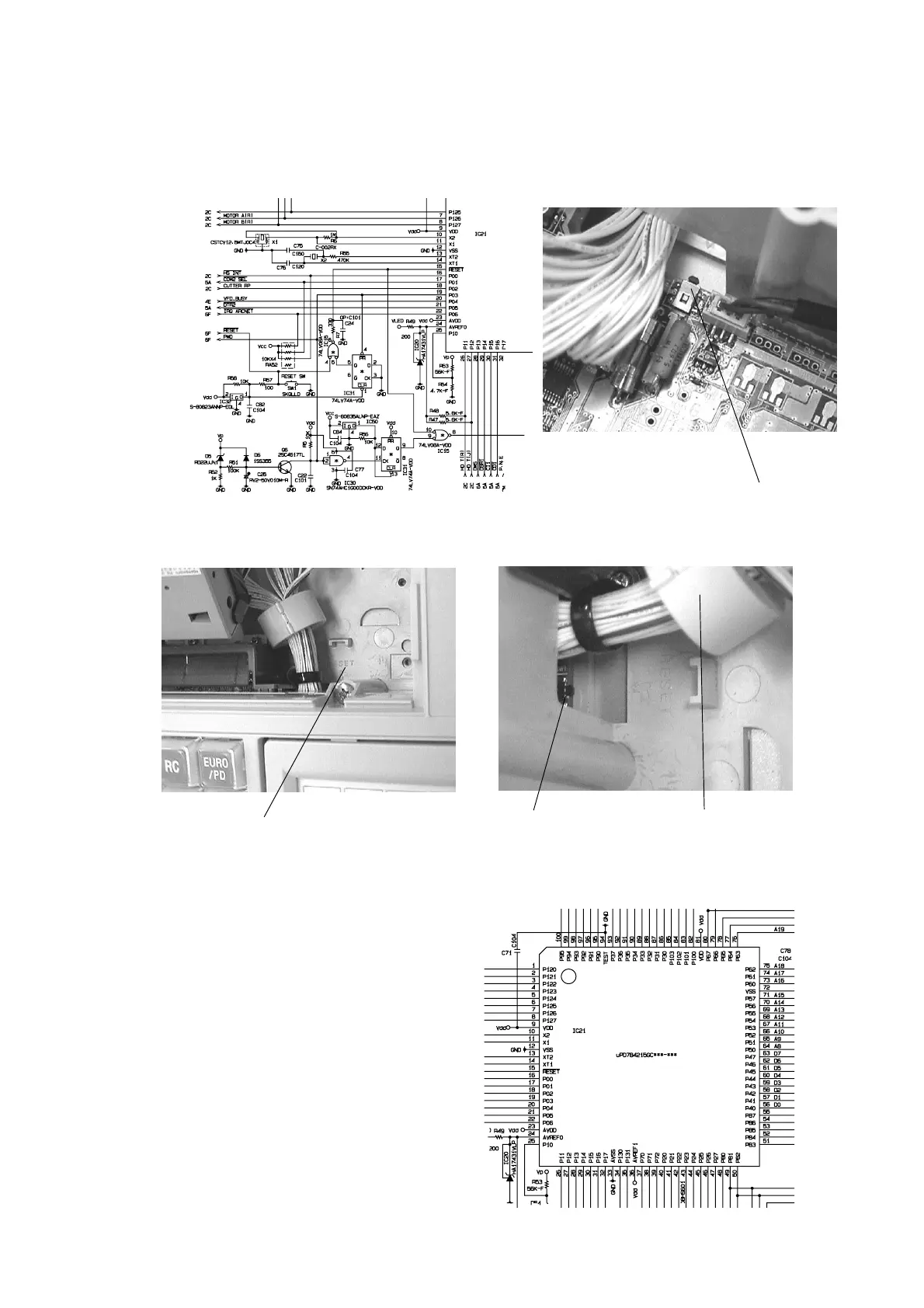

6-2. Reset and powe down circuit
The rest and power down circuit are as following circuit. The reset switch is provided for the
hard reset to cleare the system error. Use this switch only when the FMAC or MAC are not
possible to perform.
Reset switch
The position of Reset switch
Top of view View of inside the printer cover
Reset switch
The mark of RESET
6-3. CPU pin description(uPD784215GC-175-8EU)
The CPU pin descriptions are as follows:
Ferrite core of
Printer Cable
