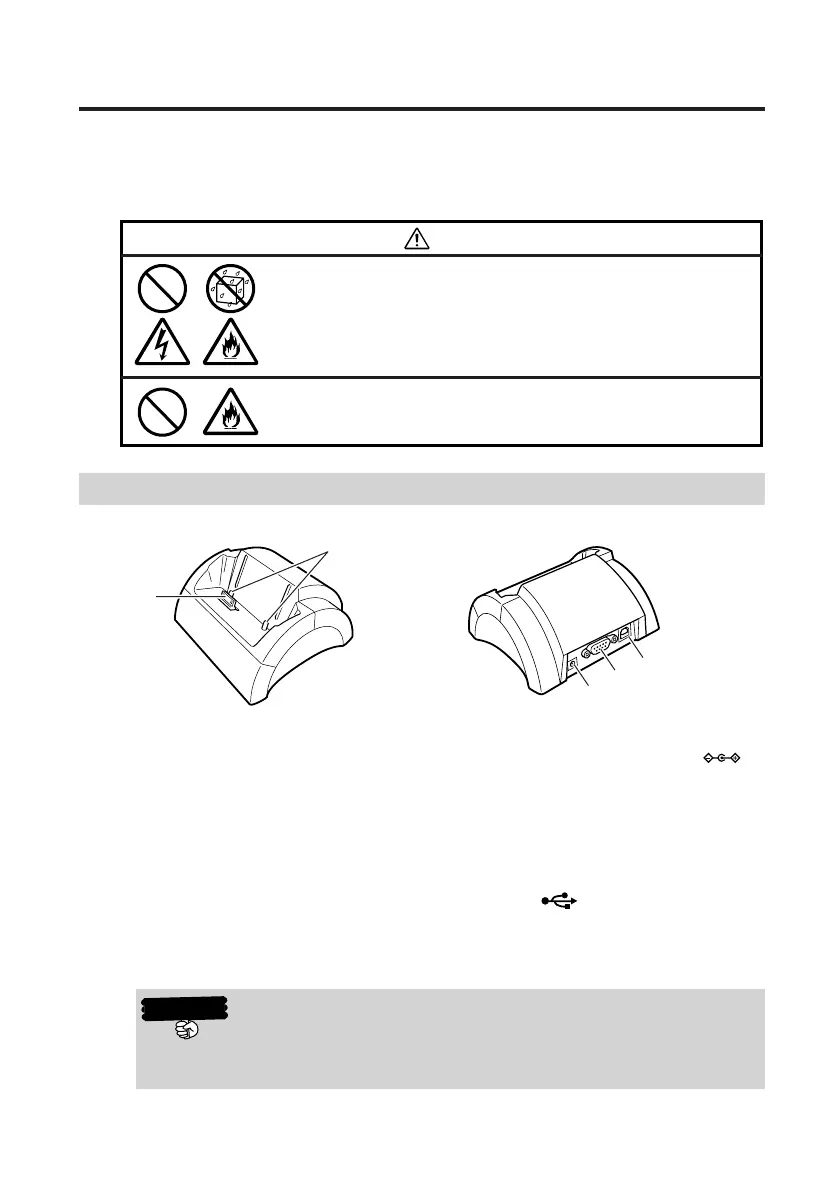

Basic Cradle (HA-C60IO)
Data can be transferred between a PC and the Rugged PDA using the Basic Cradle's
USB interface or RS-232C interface. Also, the Rugged PDA charges while it is mounted on
the Basic Cradle.
Never bring in Rugged PDA a bathroom or any other location
where the possibility of splashing or high humidity exists.
Mounting the Rugged PDA on the Basic Cradle while it is wet
creates the risk of fire, electric shock, and serious accident.
Use only the specified AC adaptor with the Basic Cradle.
Use of other type of AC adaptor creates the risk of fire.
Warning
General Guide
Keep the serial connector clean by wiping it with a soft, dry cloth or a
cotton swab. A dirty serial connector can cause poor contact and de-
crease charging efficiency.
qSerial connector
This connector mates with the serial
connector on the bottom of the Rugged
PDA.
The power is also supplied to the
Rugged PDA via this connector.
wAlignment pegs
Align the Rugged PDA with these two pegs
when mounting it on the Basic Cradle.
ePower adaptor port (DC IN 5V )
Connect the AC adaptor's power cord
here.
rRS-232C port (RS-232C)
This port is used when connecting to a
PC for data transfer.
tUSB port (
)
This port is used when connecting to a
PC for data transfer.
