Names of Parts and Their Functions
Names of Parts and Their Functions

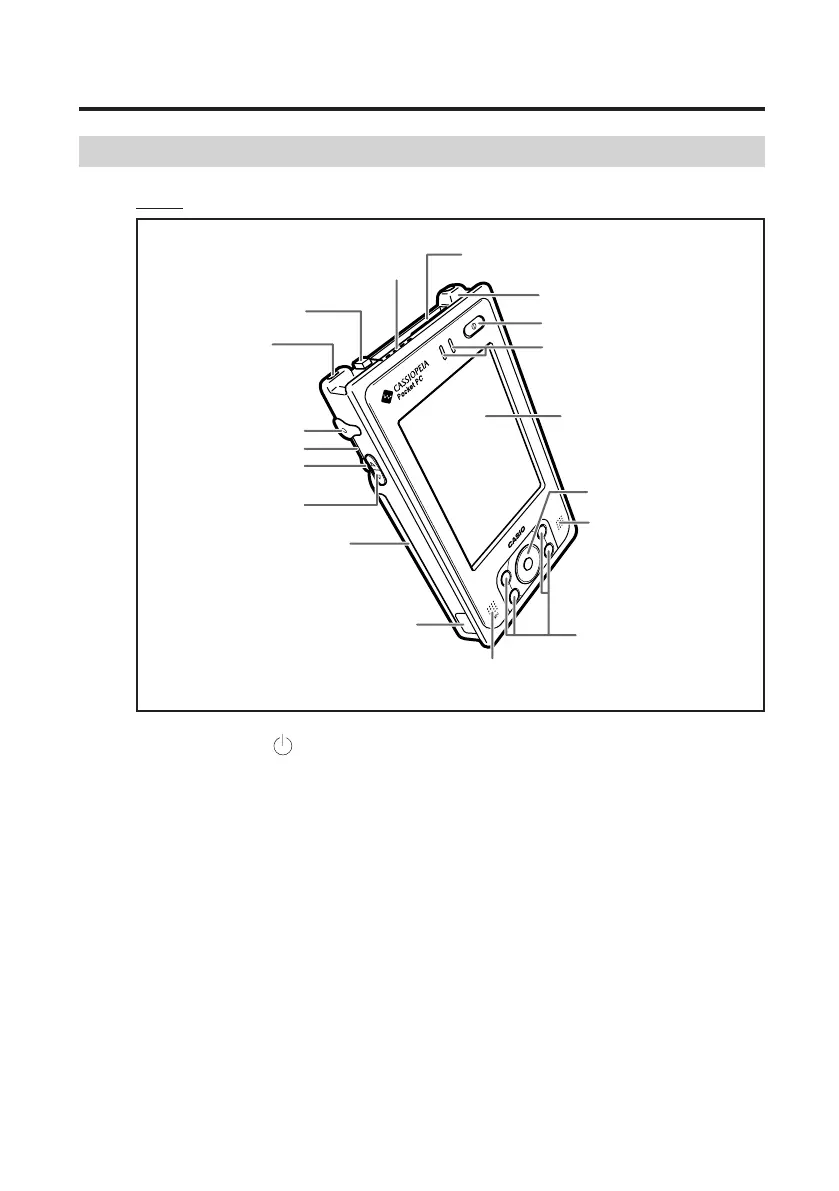

Front
q Power switch ( )
Press this key to turn the power on or off. Once the power is turned on, it cannot
be turned off for 10 seconds.
w Indicator lamps
Right side: Flashes green when the CF card or SD card is being used. It also
flashes red for the alarm and is used as an indicator.
Left side: When the AC adaptor or Basic Cradle is attached, it lights orange
when the battery is charging and lights green when the battery is
fully charged.
e LCD screen
The LCD screen displays information and the stylus can be used to enter
information or operate the Rugged PDA.
r Cursor button
Moves the cursor and similar items up, down, left and right on the computer
screen. Pressing the center of this button straight down performs the same
operation as the Enter key.
uMicrophone
iInfrared communication port
oBattery pack cover
!0UP/DOWN button
!1Action button
!2Reset switch
!3Headphone jack
!4Strap hole
!5Eject button
!6SD card slot
qPower switch
wIndicator lamps
eLCD screen
rCursor button
tSpeaker
yProgram buttons
!7CF card slot
!8Stylus holder
