Dual Battery Charger
3

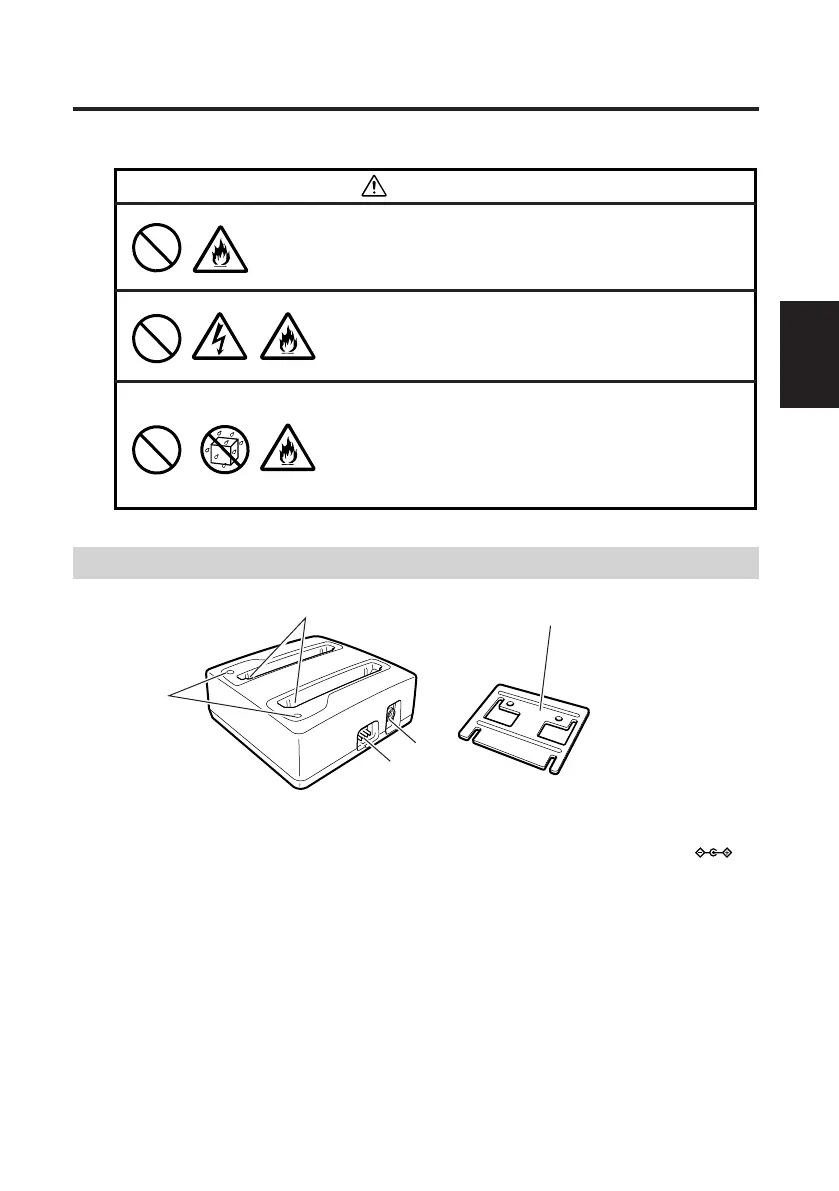

Dual Battery Charger (HA-C32DCHG)
A battery pack (HA-C21BAT) can be charged by loading it into the Dual Battery Charger.
Use only the battery pack specified (HA-C21BAT) for
the Rugged PDA.
Using a non-specified battery pack may cause it to
smoke, or flame resulting in electric shock or fire.
Never bring in the Dual Battery Chager a bathroom or
any other location where the possibility of splashing
or high humidity exists.
Mounting the Battery pack on the Dual Battery
Charger while it is wet creates the risk of fire, electric
shock, and serious accident.
Use only the specified AC adaptor (AD-S42120AE)
with the Dual Battery Charger.
Use of other type of AC adaptor creates the risk of
fire.
Warning
General Guide
q Charging status indicator lamp
Green: Charging complete
Red: Charging
Flashing Red: Charging problem
Flashing Green: Charge standby
Off: No battery pack
w Power contacts
These contacts provide connection with
the battery packs.
e Power Adaptor Port (DC IN 12V
)
Connect the AC adaptor's power cord
here.
r Series Connection Terminal
This terminal makes it possible to link
multiple charger units together.
t Coupling plate
q
r
e
w
t
