– 14 –

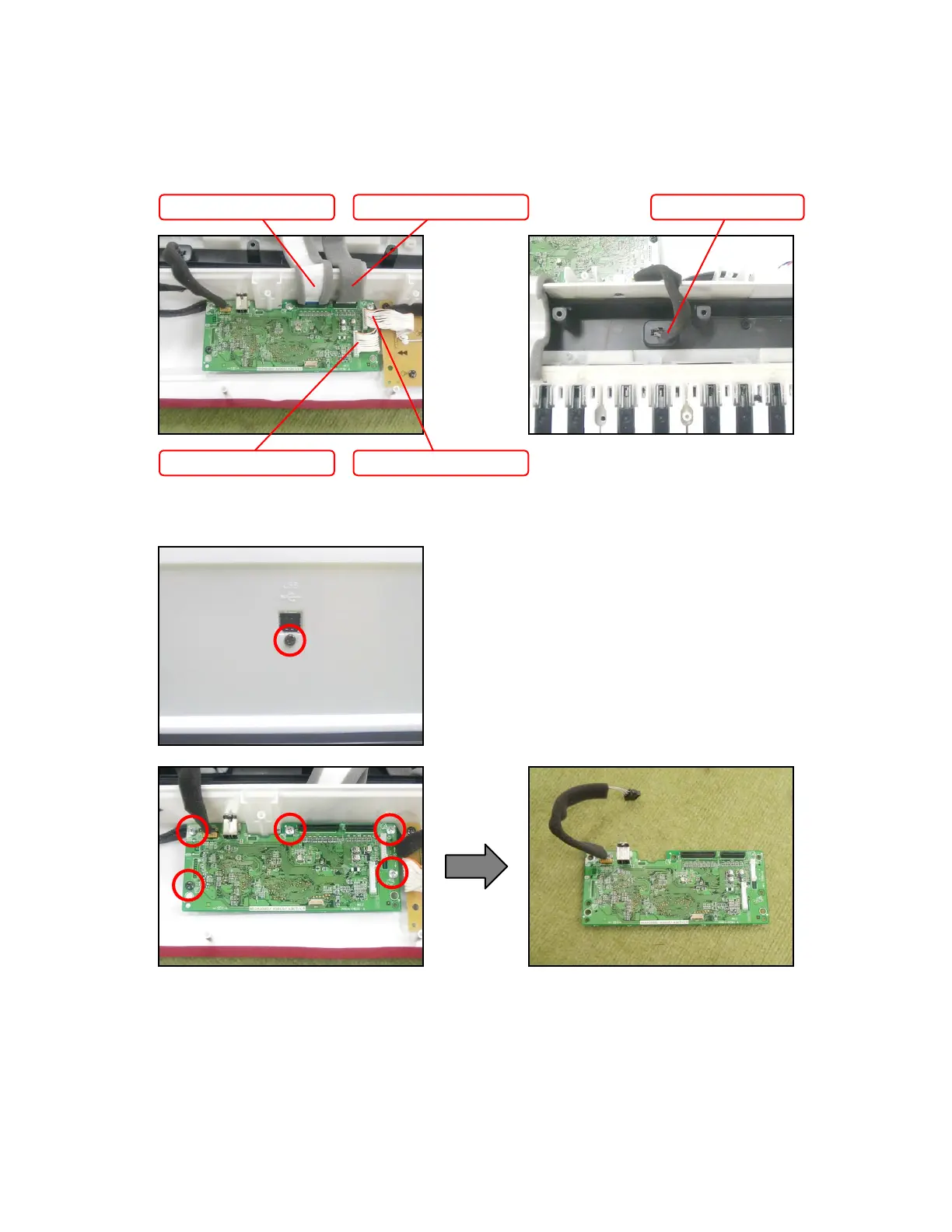

Removing the main PCB (M900-MDA1)
Release the lock and remove two FFCs.1.
Remove two connectors.2.
Remove the pedal connector connected to the lower case.3.
FFC (Keyboard) FFC (Keyboard)
Connector (M900-PSA1)Connector (M900-CNA1)
Pedal connector
Remove the screw below the USB jack on the back of the main unit.4.
RemovevescrewsandthenthemainPCB(M900-MDA1).5.
