2. Numeric 1x11 type (SA-5060N)
1. Connect 2 pcs of expansion cable which is the SA-5060N carton box to SA-5060N.
2. Open the upper case and release the screw to fixing the bracket.
3. Change the bracket which is in the SA-5060N carton box and insert the cable to the hole.
4. Then, connect 2 pcs of expansion cable to the connector CN1,CN2 on the keyboard controll PCB.
5. Make short the jumper JP1 on the keyboard controll PCB using short pin which is mounted PCB.
JP1 condition : Open : Not mounted SA-5060N Default
Short : Mounted SA-5060N
6. Close the upper case.

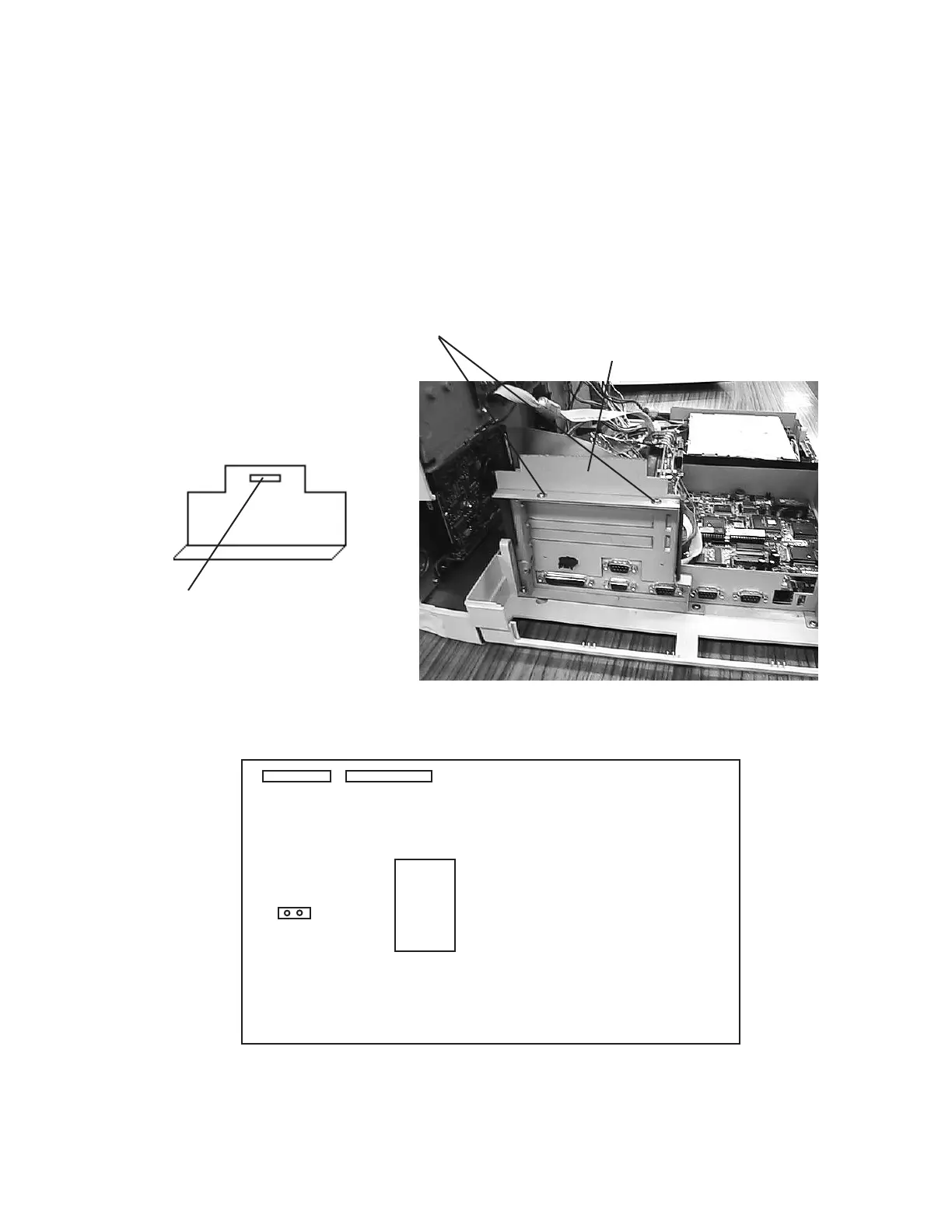

Bracket
Release these screws.
Bracket in the carton box
Insert the cable to this hole.
CN1
CN2
ROM
JP1
Printer controll PCB
