– 6 –

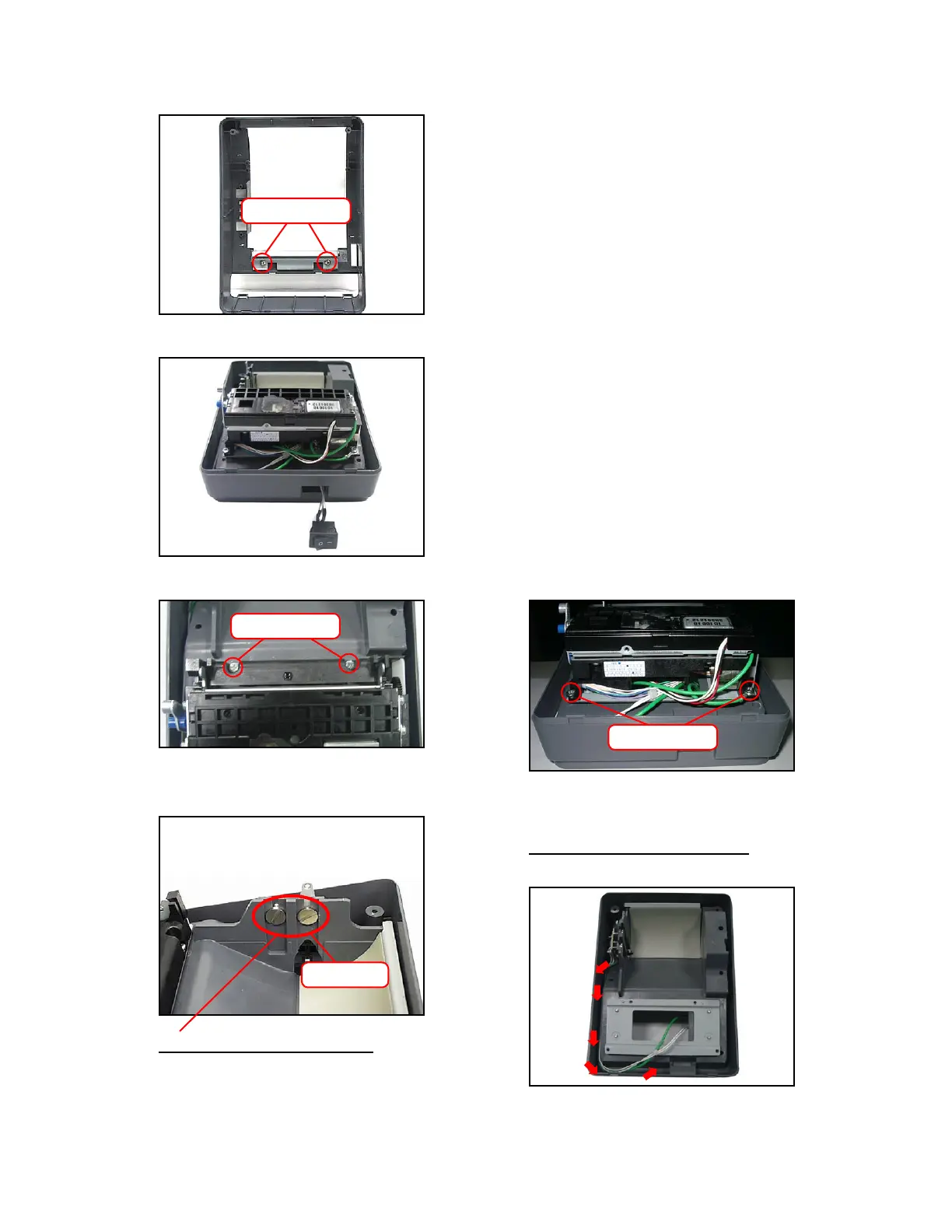

Remove the two screws and then the paper guide and the cutter.8.
Screws (S8)
Remove the four screws and then the printer unit.10.
Remove the power switch.9.
Screws (S3)
Screws (S3)
Loosen the two screws and then remove the end sensor unit.11.
Precaution when assembling
Fix the end sensor unit at the lowest of
the groove.
Precaution when assembling:
Be sure to arrange the cables as shown below.
