– 4 –

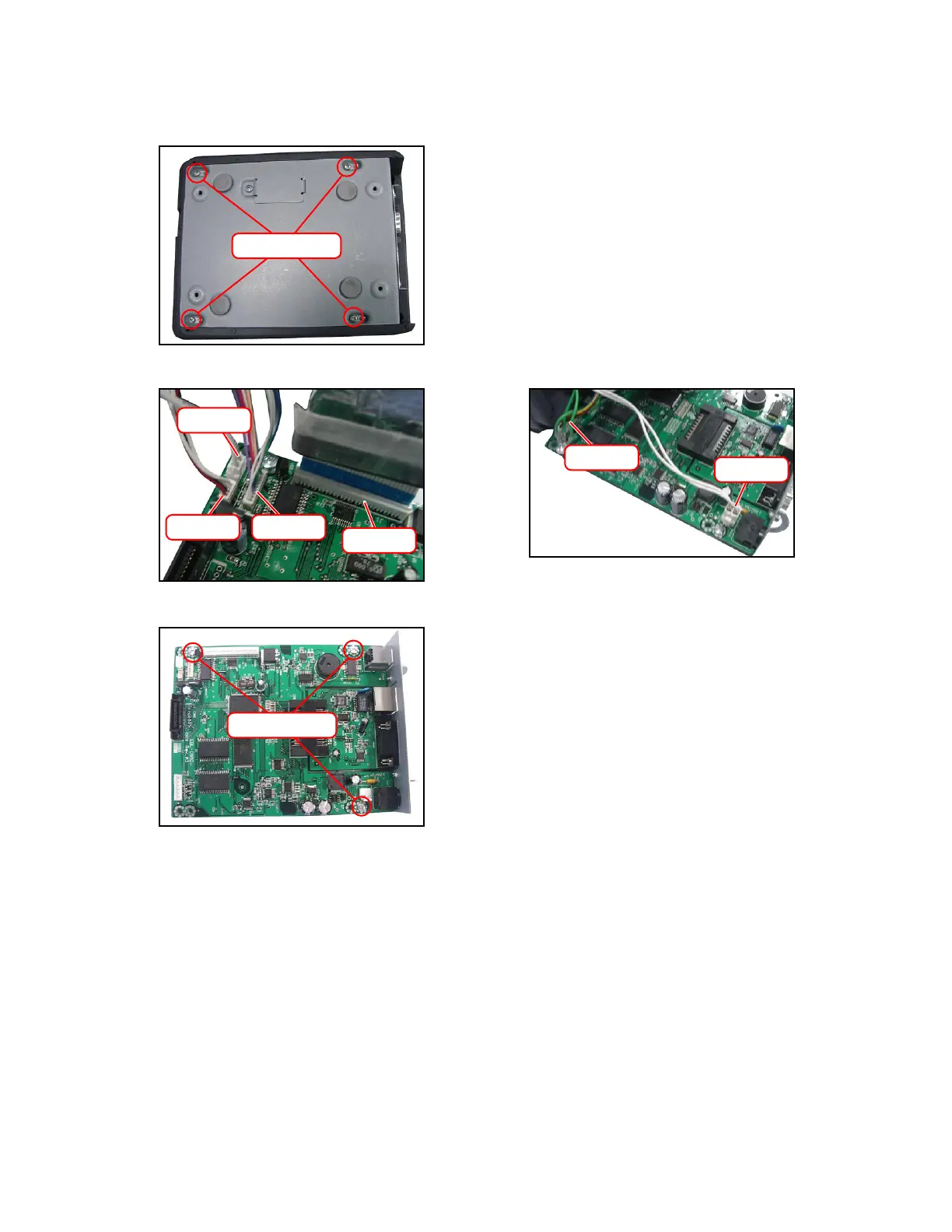

DISASSEMBLY2.

Remove four screws at the bottom of the printer unit.1.

Remove ve connectors (CN1, CN2, CN3, CN5, CN6) and the FFC (J1).2.

Screws (S11)

CN3

CN2

CN1

CN5

CN6

Remove three screws and then remove the main PCB.3.

Screws (S3)
