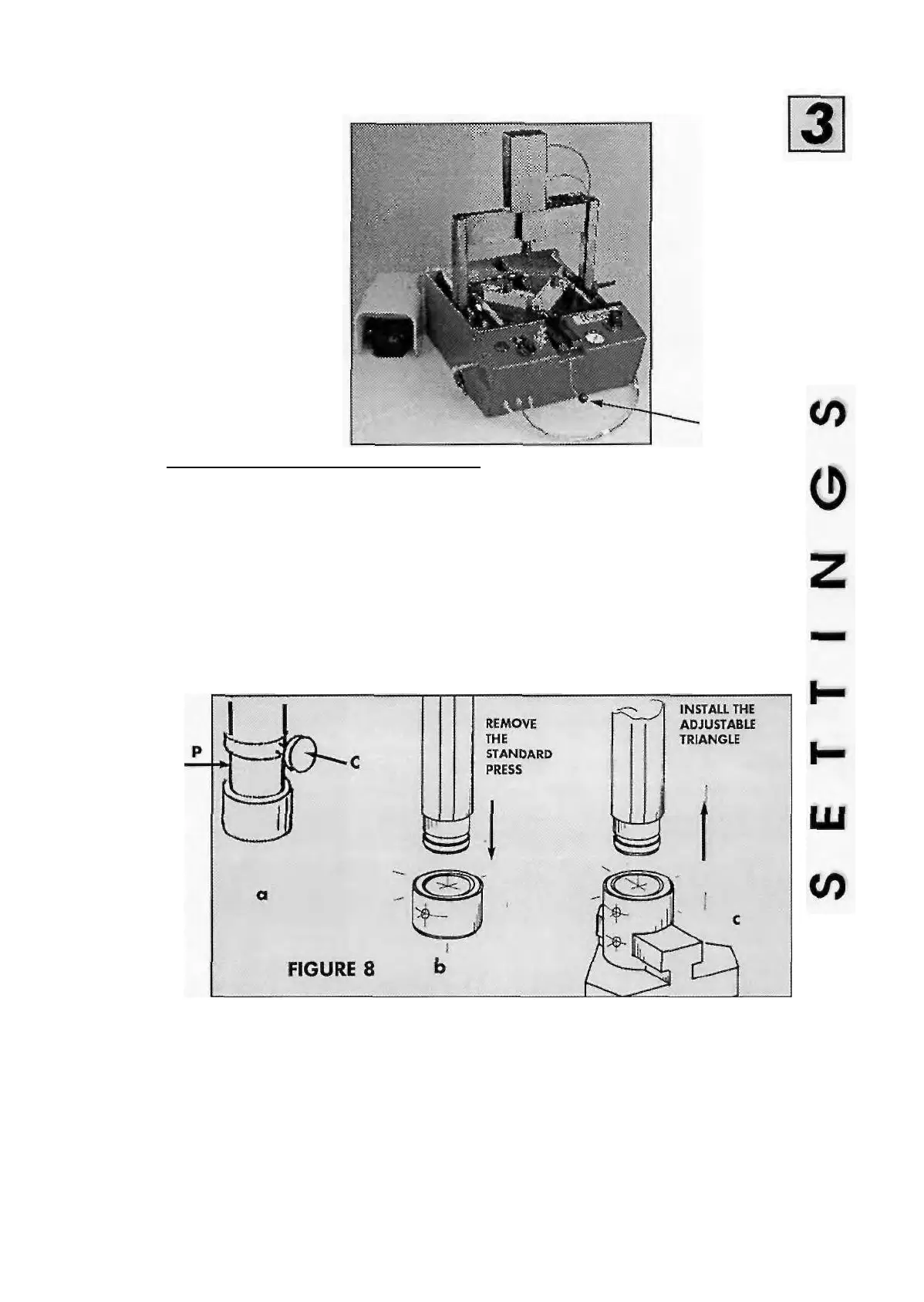

FIGURE 7
VI- CHANGING THE CARTRIDGE (FIG 7)
1 - Pull back the wedge pusher spring (FIGURE 7- F)
2 - Remove the empty cartridge
3 - Insert the new cartridge in the wedge distributor's window making sure the cartridge is
firmly against the distributor block.
4 - Release slowly wire (F).
VII - LOCATION OF PLUNGER
The vertical plunger can operate without setting at all ring heights but
the height of the plunger can be adjusted by the setting ring (reference C in FIGURE 1)
NOTE : In a general way you should use the metal round plunger end. Only if the plunger
makes marks on very soft the mouldings, then use the adjustable triangle. (FIGURES 8 a, b, c)
IMPORTANT : If working with small mouldings, the vertical plunger can be set so that the
distance between the moulding and plunger in minimized.
910SR-JR/02.94 - 6 -
