Cavitron Plus G136 - Cavitron Plus Scaler Description; System Controls Overview; Handpiece and Pedal Description

11

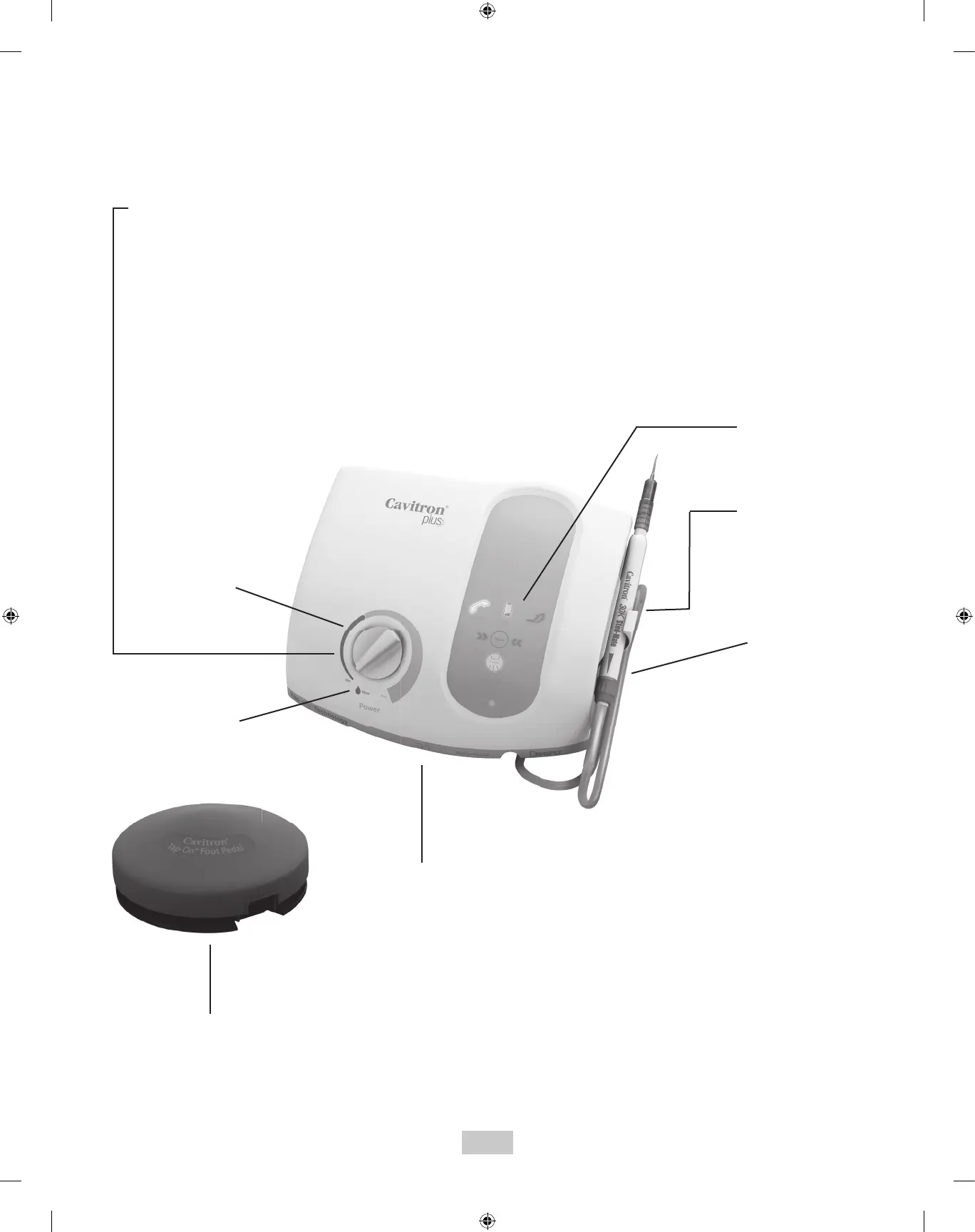

Main Power ON/OFF Switch
ON/OFF Switch located at the center front
underside of the system.
Ultrasonic Power Level Control
Turn knob to select the ultrasonic power level for operation. Turning the knob clockwise
increases the distance the insert tip moves (stroke) without changing the frequency;
turning the knob counterclockwise decreases the distance the insert tip moves (stroke)
without changing the frequency.
The Blue Zone is an extended low-power range for improved patient comfort when
subgingivally scaling.
Rinse
Turn the ultrasonic power level control knob fully counterclockwise until a “click” is heard.
Rinse mode is for use during an ultrasonic scaling procedure when lavage is desired with
minimal cavitation.
Diagnostic
Display
See section
8.2 for more
details.
Blue Zone
Rinse
Steri-Mate
®
Handpiece
Accepts all
Cavitron
®
30K
™
Ultrasonic inserts
See section 8.3 for
more details.
Handpiece Holder
Securely holds the
system’s handpiece,
or cable connector
when handpiece is not
installed.
Tap-On
TM
Wireless Foot
Pedal
Eliminates the need to hold down
or pump foot pedal.
See section 8.6 for more details.
SECTION 8: Cavitron Plus Ultrasonic Scaler Description
8.1 System Controls
