Cavitron Plus G136 - Quick Start Installation Instructions

2
Quick Start Installation Instructions

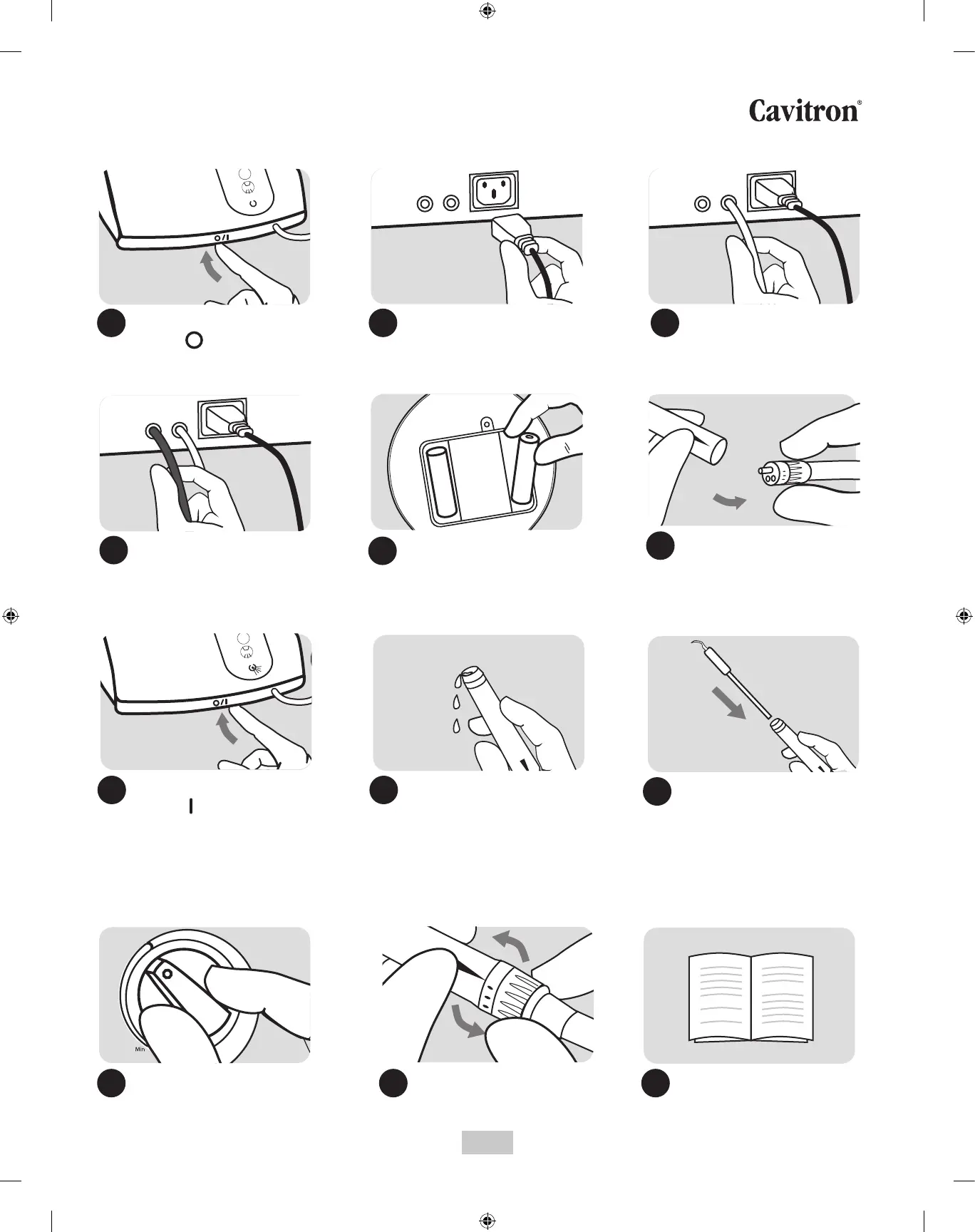

Set unit to OFF position.
Symbol: means o.
Connect POWER supply. Connect WATER supply by
pushing BLUE water hose into
water port.
Install BATTERIES in wireless
foot pedal unit.
Connect AIR supply (if equipped)
by pushing BLACK air hose
into air port.
Hold upright and depress foot
pedal until handpiece
FILLS WITH WATER.
TIP: adjust lavage control to higher
ow rate to increase water ow.
Tap-On™ Technology does not function
unless an insert is in the handpiece.
TIP: Handpiece is detachable and
autoclavable. Make sure the electrical
connections are dry before connecting.
Place ULTRASONIC INSERT
into handpiece.
Adjust LAVAGE CONTROL on
handpiece to desired setting.
Consult Directions For Use for
daily maintenance, usage
techniques and more.
30K Steri-Mate
30K Steri-Mate
30K Steri-Mate
1
2
3
4
Adjust POWER LEVEL.
Turbo
Purge
1 2 3
4
5
Connect HANDPIECE to cable.
6
8
9
10 11 12
Water
Air
Set unit to ON position.
Symbol: means on.
The indicator light will be
green when unit is on.
Turbo
Purge
7
teri-Mate
1
2
3
4
