5.2. Mode of operation
Switches No. 1 and No. 2 allow the operating mode of the smart controller for piezoelectric switch
MPZ to be selected;

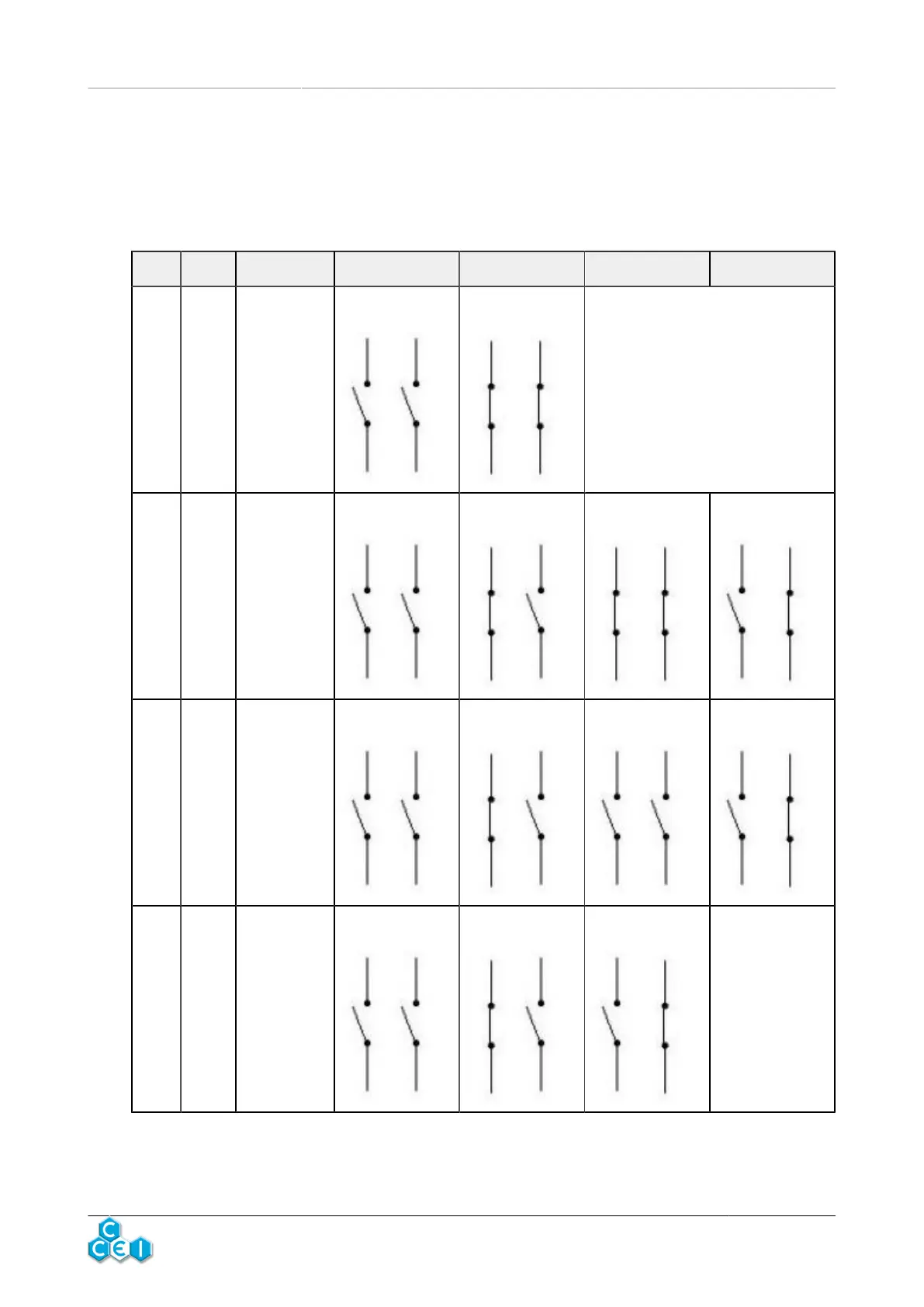

No. 1 No. 2 Mode Seq. 1 Seq. 2 Seq. 3 Seq. 4
OFF OFF
Remote
control
switch
(2xNO)
PZ1 PZ2
PZ1 PZ2
X (2 sequences only)
OFF ON
Sequencer
A
PZ1 PZ2
PZ1 PZ2 PZ1 PZ2 PZ1 PZ2
ON OFF
Sequencer
B
PZ1 PZ2
PZ1 PZ2
PZ1 PZ2
PZ1 PZ2
ON ON
Sequencer
C
PZ1 PZ2
PZ1 PZ2 PZ1 PZ2
X (3 sequences
only)
