2.4 Cables for service purposes
For service purposes (debugging and configure TCP/IP settings) you can connect the terminal to your computer. In order to
configure you need a service cable (Cable OPX service, KW21/14).

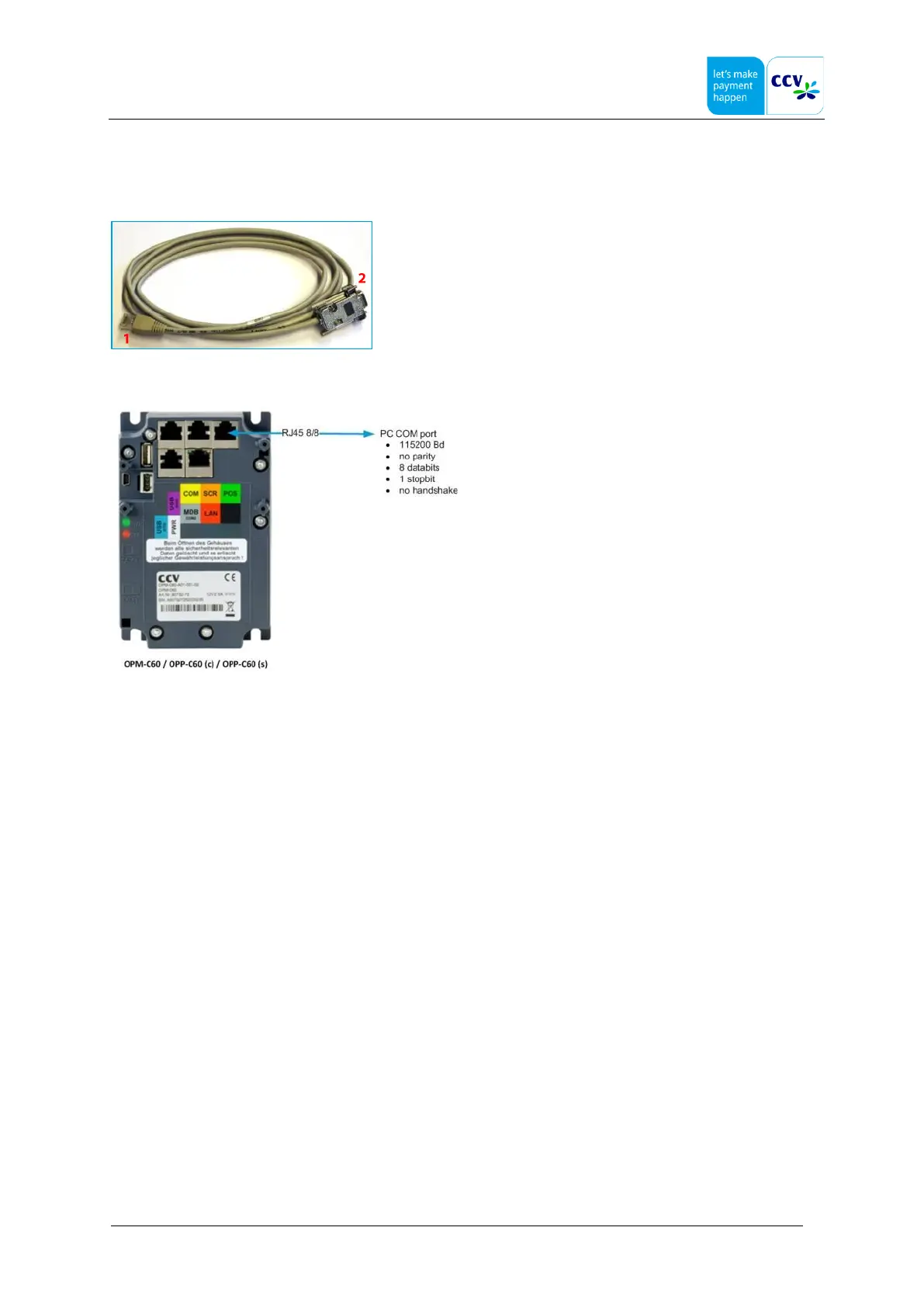

Connect connector 1 to the green POS port of the terminal and connector 2 to the COM port of your computer as shown
below.
