5 Installation
The CCV IM30 is designed to be mounted on vertical surfaces by means of a mounting plate. Depending on
the size of the cut-out on the front of the vending machine, installations can be made using a special
mounting plate. Two variations are described below.

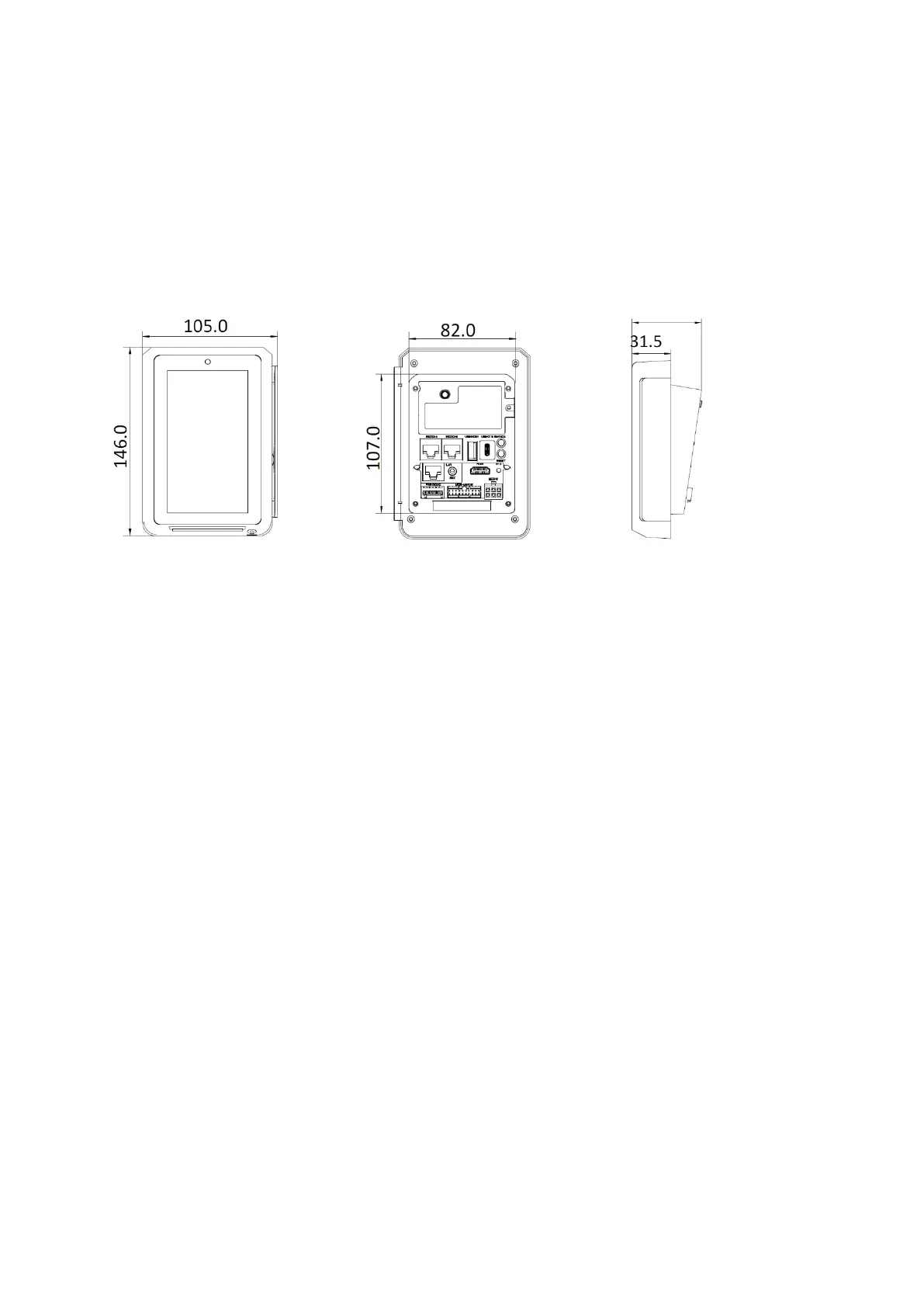

The following three figures summarise the main dimensions of the CCV IM30 terminal.
5.1 Installation preparations
Install the payment device in a location/position so that the end-user can safely enter a secure PIN-code while
blocking external views with hand or body. Also take the following conditions into consideration:
• Positions the terminal between 80 cm and 120 cm from the ground. Only deviate from this
specification if secure entry of the PIN is not possible.
• PIN-entry cannot be visible from a nearby elevated surface, through mirrors or cameras or any other
way.
• The product has a virtual PIN-pad, which means the touch-screen is used for PIN-entry and other
interactions. Take this into account in the positioning of the product.
• If necessary, an additional privacy shield may be required to provide secure PIN-entry.
• Make sure the product is installed following the environmental conditions specified. See Technical
Specifications of the product for the allowed temperature and humidity conditions.
• Avoid installation where the product is subject to shocks and vibration, direct sunlight, dust, water or
condensation or excessive electromagnetic interference.
