CCV IM30 - Power and Digital IO Connector

Manual - CCV IM30
15
6 Connectors

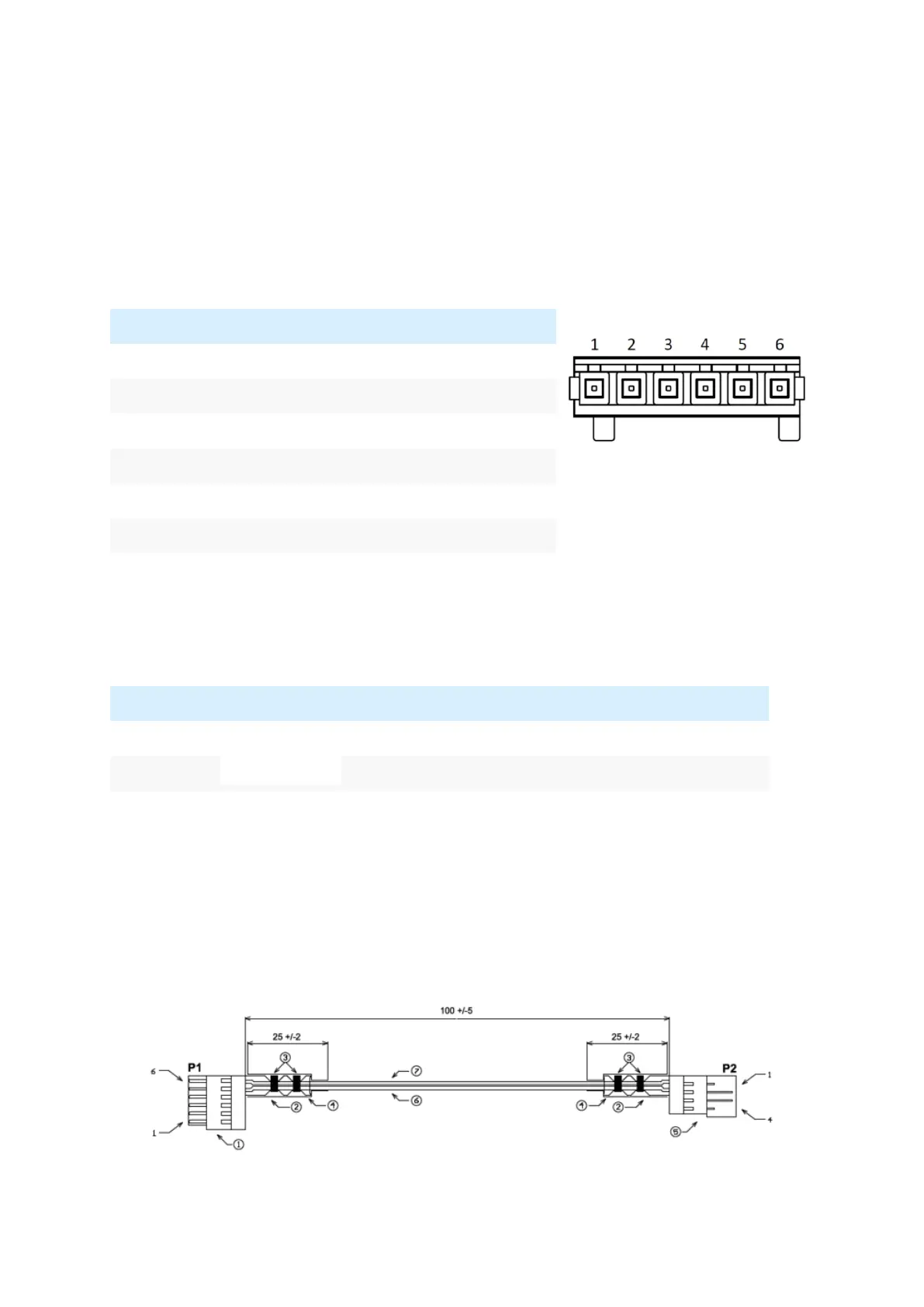

6.1 Power/ Digital IO
The terminal can be powered by PWR-DIG I/O connector (6pin WAGO, plug 733-106). This connector also
enables a digital IO port.
PWR-DIG I/O (WAGO 6pin)
Pin
DIGI_IN3
1
DIGI_IN2
2
DIGI_IN1
3
DIGI_OUT1
4
GND
5
PWR
6
Pin 6: This PIN can be used as PWR_In (power supply for IM30 if not supplied via MDB), or as PWR_Out (for
example power for digital -IO board) if IM30 is powered via another pin (e.g. supply via MDB Standard
connector). The following accessories are available for this purpose.
Part number
Name
Number
03133-91
Power supply
(cable + Adapter)
Poweradapter OPP for InSync/IM30
1
01272-42
Power supply + Cord OPP-C60
1
The power supply is carried out by a 6pin WAGO plug.
For a test environment you can use the power supply (with 4pin WAGO plug) und adapter cable (4pin to 6pin
plug). You can order this set with part number 03202-91.
Adapter cable WAGO 4pin to WAGO 6pin, 100mm
