5.2 Installation based on the Standard cut-out
(„Kiosk cut-out“)
For installations based on the standard cut-out
with the dimensions W x H (mm): 82.40 +0.10/-0.00
x 120.40 +0.10/-0.00 the Kiosk frame can be used for
mounting the terminal. This has the CCV part
number 03443-55.

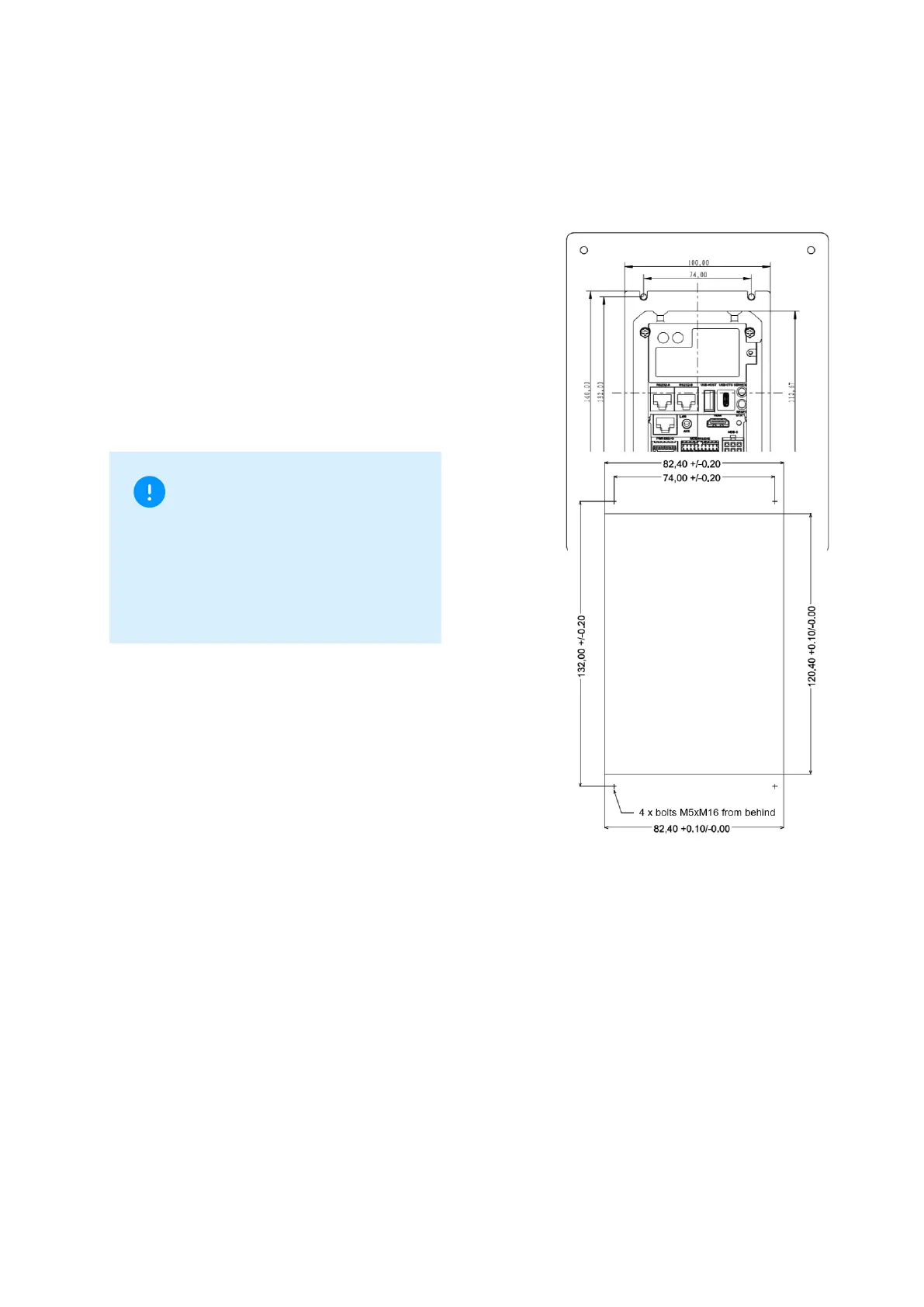

The illustration on the right shows the terminal rear
view including positioning of the holes for
mounting the terminal.
The following illustration shows the standard cut-
out with the dimensions W x H (mm): 82.40 +0.10/-
0.00 x 120.40 +0.10/-0.00 including positioning of
the holes for mounting the terminal.
Important
Also with this form of terminal mounting,
the 4xM4 screws on the back of the terminal
must be done with a force torque of 0,8 Nm
±0,2 Nm.
