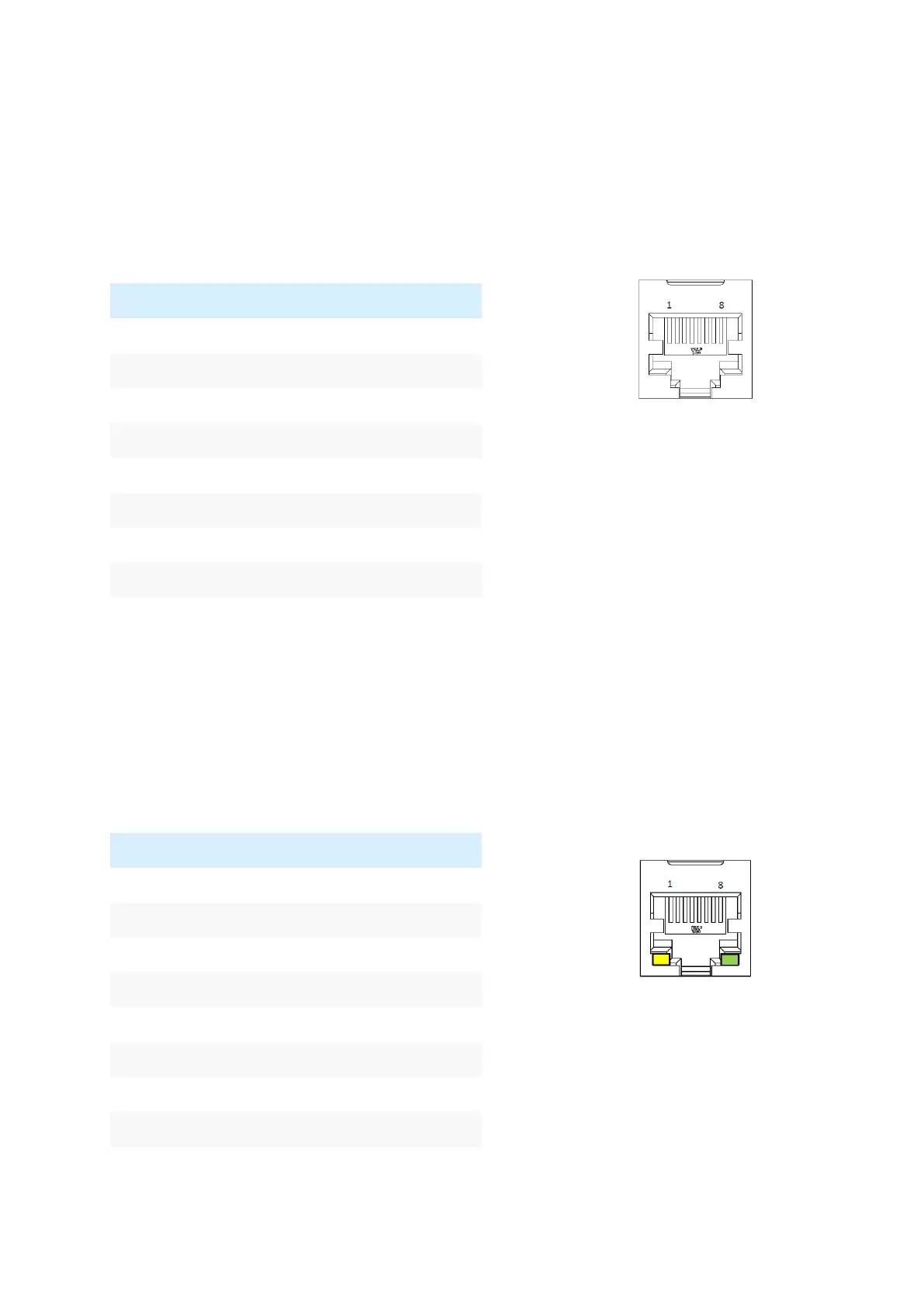

6.5 RS232-B COM
RJ45 8-poles, high speed interface (default 115.2 kbps/ switchable up to 921.6 kbps), shielded, hardware
handshake, max. cable length 100 cm, software controlled supply voltage output to also supply external
components besides communication.
signal
pin
POWER_OUT
1
RX
2
TX
3
MDB_WAKEUP
4
RTS
5
CTS
6
GND
7
GND
8
6.6 Ethernet
Ethernet is a common network protocol for local area network. The CCV IM30 has an Ethernet 10/100 Base-T
port.
signal
pin
TX+
1
TX-
2
RX+
3
NC
4
NC
5
RX-
6
NC
7
NC
8
