CDA DC740 Manual For Installation, Use And Maintenance

11

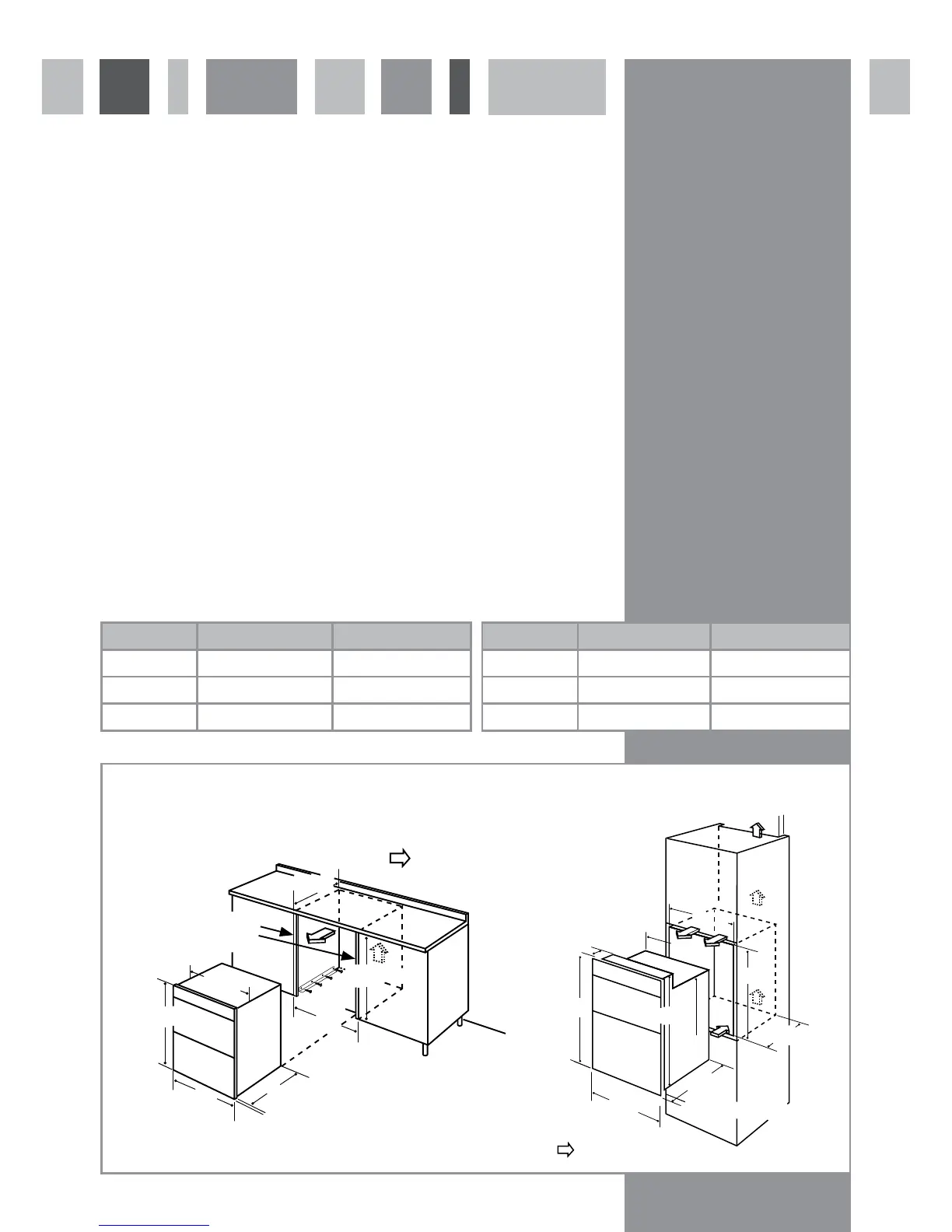

fig. 6
Dimensions Oven Housing
Height (mm) 890 877
Width (mm) 595 560
Depth (mm) 540 560 (min)
DC940
Dimensions Oven Housing
Height (mm) 718 720
Width (mm) 595 560
Depth (mm) 540 560 (min)
DC740
Installation
Important
Failure to allow adequate ventilation to the appliance may result in overheating or damage to adjacent units and could invalidate
the warranty. The diagram below shows the minimum required.
This appliance is type X installation. The walls of the kitchen units must be able to withstand temperatures of 75
o
C above ambient
(typically this is between 90
o
C and 100
o
C).
When correctly installed ensure that there is a gap of 4mm minimum between the sides of the oven and adjacent furniture doors.
Lift the oven carefully into position on the shelf, taking care NOT to lift it by the door handles. If you lower the oven door, you will
see 4 screw holes, 2 on each side of the oven. The oven should then be secured to the housing by fitting screws into these holes.
Remember the housing should not be free standing but be secured to the wall and/or adjacent fittings.
How to install your oven
You will need the following housing area fit your oven correctly.
DC740 only: We recommend that you fit end support panels onto the adjacent units to allow the oven to be secured in place (as
shown in fig. 6
DC940DC740
24 (22 BL/WH)
595
540
560
556
718
720 min
560
end support
panels
= airow
595
888
24 (22 BL/WH)
540
877
30-50
560
556
868
850
105
560
= airow

CDA DC740 Specifications

General

Grill	Yes
Oven size	Small
Oven type	Electric
Number of ovens	2
Total oven power	4000 W
Number of shelves	3 shelves
Oven net capacity	35 L
Total oven(s) interior capacity	- L
Oven 2 net capacity	50 L
Noise level	- dB
Control type	Rotary, Sensor
Product color	White
Control position	Front
Clock type	Electronic
Timer type	Digital
Current	20 A
AC input voltage	230-400 V
AC input frequency	50 Hz
Energy consumption (conventional)	- kWh

Weight and Dimensions

Depth	540 mm
Width	595 mm
Height	718 mm
Weight	43000 g
Installation compartment width	560 mm
Installation compartment height	720 mm
