CDA DC740 Manual For Installation, Use And Maintenance

10
Fig.5
Mains Electricity Connection
Warning! This appliance must be earthed
To connect this appliance to a UK standard mains supply, connect the bridging
links between 1-2-3 for the live feed and 4-5 for the neutral feed
We recommend that the appliance is connected by a qualified electrician, who
is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local
regulations.
This appliance is intended to be connected to fixed wiring and is not
suitable for connection to a 13A plug or 13A supply.
This appliance is intended to be connected to fixed wiring by a double pole
switch, having a contact separation of at least 3mm in all poles. The switch
must be positioned no further than 2m from the appliance.
Release the two locks located at either side of the connector cover at the rear
of the appliance.
Feed the mains lead through the cable clamp to prevent accidental
disconnection.
Tighten the cable clamp securely and close the connector cover.
Green and Yellow = Earth (PE)
Blue = Neutral
Brown = Live
Please note:
• The mains cable must only be replaced by a qualified electrician or
service engineer and must be of equivalent or better rating (i.e. 2.5mm
2
,
HO5RR-F).
• This appliance is intended to be connected to the mains supply with a
cable of cross section area 2.5 mm
2
. A larger cable will not fit the terminal
connections.
• The marking of the current rating of the fuse or circuit breaker protecting
this appliance should be marked on the socket outlet.
• Assembly and electrical connection should be carried out by specialised
personnel.
• When installing this product we recommend you seek the help of another
individual.

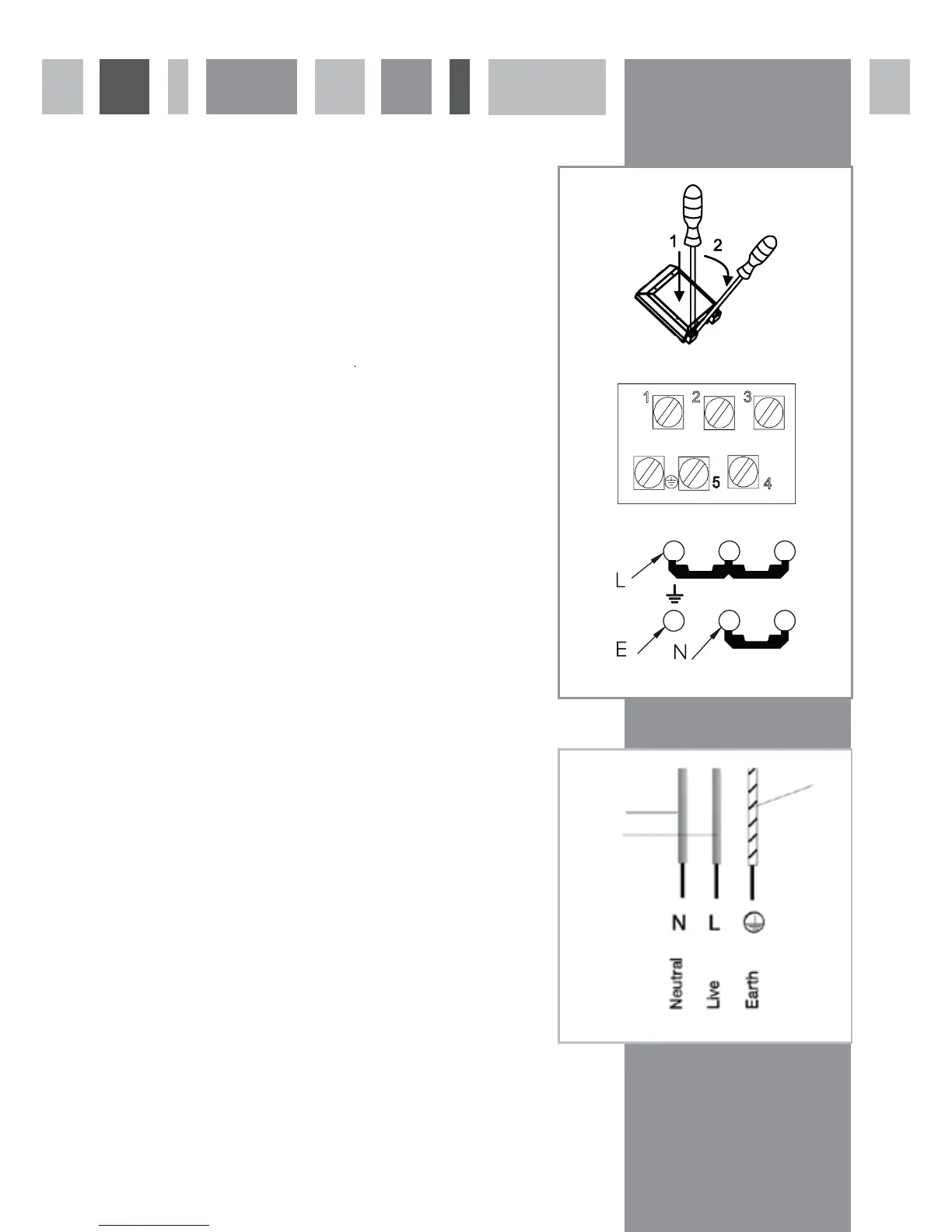

fig. 4
Green/yellow
Blue
Brown
1
2 3
4

CDA DC740 Specifications

General

Grill	Yes
Oven size	Small
Oven type	Electric
Number of ovens	2
Total oven power	4000 W
Number of shelves	3 shelves
Oven net capacity	35 L
Total oven(s) interior capacity	- L
Oven 2 net capacity	50 L
Noise level	- dB
Control type	Rotary, Sensor
Product color	White
Control position	Front
Clock type	Electronic
Timer type	Digital
Current	20 A
AC input voltage	230-400 V
AC input frequency	50 Hz
Energy consumption (conventional)	- kWh

Weight and Dimensions

Depth	540 mm
Width	595 mm
Height	718 mm
Weight	43000 g
Installation compartment width	560 mm
Installation compartment height	720 mm
