LED Indicators

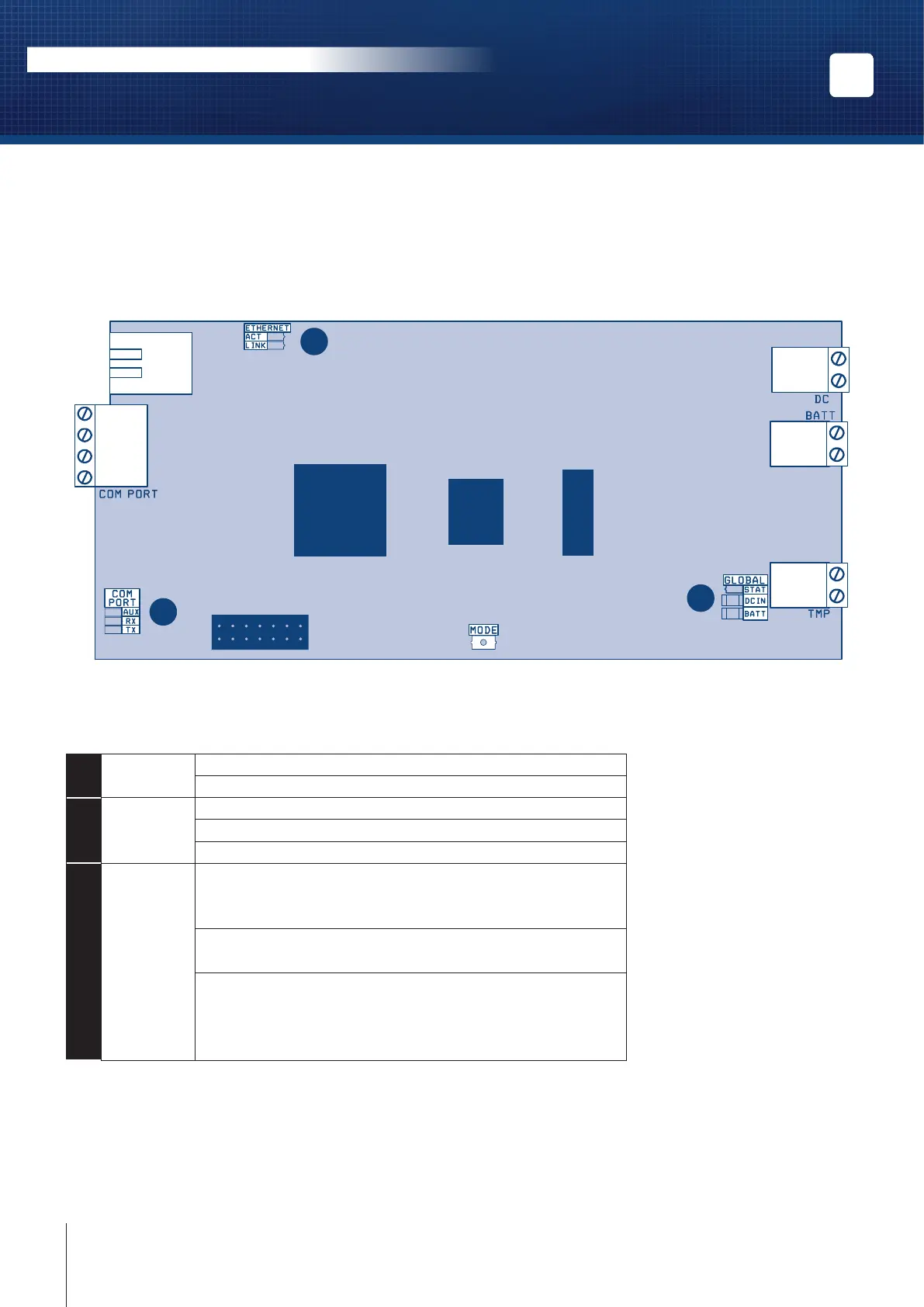

The ADH10 Controller has several status LEDs that are very useful to diagnose problems when using or
installing the system. Refer to the following image for the location of the LEDs on the PCB. All LEDs are
explained in the following pages.
LOCAL
BUS
POWER
SUPPLY
BATT.TAMPER
1
2
3
1
ETHERNET ACT: Data transmitted/received (Green LED ).
LINK: Ethernet network detected (Green LED ).
2
COM PORT AUX: Green LED, 12 V output power activated.
RX: Green LED ashing, Data received on local bus.
TX: Green LED ashing, Data transmitted on local bus.
3
GLOBAL STAT: - One ash per second: Firmware is operating normally.
- Rapid ash: Firmware is upgrading.
- LED Blink once per 3 second: Card enrollment mode
DC IN: - Green LED: is powered properly.
- Red LED: No primary power.
BATT: - Green LED: Primary power present and battery charging.
- LED O: Primary power present and battery full.
- Red LED: No battery or battery not properly connected.
- Flashing Red LED: Battery power is below 11.8VDC.
