CEA DIGITECH vision PULSE 3000 - Welding

47
PARAMETER SELECTION LED - V
The LED unit shows the WELDING VOLTAGE (
) switched on.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT4 panel and not on the DH panel.
3 - WELDING TIG LIFT
When welding takes place the fields in the displays show the same values as those included for pre-setting with the difference
that now, if possible, they are those measured.

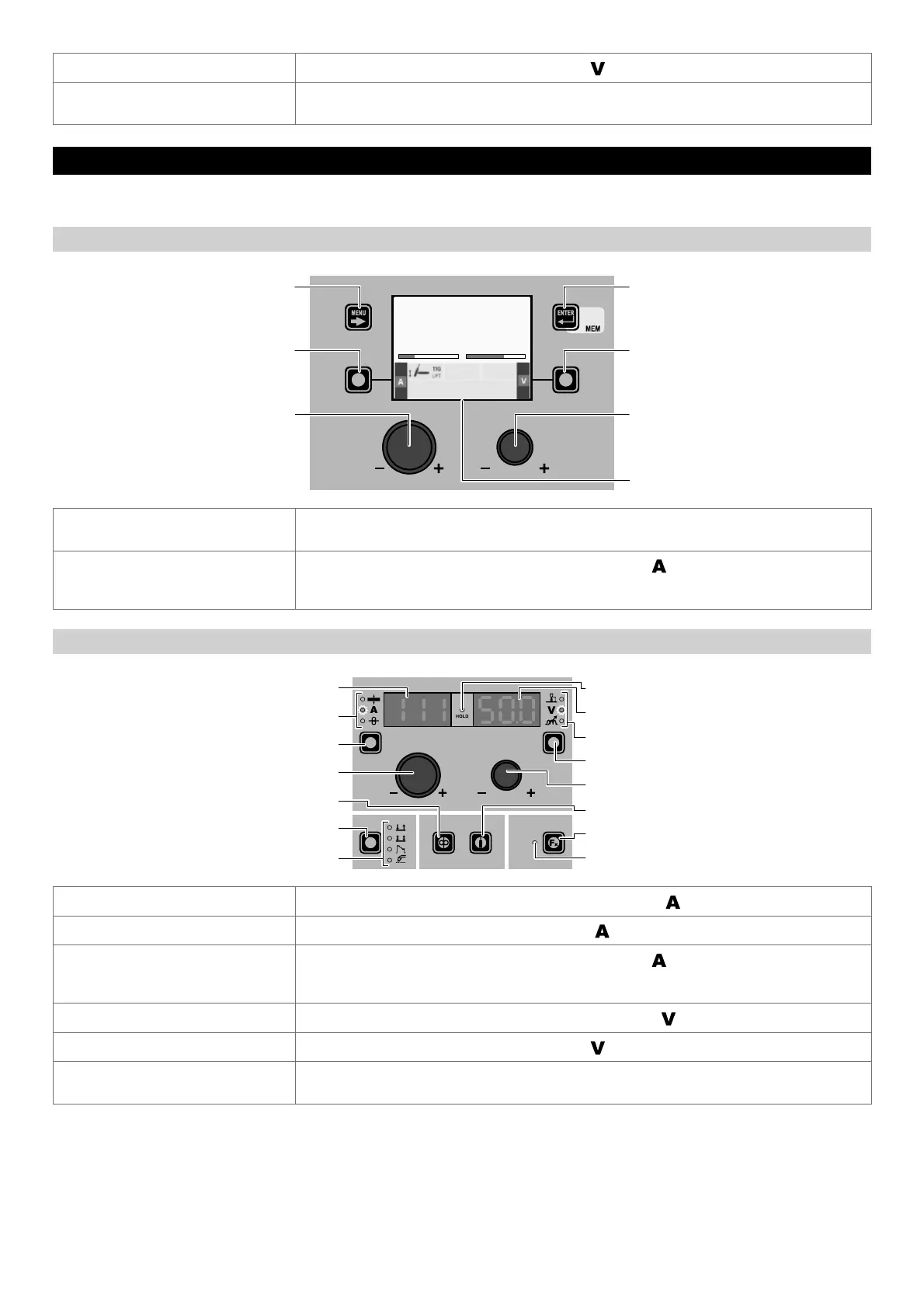

“DH” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
AV
111 50.0
MENU KEY
Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as
applicable.
ENCODER K
NOB - SX
Adjust the value of the parameter WELDING CURRENT (
).
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Displays the value of the parameter WELDING CURRENT (
).
PARAMETER SELECTION LED - A
The LED unit shows the WELDING CURRENT (
) switched on.
ENCODER K
NOB - A
Adjust the value of the parameter WELDING CURRENT (
).
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
PARAMETER DISPLAY S
CREEN - V
Displays the value of the parameter WELDING VOLTAGE (
).
PARAMETER SELECTION LED - V
The LED unit shows the WELDING VOLTAGE (
) switched on.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT4 panel and not on the DH panel.
