Cebora 961 - 5 Electrical Diagrams; Power Source Art. 961: See File Sche961.Pdf Enclosed at the End of the Manual; Waveforms; Power Source Output Voltage, Interrupted for Missing Pilot Arc Light on (Par. 3.3.4)

CEBORA S.p.A. 19
5 - ELECTRICAL DIAGRAMS
5.1
- Power source art. 961 : see file SCHE961.pdf enclosed at the end of the manual.
5.2 - Waveforms.

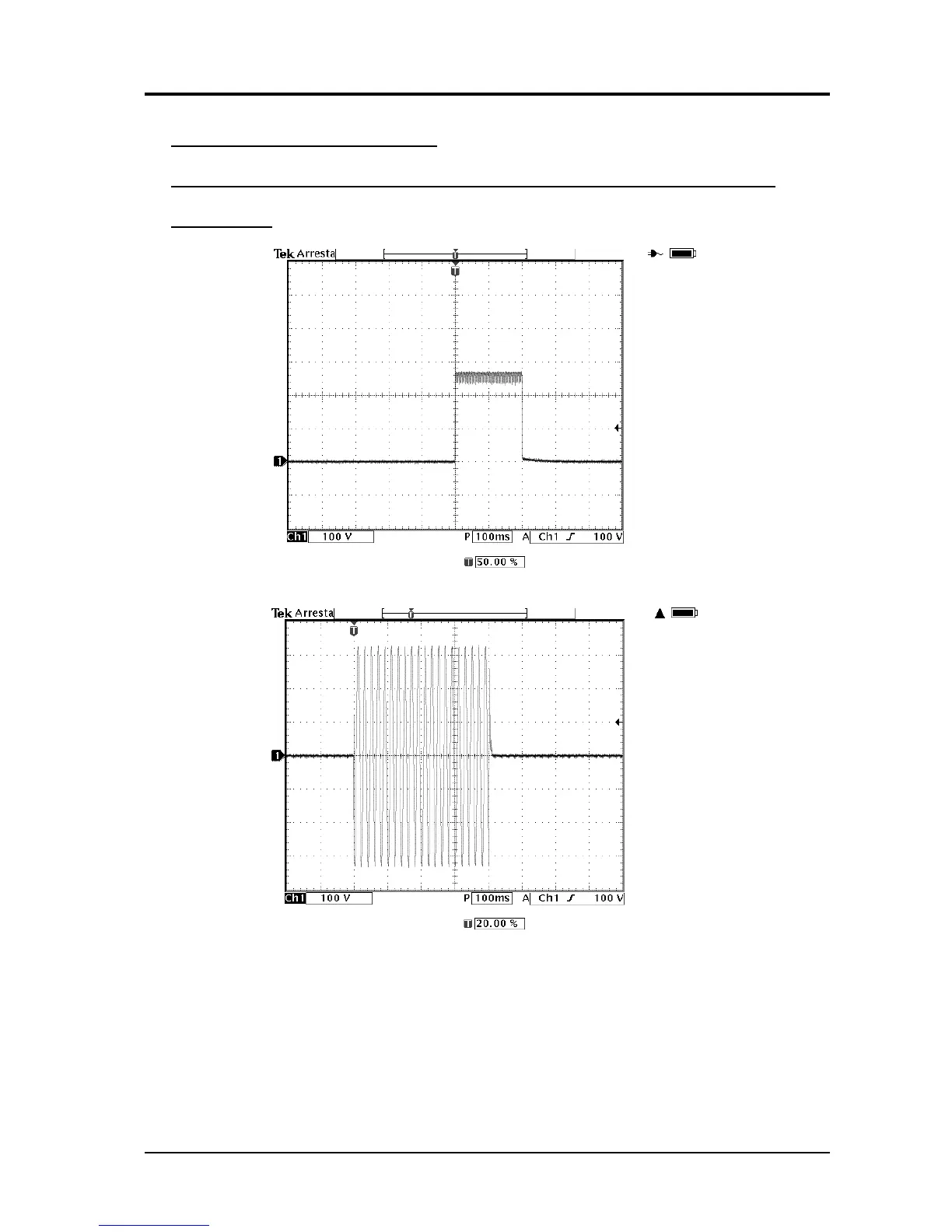

5.2.1 - Power source output voltage, interrupted for missing pilot arc light on (par. 3.3.4).
5.2.2 - Solenoid valve ELT (6) voltage supply, interrupted after 400 msec. approximately
for missing pilot arc light on (par. 3.3.4).
