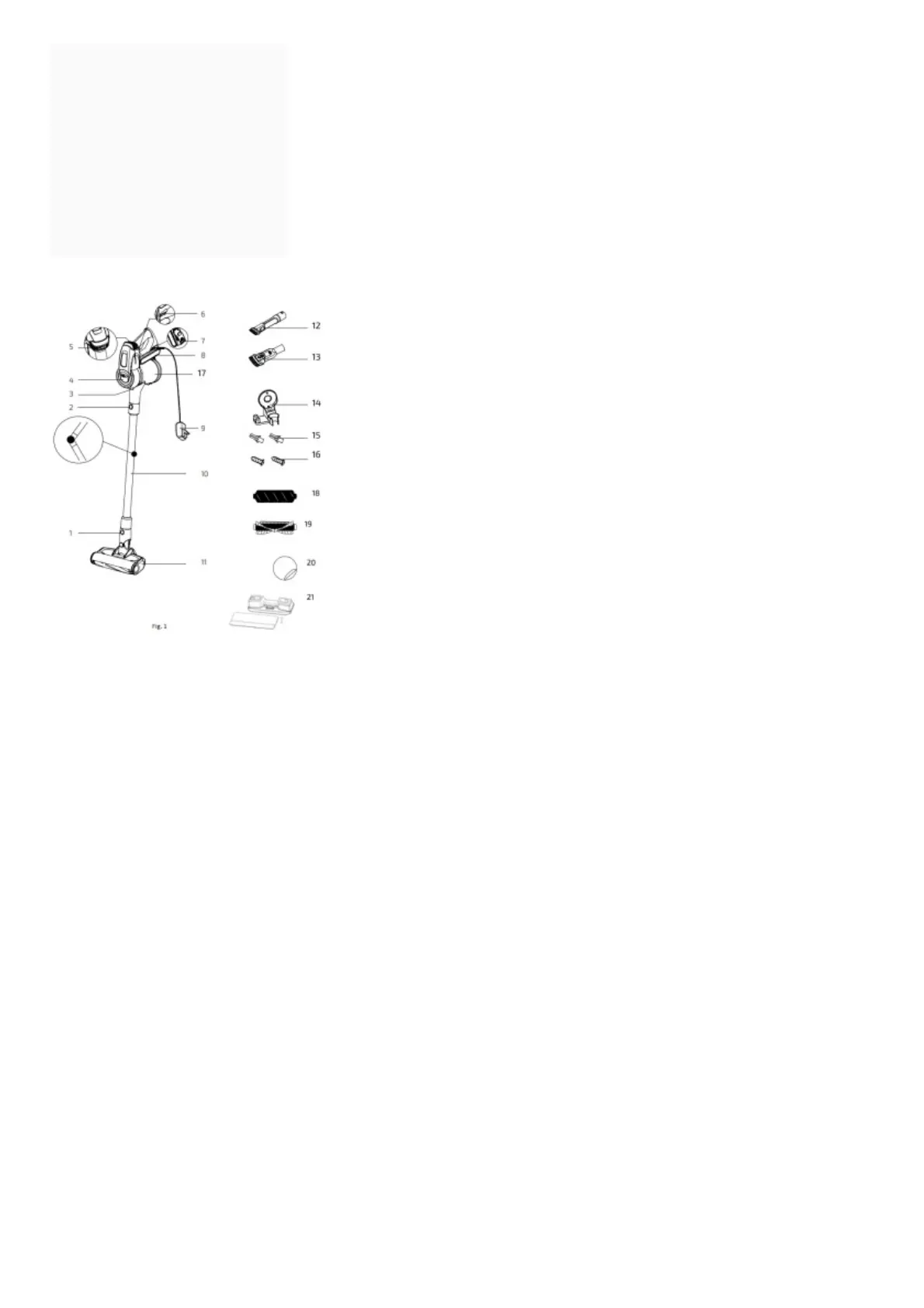

PARTS AND COMPONENTS
1. Suction base release button
2. Vacuuming tube release button
3. Dust tank release button
4. High-efficiency filter
5. Power push button
6. Power button
7. Power supply
8. Battery
9. Power adapter
10. Vacuuming Flex tube
11. Suction base
12. Narrow brush for furniture and corners
13. Wide brush for furniture and corners
14. Wall bracket
15. Wall plugs
16. Screws
17. Dust tank
18. Jalisco brush
19. Silicone and bristles brush
20. Adhesive for wall bracket
21. Water tank
BEFORE USE
Take the product out of the box.
Check for any visible damage, if any is observed, contact as soon as possible the Technical Support Service of Cecotec for advice or reparation.
PRODUCT ASSEMBLY
Vacuuming tube and suction base assembly.
To install the suction base into the vacuuming tube, align both of them making sure the tab on the suction base matches the guides on the tube, and introduce one into the other until they
are firmly fixed. To disassemble them, press the suction base release button and pull from the vacuuming tube while you hold the suction base.
Note: When assembling these 2 parts, make sure the handle and the brush are facing the same direction.
Use the Flex tube to reach and clean the most difficult areas and dirt. To bend the tube, press the Flex button.
Fig. 2
