cecotec 500 X - TROUBLESHOOTING; TECHNICAL SPECIFICATIONS

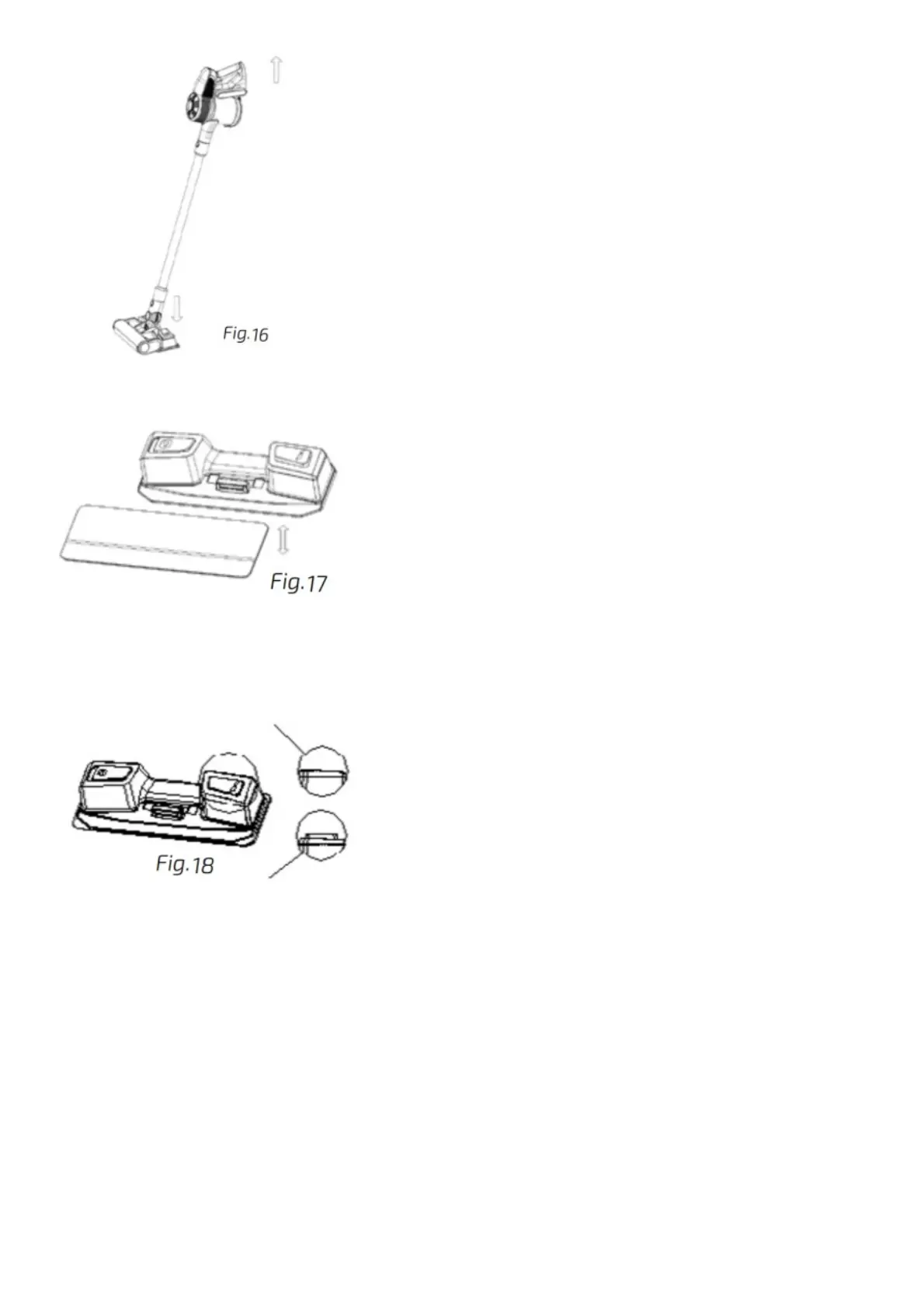

Installing the mop cloth
Place the mop cloth on the ground with the Velcro facing upwards.
Align the mop cloth with the Velcro strips on the water tank and attach it.
Fig. 17
Water emission
Fig. 18
When using this product for the first time, make sure the water tank lid is not fully open. When not in use, pay attention to the water emission push button and to the tank lid, as water leak
may occur when the water tank is full.
To activate water emission, the water emission push button must be pressed, and to stop water emission, the push button must be released as shown on the following figure:
Note: If the vacuum cleaner is not going to be used for a long period of time, make sure to remove the water tank and to empty the remaining water. Do not expose it to direct sunlight or to
damp environments. Removing the mop cloth
To remove the mop cloth, just hold it with your hand and pull form it to detach it from the water tank.
Cleaning and maintenance /Cleaning the tank
To clean the water tank, fill the tank with clean water, shake it and then empty it.
The mop is washable; therefore, it is suggested to wash it after every use.
Replace the cloth after 20-30 uses, depending on the use.
When the mop cloth is used for a long time, it is possible that the water output is affected. This can be avoided by cleaning both cloth and water tank regularly.
TROUBLESHOOTING
Problem Possible reason
The motor does not operate.
No battery.
The vacuuming tube, brush, battery, suction base or handheld vacuum cleaner are not
assembled in place.
Charge the vacuum cleaner.
Check that the components and the handheld vacuum cleaner are assembled
correctly.
Suction power level is very low.
The dust tank is full. Filters are dirty or blocked. Air inlet of the vacuuming tube or
suction base are blocked.
Empty the dust tank. Clean or replace the filter. Clean the dirt attached to the
brush.
The operating time after charging has decreased.
It has not been enough charged.
Battery is damaged or too old.
Charge the battery completely.
Replace the battery.
Note: For any further doubt, please contact the official Technical Support Service of Cecotec.
TECHNICAL SPECIFICATIONS
