Celerity UNIT 1661 - Page 22

17

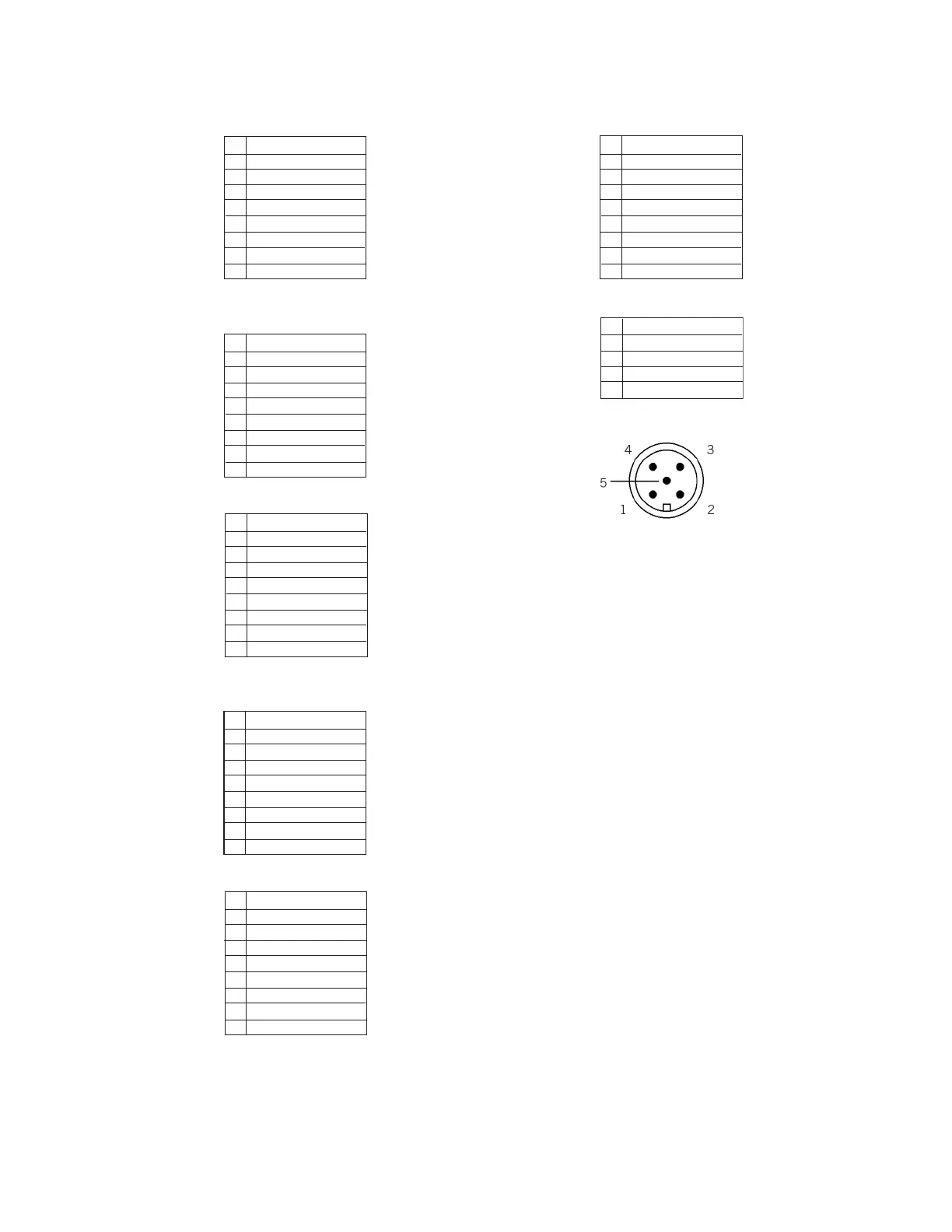

9 PIN "D" STEC CONNECTOR (UDV9)
1
2
3
4
5
6
7
8
9
Purge/Clo
se-
Output (0-5 VDC)
+15 VDC
Power Common
-15 VDC
Setpoint (0-5 VDC)
Signal Common
Signal Common
VTP -10 VDC
9 PIN "D" STEC 7350 COMPATIBLE PINOUT
(UDM9/U
DY9/UDZ9)
1
2
3
4
5
6
7
8
9
Purge/Close-
Output (0-5 VDC)
+
15 VDC
Signal Common
-15 VDC
Setpoint (0-5 VDC)
AZ Alarm
VTP
AZ Disable
9 PIN "D" PORTER CONNECTOR (UDR9)
1
2
3
4
5
6
7
8
9
Open
Output
Setpoint
Power Common
Valve Test Point
-15 VDC
+15 VDC
Signal Common
Shield
9 PIN "D" STEC UDS CONNECTOR (UDQ9/UDW9/UDO9)
W/INTERCONNECTED GROUNDS
1
2
3
4
5
6
7
8
9
Purge/Close-
Output (0-5 VDC)
+15 VDC
Power/Signal Common
-15 VDC
Setpoint (0-5 VDC)
Power/Signal Common
Power/Signal Common
VTP -15 – 0 VDC
9 PIN "D" PROFIBUS CONNECTOR (UDP9)
1
2
3
4
5
6
7
8
9
Protective Ground
Reserved for Power
Recv/Transmit-Data-P
Control-P
Data Gnd.
Voltage Plus
Reserved for Power
Recv/Transmit-Data-N
Control-N
9 PIN "D" CONNECTOR (UDG9)
1
2
3
4
5
6
7
8
9
Val
ve Control
Output (0-5 VDC)
+15 VDC
Power Common
-15 VDC
Setpoint (0-5 VDC)
Signal Common
RS485 DX+
RS485 DX-
DEVICENET CONNECTOR
1
2
3
4
5
Drain
V+ 11-25 VDC
V-
CAN-H
CAN-L
©2005 Celerity
, Inc.
#199-001-0006 REV
.F 4/05
