3.8 Fittings Options
The fittings available for these units are:
- Swagelok
®
, VCR
®
, VCO
®
- C-seal and W-seal surface-mount
- Ultraseal, Buttweld and Specials
Not all fittings are available for all gases and ranges. Fitting options will vary according to the
MFC model.
4. POWER SUPPLIES
Celerity manufactures a series of analog and digital power supplies. These are capable of
monitoring and/or controlling from 1 to 5 mass flow controllers or meters simultaneously. Call
Celerity Customer Service for further information.
5. PRODUCT DRAWINGS
You can access and download a product drawing for any specific model of mass flow controller
(MFC) via www.celerity.net (http://www.celerity.net/html/products/technical_data/drawings).
6. PRODUCT SPECIFICATIONS
You can access and download the exact product specifications for any specific model, via
www.celerity.net (http://www.celerity.net/html/products/literature/literature.html)
6.1 MFC side can label
MFC side can labels carry a detailed listing of all information about a specific MFCs statistics
as built at the factory.

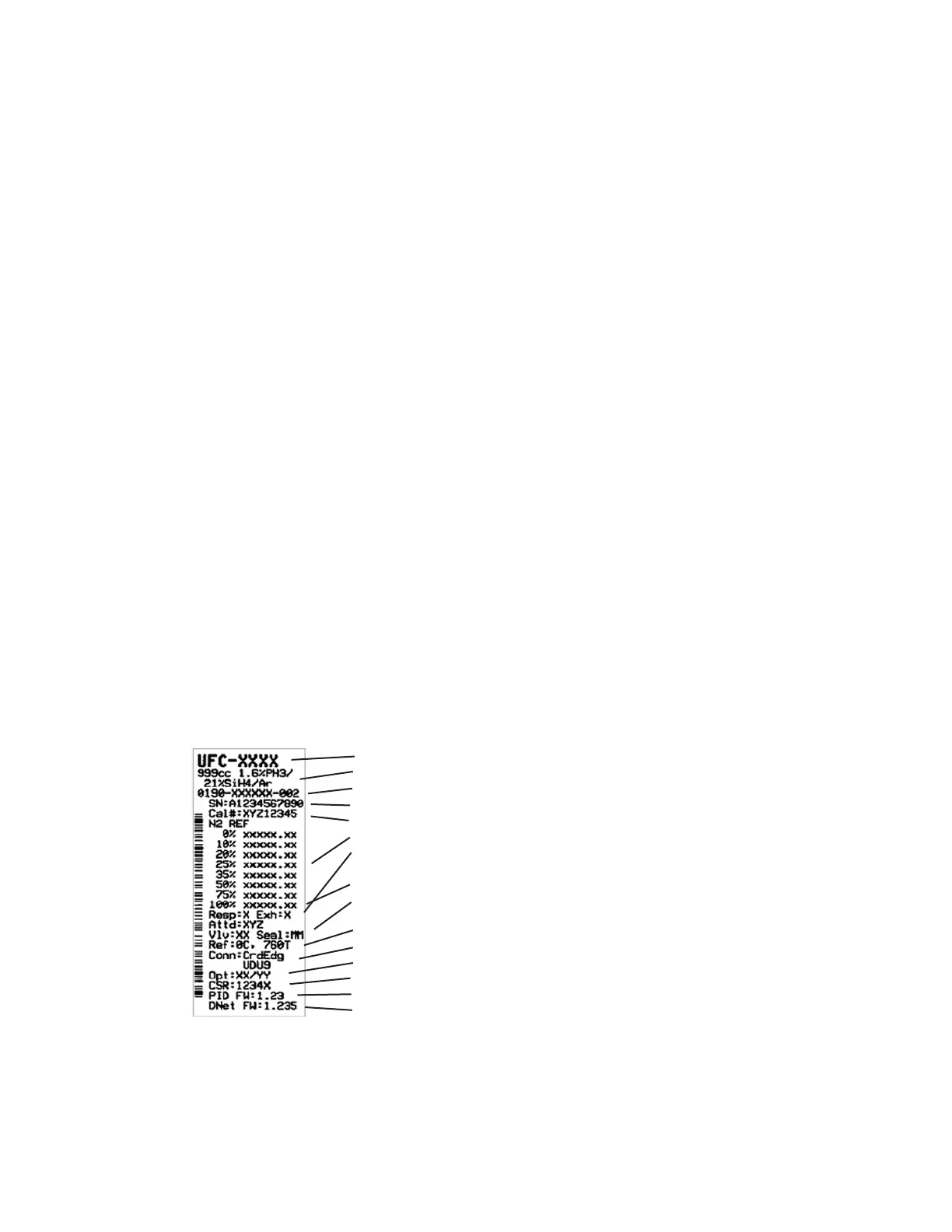

Figur
e 1. MFC Side Can Label with Explanations
1. MFC Model Number
2. Nameplate Gas and Range
3. Customer Part Number
4. Serial Number
5. Calibration reference for traceability
6. N2 Calibration Refer
ence
7. Response Speed-Exhaust Condition
(Atmospher
e or V
acuum)
8. Operating Attitude
9. Valve Type (NC/NO)
Seal (and Seat) Material
10. Refer
ence T
emperatur
e and Pr
essure
11. Electrical Connector Types
12. Options (Auto Shutoff/Auto Zero)
13. Customer Special Request Number
14. Main Firmware Revision
15. DeviceNet Firmware Revis
©2005 Celerity
, Inc.
#199-001-0006 REV
.F 4/05
