Azimuth clutch
To change the azimuth clutch tension, place the clutch rod into the RA clutch adjusting ring shown in Figure 3-10. To
tighten the clutch turn the rod counter-clockwise when looking down on the telescope. The clutch rod allows for about
110º of motion which is more than enough motion to adjust the range of clutch tensions needed. There are stops placed on
the RA clutch ring. This will prevent you from over tightening the system.

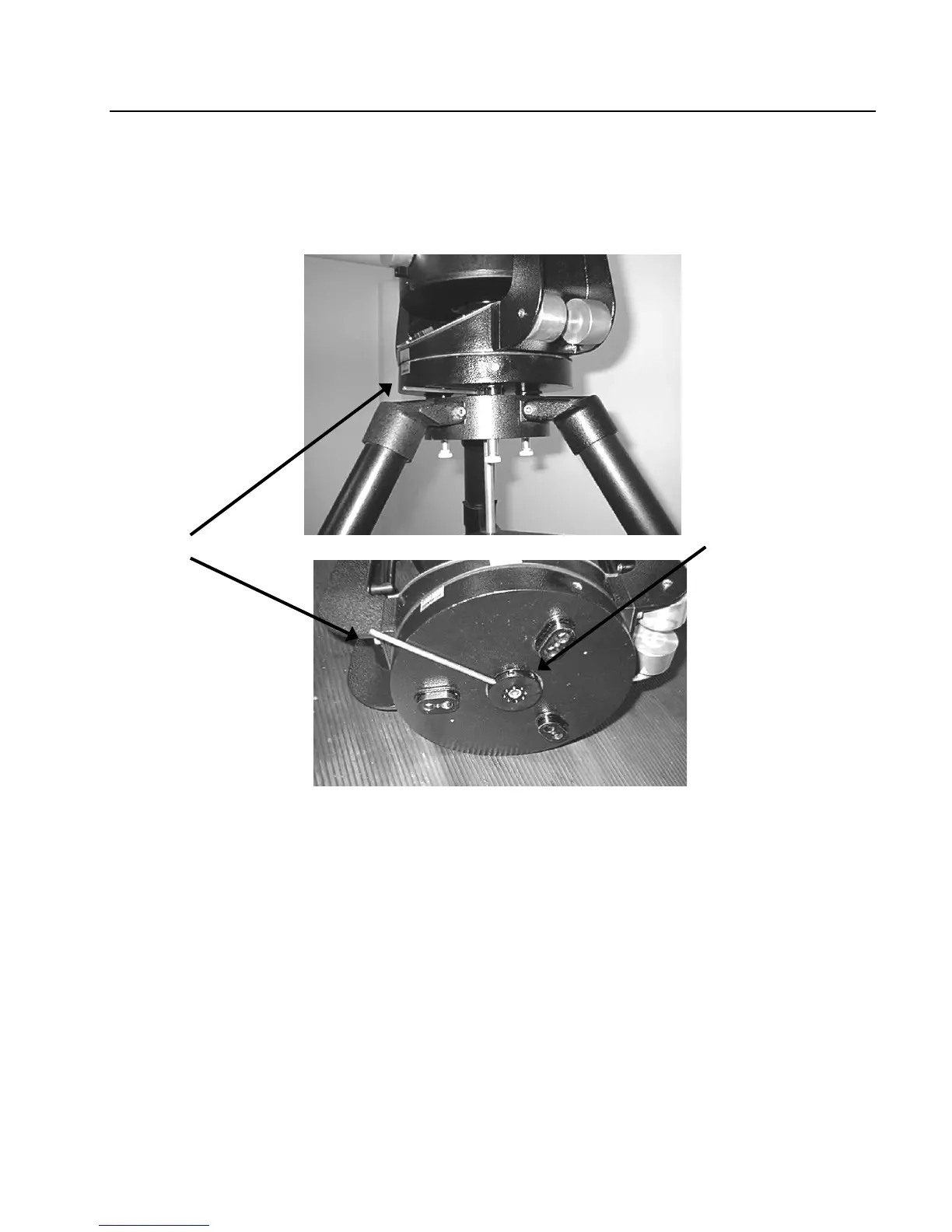

Figure 3-10
The azimuth clutch adjustment location shown in two views, side and from underneath the
drive base.
Clutch Rod RA Clutch Adjusting Ring
