Side Mount

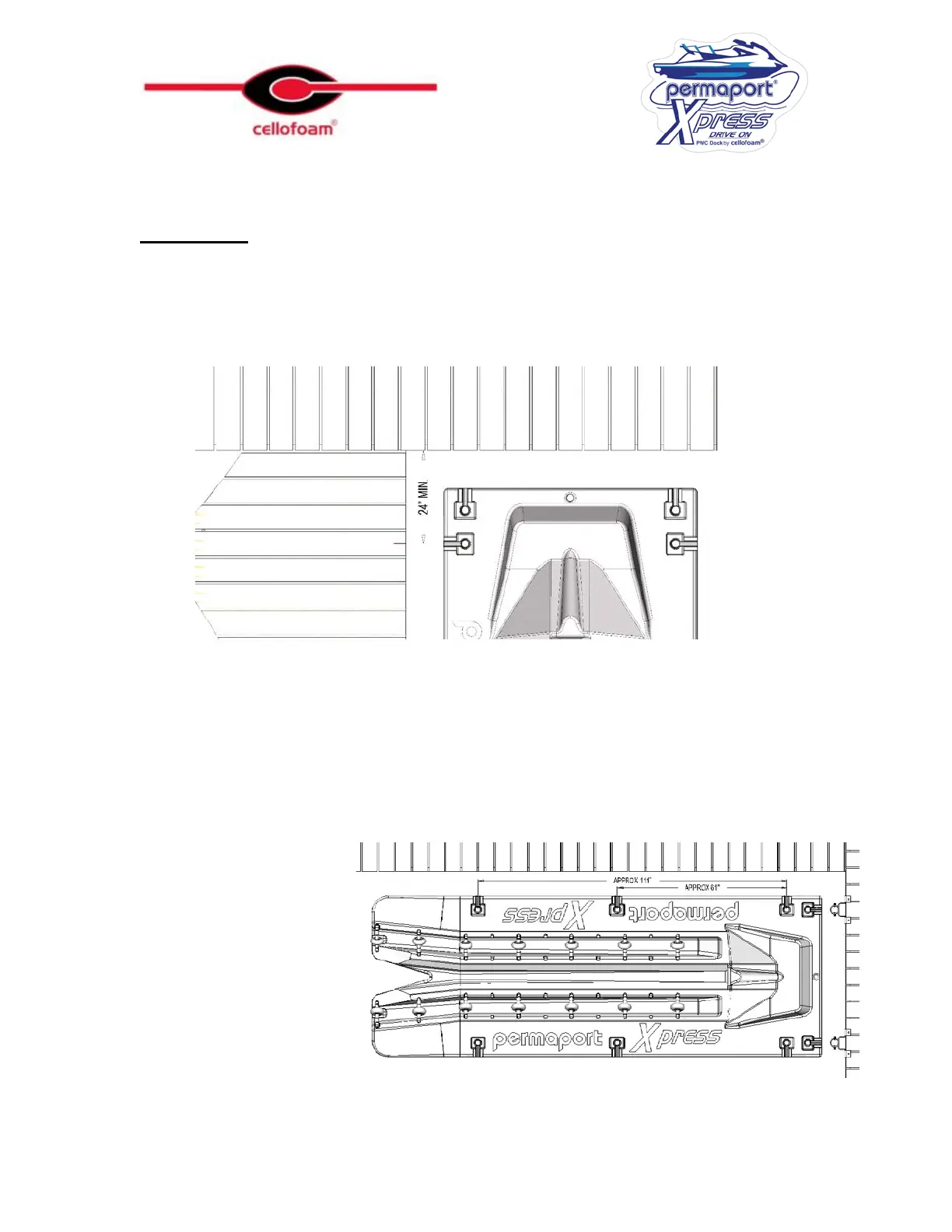

Determine the position that the
Xpress
is to be attached and mark a line on the stringer
representing the center of the forward attachment point. This MUST be a minimum of 24”
from any adjoining dock at the front.
There are two options for the rear attachment, the one toward the rear is the preferential
position but the position in the center of the
Xpress
is acceptable if the dock configuration
makes it necessary to use that position.
After deciding on the second position to be used, it is necessary to take an actual dimension
from the
Xpress
in order to determine the exact position for installing the dock brackets.
Measure the exact
dimension between the
centers of the holes.
Having determined that
dimension, mark a line on
the dock as shown. Do not
use the approximate
dimensions.
