3. Installation and Connection
14B3.1 312BThe Imager Head and Cable Installation
143BTo use the tool, the imager head and cable must be connected to the
display unit. To connect the cable to the display unit, make sure the
key and slot (Fig. 4) are properly aligned. Once they are aligned, slide
the connecting sleeve up to the threads on the cable, and finger-tighten
to hold the connection firmly in place.

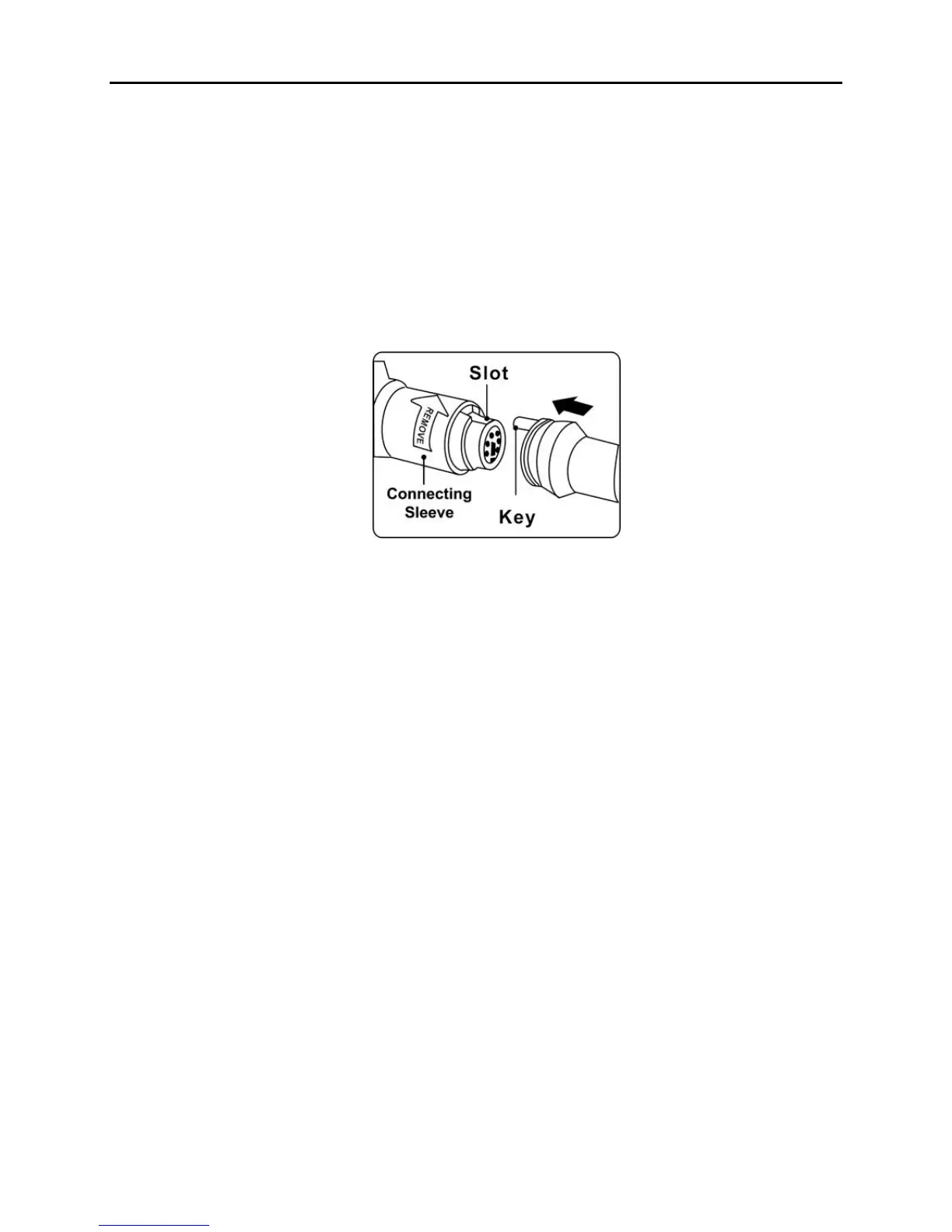

Fig. 4
